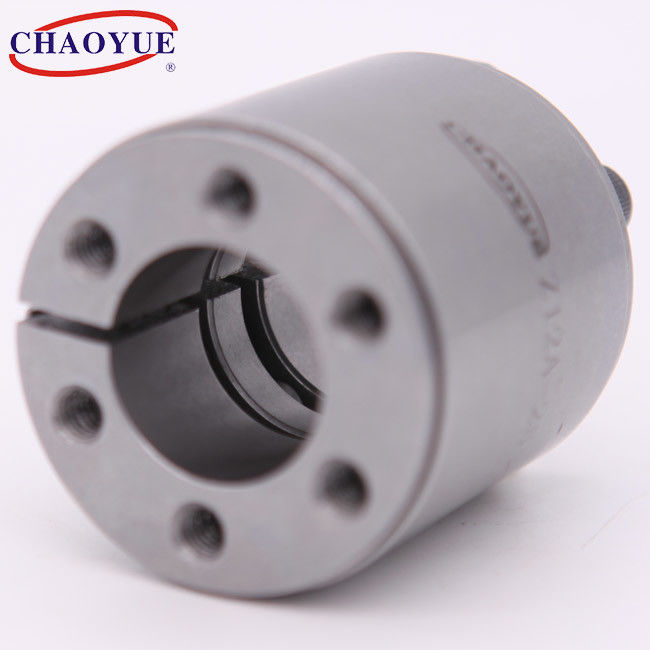

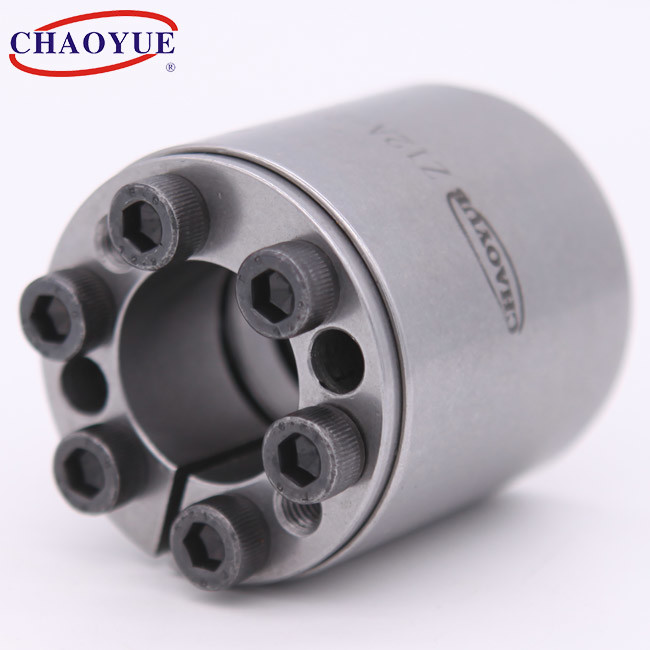

124mm Thickness Keyless Locking Assembly

124mm Thickness Keyless Locking Assembly
124mm Thickness Keyless Locking Assembly 124mm Thickness Keyless Locking Assembly

124mm Thickness Keyless Locking Assembly

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z12C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 30.00 - 1500.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 70 - 600 Mm Outer Diameter: 110 - 695 Mm
Thickness: 60 - 155 Mm Torque: 4.25 - 731.6 KN.m
Bolt: M10 - M22 Weight: 2.3 - 108 Kg
Highlight:

124mm thickness Keyless Locking Assembly

,

220mm ID Keyless Locking Assembly

,

124mm thickness keyless shaft locking devices

Product Description

Z12C Torque Transmission Keyless Locking Assembly Device



124mm Thickness Keyless Locking Assembly 0





Mounting Example



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Torque
[kN·m]
70 110 70 60 50 M10 8 121 4.25 115 64 49 2.3
80 120 70 60 50 M10 10 152 6.1 125 73 49 2.5
90 130 70 60 50 M10 11 167 7.5 122 74 49 2.7
100 145 82 70 60 M12 10 177 8.81 97 60 69 4.1
110 155 82 70 60 M12 10 177 9.74 89 56 69 4.4
120 165 82 70 60 M12 11 193 11.6 89 58 69 4.8
130 180 91 79 65 M12 14 247 16.06 93 61 69 6.3
140 190 91 79 65 M12 15 264 18.5 93 62 69 6.6
150 200 91 79 65 M12 15 264 19.86 87 59 69 7.8
160 210 91 79 65 M12 16 290 23.27 87 60 69 9.4
170 225 106 92 78 M14 15 363 30.87 92 63 108 10.7
180 235 106 92 78 M14 15 363 32.75 87 60 108 11.3
190 250 116 102 88 M14 16 387 36.8 78 50 108 14.6
200 260 116 102 88 M14 18 484 48.45 92 59 108 15.3
220 285 124 108 96 M16 15 505 55.57 83 54 168 20.2
240 305 124 108 96 M16 20 673 80.75 100 67 168 21.8
260 325 124 108 96 M16 21 705 91.67 97 66 168 23.4
280 355 130 110 96 M20 15 877 122.8 114 75 369 30
300 375 130 110 96 M20 15 887 133 106 72 369 31.2
320 405 156 136 124 M20 20 1181 189 102 67 369 48
340 425 156 136 124 M20 20 1181 200.8 96 64 369 51
360 455 177 155 140 M22 20 1455 262 98 62 495 69
380 475 177 155 140 M22 20 1455 277.7 93 60 495 73
400 495 177 155 140 M22 22 1595 319 97 65 495 76
420 515 177 155 140 M22 24 1751 367.8 100 68 495 80
440 535 177 155 140 M22 24 1952 429.5 98 73 550 81
460 555 177 155 140 M22 24 1952 448.4 94 70 550 85
480 575 177 155 140 M22 25 2040 489.7 94 70 550 88
500 595 177 155 140 M22 25 2040 508 90 68 550 91
520 615 177 155 140 M22 28 2273 591 97 73 550 95
540 635 177 155 140 M22 28 2273 614 93 71 550 98
560 655 177 155 140 M22 30 2437 682.6 96 74 550 101
580 675 177 155 140 M22 30 2437 707.4 93 72 550 104
600 695 177 155 140 M22 30 2437 731.6 90 70 550 108
