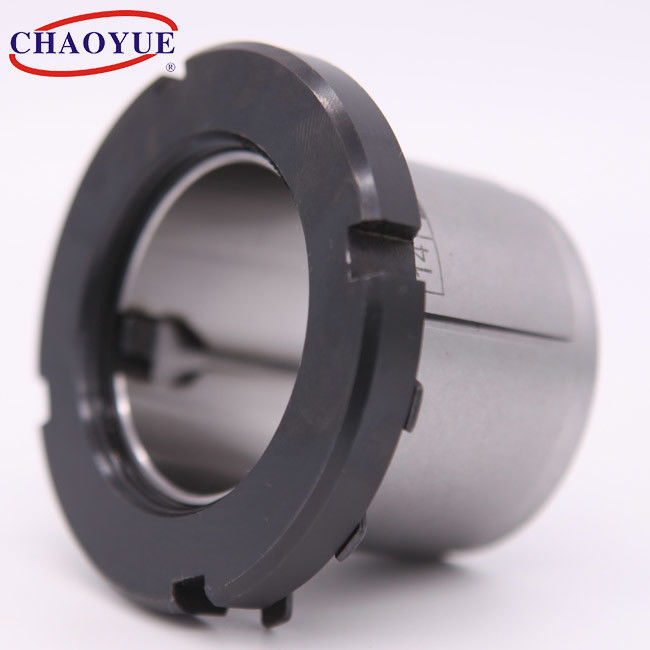

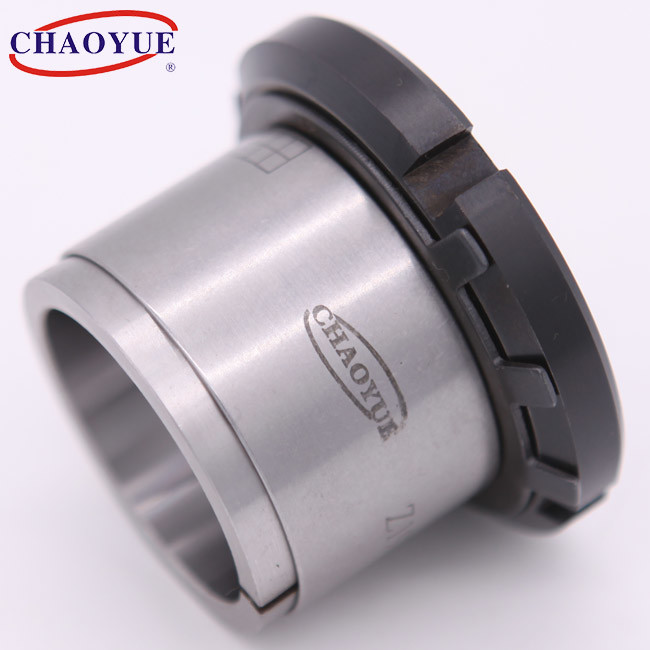

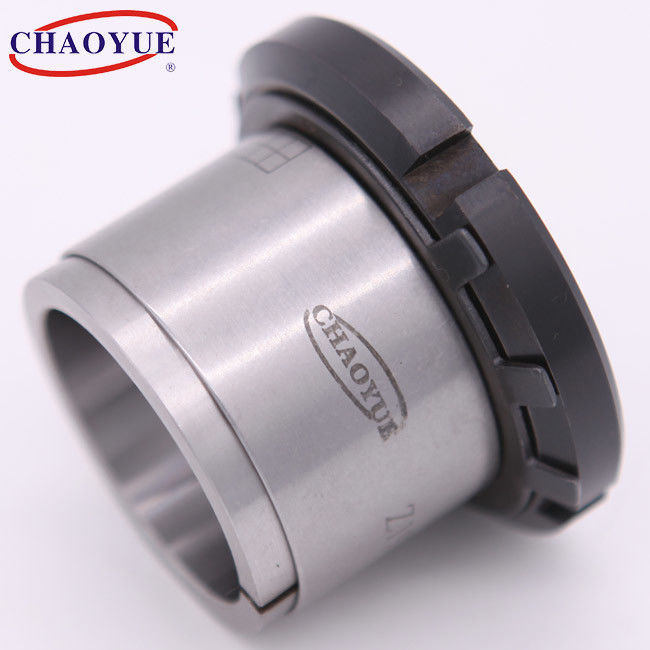

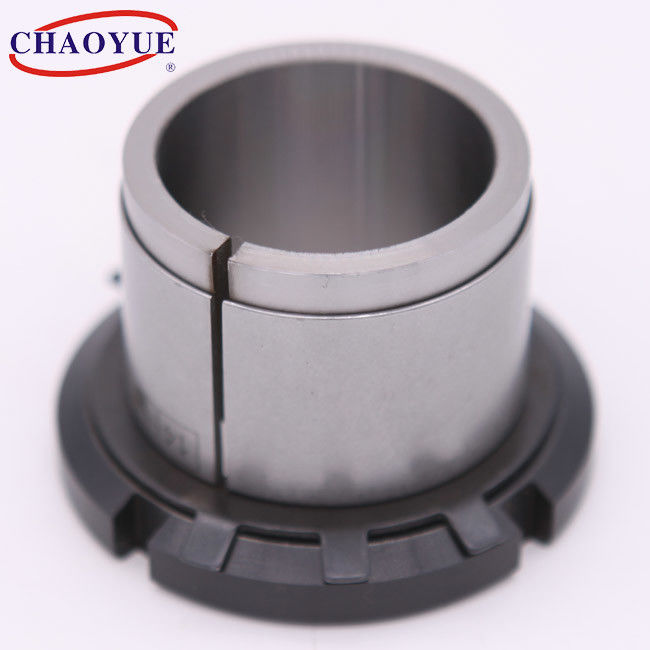

30kN Shaft Clamping Elements

30kN Shaft Clamping Elements
30kN Shaft Clamping Elements 30kN Shaft Clamping Elements 30kN Shaft Clamping Elements

30kN Shaft Clamping Elements

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z19B
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 7.00 - 25.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 14 - 60 Mm Outer Diameter: 25 - 70 Mm
Thickness: 30 - 52 Mm Torque: 64 - 1360 N.m
Bolt: M20 - M65 Weight: 0.08 - 0.42 Kg
Highlight:

680N.m Shaft Clamping Elements

,

30kN Shaft Clamping Elements

,

30kN keyless taper lock bushings

Product Description

Z19B Light Power Lock Transmission Mechanical Locking Device



30kN Shaft Clamping Elements 0





Mounting Example

30kN Shaft Clamping Elements 1





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D E H B d1 Axial Force
[kN]		 Torque
[N·m]
14 25 32 30 20 M20 x 1 9.1 64 85 45 95 0.08
15 25 32 30 20 M20 x 1 9.1 70 80 45 95 0.08
16 25 32 30 20 M20 x 1 9.1 73 75 45 95 0.07
17 25 32 32 20 M22 x 1 9.1 80 70 45 95 0.07
18 30 32 32 20 M22 x 1 9.1 83 65 40 95 0.12
19 30 38 32 20 M25 x 1.5 11 105 75 45 160 0.11
20 30 38 32 20 M25 x 1.5 11 112 70 45 160 0.1
22 35 45 36 25 M30 x 1.5 14.5 163 70 45 220 0.17
24 35 45 36 25 M30 x 1.5 14.5 178 65 45 220 0.15
25 35 45 36 25 M30 x 1.5 14.5 185 60 45 220 0.14
28 40 52 42 30 M35 x 1.5 14.5 250 55 40 340 0.22
30 40 52 42 30 M35 x 1.5 17.5 270 50 40 340 0.19
32 42 55 44 30 M36 x 1.5 21.5 350 60 45 340 0.2
32 45 58 44 30 M40 x 1.5 21.5 350 60 45 480 0.27
35 45 58 44 30 M40 x 1.5 21.5 390 55 45 480 0.22
38 50 65 45 30 M45 x 1.5 26 500 60 45 680 0.3
40 50 65 45 30 M45 x 1.5 26 520 60 50 680 0.25
45 55 70 46 30 M50 x 1.5 30 680 60 50 870 0.29
48 60 75 46 30 M55 x 2 35 840 60 50 970 0.37
50 60 75 46 30 M55 x 2 35 880 60 50 970 0.32
55 65 80 46 30 M60 x 2 37.5 1030 60 50 1100 0.34
60 70 85 52 30 M65 x 2 45 1360 65 55 1300 0.42
