China One Way Overrunning Clutch manufacturer

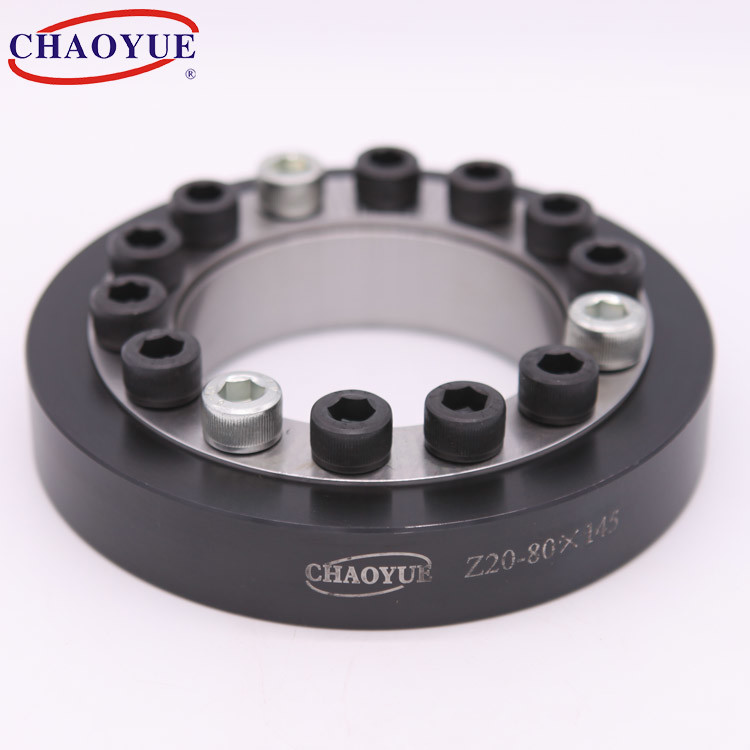

160mm Inner Diameter Sleeve Expansion Joint

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z20
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 10.00 - 105.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 25 - 160 Mm Outer Diameter: 60 - 260 Mm
Thickness: 20 - 38 Mm Torque: 0.19 - 23 KN.m
Bolt: M6 - M12 Weight: 0.37 - 9.2 Kg
High Light:

160mm Inner diameter sleeve expansion joint

,

260mm outer diameter sleeve expansion joint

,

160mm Inner diameter climax keyless bushing

Product Description

Z20 Mechanical Connection Shaft Clamping Element Locking Device

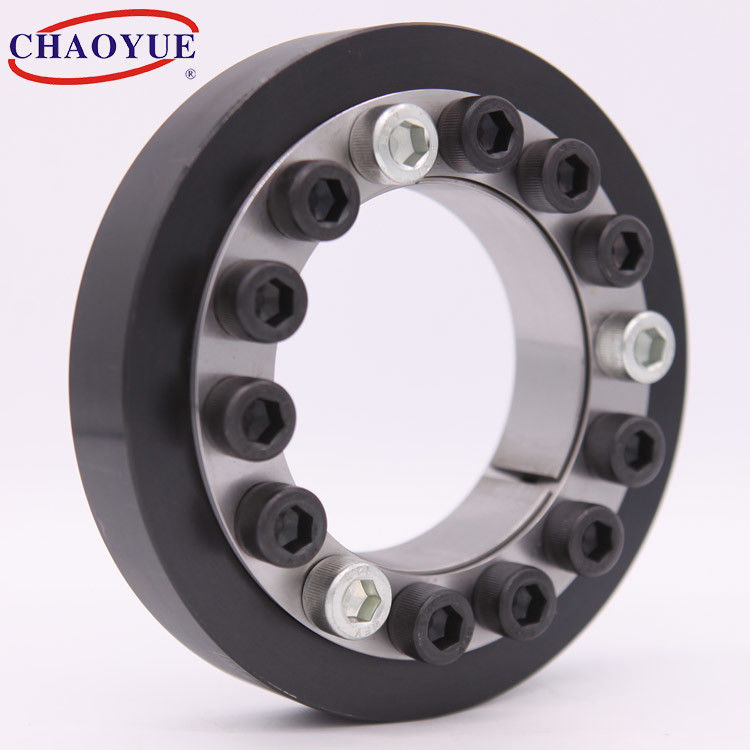

160mm Inner Diameter Sleeve Expansion Joint 0






Mounting Example

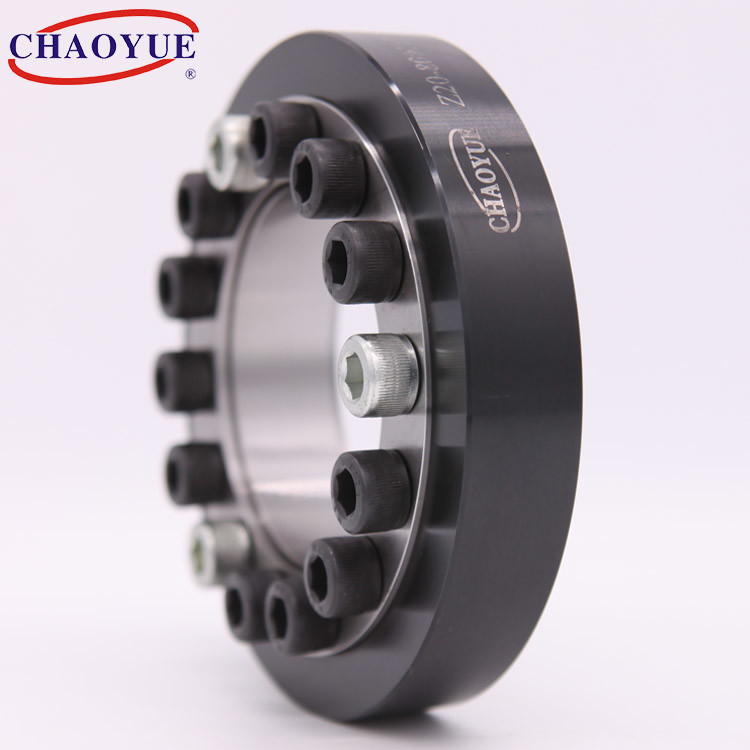

160mm Inner Diameter Sleeve Expansion Joint 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]
Weight
[kg]
d dw D L L1 L2 d1 n Torque
[kN·m]
Axial Force
[kN]
25 18 60 26 20 17 M6 9 0.19 21 17 0.37
25 20 60 26 20 17 M6 9 0.255 25 17 0.37
30 20 65 26 20 17 M6 9 0.205 20 17 0.42
30 22 65 26 20 17 M6 9 0.27 24 17 0.42
30 24 65 26 20 17 M6 9 0.34 28 17 0.42
35 25 72 26 20 17 M6 12 0.365 29 17 0.48
35 28 72 26 20 17 M6 12 0.49 35 17 0.48
35 30 72 26 20 17 M6 12 0.585 39 17 0.48
40 30 78 26 20 17 M6 15 0.555 37 17 0.54
40 32 78 26 20 17 M6 15 0.59 37 17 0.54
40 34 78 26 20 17 M6 15 0.71 42 17 0.54
40 35 78 26 20 17 M6 15 0.77 44 17 0.54
45 35 92 32 24 20 M8 12 0.96 55 41 0.92
45 36 92 32 24 20 M8 12 1.03 57 41 0.92
45 38 92 32 24 20 M8 12 1.2 63 41 0.92
50 38 98 32 24 20 M8 12 1.01 53 41 1
50 40 98 32 24 20 M8 12 1.16 58 41 1
50 42 98 32 24 20 M8 12 1.32 63 41 1
55 42 105 32 24 20 M8 14 1.33 63 41 1.1
55 45 105 32 24 20 M8 14 1.59 70 41 1.1
55 48 105 32 24 20 M8 14 1.88 78 41 1.1
60 48 110 32 24 20 M8 14 1.6 67 41 1.2
60 50 110 32 24 20 M8 14 1.78 71 41 1.2
60 52 110 32 24 20 M8 14 1.89 73 41 1.2
70 55 138 38 28 24 M10 14 2.93 106 83 2.3
70 58 138 38 28 24 M10 14 3.37 116 83 2.3
70 60 138 38 28 24 M10 14 3.69 123 83 2.3
80 62 145 38 28 24 M10 14 3.14 101 83 2.4
80 65 145 38 28 24 M10 14 3.57 110 83 2.4
80 68 145 38 28 24 M10 14 4.02 118 83 2.4
80 70 145 38 28 24 M10 14 4.35 124 83 2.4
90 70 160 38 28 24 M10 16 4.09 117 83 2.8
90 75 160 38 28 24 M10 16 4.89 130 83 2.8
90 78 160 38 28 24 M10 16 5.42 139 83 2.8
100 78 180 45 33 26 M12 14 5.98 153 145 3.8
100 80 180 45 33 26 M12 14 6.37 159 145 3.8
100 82 180 45 33 26 M12 14 6.49 158 145 3.8
100 85 180 45 33 26 M12 14 7.16 168 145 3.8
110 85 190 45 33 26 M12 14 6.18 145 145 4.1
110 88 190 45 33 26 M12 14 6.8 154 145 4.1
110 90 190 45 33 26 M12 14 7.24 160 145 4.1
110 95 190 45 33 26 M12 14 8.38 176 145 4.1
120 95 205 45 33 26 M12 16 8.25 173 145 4.7
120 100 205 45 33 26 M12 16 9.45 189 145 4.7
120 105 205 45 33 26 M12 16 10.74 204 145 4.7
140 110 230 50 38 34 M12 22 12.86 233 145 7.4
140 115 230 50 38 34 M12 22 14.44 251 145 7.4
140 120 230 50 38 34 M12 22 16.14 269 145 7.4
160 125 260 50 38 34 M12 26 17.13 274 145 9.2
160 130 260 50 38 34 M12 26 18.99 292 145 9.2
160 135 260 50 38 34 M12 26 20.94 310 145 9.2
160 140 260 50 38 34 M12 26 23 328 145 9.2
