M14 Bolt Keyless Locking Assembly

M14 Bolt Keyless Locking Assembly
M14 Bolt Keyless Locking Assembly M14 Bolt Keyless Locking Assembly

M14 Bolt Keyless Locking Assembly

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z23
Payment & Shipping Terms:
Minimum Order Quantity: 5 pc
Price: USD 10.00 - 113.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 19 - 180 Mm Outer Diameter: 47 - 235 Mm
Thickness: 39 - 84 Mm Torque: 0.54 - 50.4 KN.m
Bolt: M6 - M14 Weight: 0.35 - 13.68 Kg
Highlight:

235mm OD Keyless Locking Assembly

,

M14 Bolt Keyless Locking Assembly

,

M14 Bolt expansion joint sleeve

Product Description

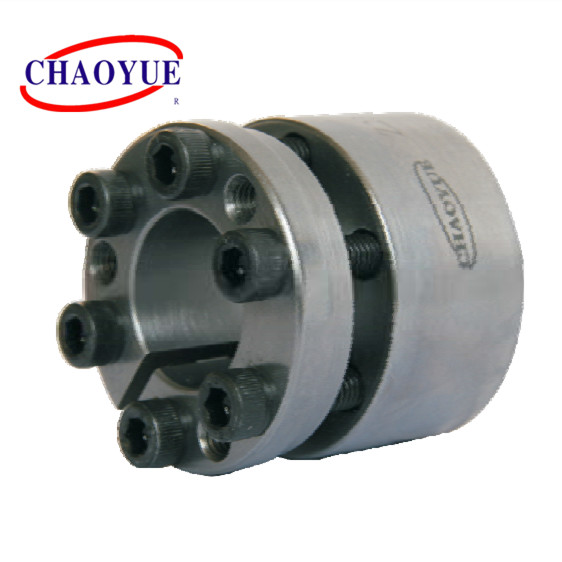

Z23 Power Lock Device Locking Assembly For Food Machinery



M14 Bolt Keyless Locking Assembly 0



Mounting Example

M14 Bolt Keyless Locking Assembly 1

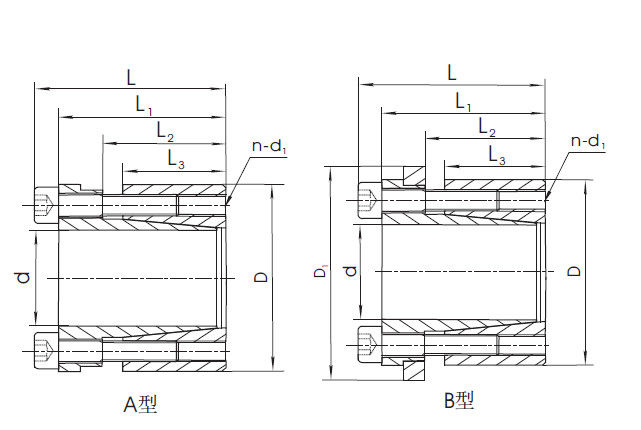

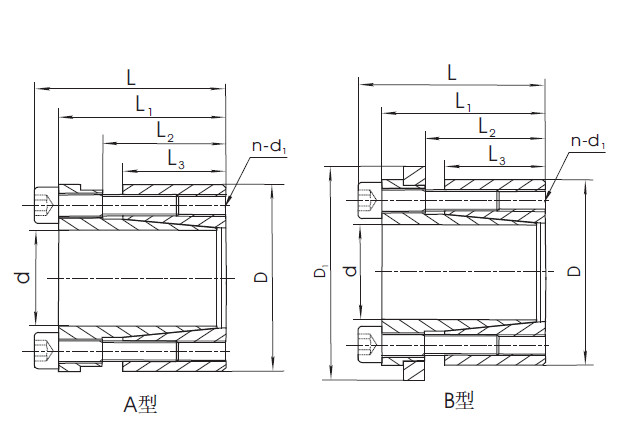

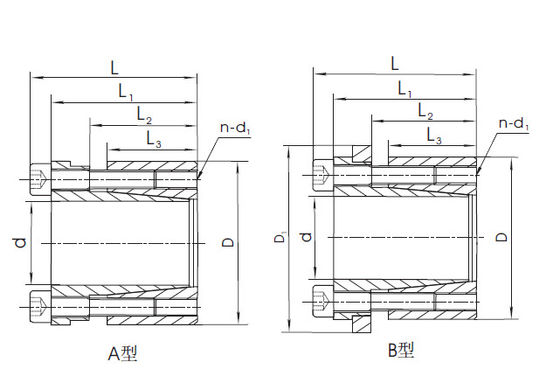

Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 L3 D1 d1 n Axial Force
[kN]		 Torque
[kN·m]
19 47 45 39 30 26 53 M6 6 54 0.54 17 0.35
20 47 45 39 30 26 53 M6 6 54 0.6 17 0.36
22 47 45 39 30 26 53 M6 6 54 0.6 17 0.44
24 50 45 39 30 26 56 M6 6 54 0.65 17 0.47
25 50 45 39 30 26 56 M6 6 54 0.68 17 0.48
28 55 45 39 30 26 61 M6 6 54 0.78 17 0.55
30 55 45 39 30 26 61 M6 6 54 0.82 17 0.76
32 60 45 39 30 26 66 M6 9 82 1.31 17 0.79
35 60 45 39 30 26 66 M6 9 82 1.44 17 0.81
38 65 45 39 30 26 71 M6 9 82 1.52 17 0.87
40 65 45 39 30 26 71 M6 9 82 1.64 17 0.94
42 75 55 47 35 30 81 M8 6 101 2.13 41 1.02
45 75 55 47 35 30 81 M8 6 101 2.28 41 1.06
48 80 55 47 35 30 86 M8 6 101 2.43 41 1.7
50 80 55 47 35 30 86 M8 6 101 2.53 41 1.76
55 85 55 47 35 30 91 M8 9 152 4.18 41 1.89
60 90 55 47 35 30 96 M8 9 152 4.56 41 1.98
65 95 55 47 35 30 101 M8 9 152 4.96 41 2.15
70 110 77 67 46 40 116 M10 7 186 6.5 83 2.24
75 115 77 67 46 40 121 M10 7 186 7 83 3.07
80 120 77 67 46 40 126 M10 7 186 7.4 83 3.35
85 125 77 67 46 40 131 M10 8 213 9 83 3.59
90 130 77 67 46 40 136 M10 8 213 9.6 83 5.04
95 135 77 67 46 40 141 M10 10 267 12.6 83 5.38
100 145 89 77 52 46 151 M12 7 270 13.3 145 5.81
110 155 89 77 52 46 161 M12 7 270 14.7 145 6.06
120 165 89 77 52 46 171 M12 8 309 18.4 145 7.61
130 180 89 77 52 46 186 M12 10 342 20.5 145 8.32
140 190 98 84 59 51 196 M14 8 373 26.1 230 9.56
150 200 98 84 59 51 206 M14 10 467 35.1 230 10.15
160 210 98 84 59 51 216 M14 10 467 37.4 230 11.23
170 225 98 84 59 51 231 M14 12 560 47.6 230 12.45
180 235 98 84 59 51 241 M14 12 560 50.4 230 13.68
