212mm Thickness One Way Sprag Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZF-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 165.00 - 1300.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T,
Supply Ability: 500 pcs per month

Detail Information

Product Name: CKZF-B Bearing Supported Non Contact Overrunning Clutch Bearing 100 - 310 Mm Inner Diameter: 30 - 130 Mm
Outer Diameter: 100 - 310 Mm Thickness: 68 - 212 Mm
Torque: 250 - 15100 N.m Weight: 2.3 - 70.0 Kg
High Light:

212mm Thickness one way sprag clutch

,

15100 N.m one way sprag clutch

,

212mm Thickness high torque one way bearing

Product Description

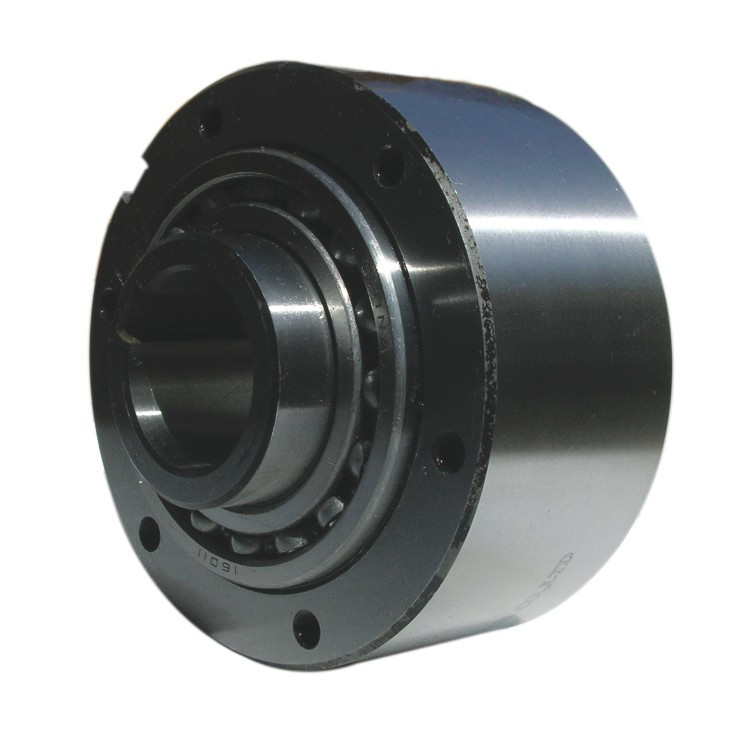

CKZF-B Bearing Supported Non Contact Overrunning Clutch Bearing 100 - 310 mm



Roller Clutch root inner yoke (star wheel) and the position of the inner wheel is divided into different alien star wheel are two, so-called conjugate plane of the yoke means and the cylindrical bore of the cylinder, while the star wheel having a concave receiving rollers Slot parts. In order to facilitate processing and to ensure accuracy, the star wheel are widely used. Press the star wheel face different shape, can be divided into planar type, a logarithmic spiral type and surface type, three eccentric cylindrical surface. Wherein the planar processing is simple, widely used, but it does not vary with the wedge feeler roller wear and change the contact position change varies, but the processing is difficult; the degree of ease of processing and eccentric cylindrical surface, performance, life are living in the top Between the two [1].


Mounting Example

212mm Thickness One Way Sprag Clutch 0




212mm Thickness One Way Sprag Clutch 1



Type Nominal torque
[N.m]
Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]
Weight
[kg]
nmin nmax d
[H7]
D
[h7]
F D1 B C L n - M H bw x tw bn x tn
CKZF-B30100 250 780 6000 30 100 87 75 51 68 60.5 6 - M6 10 8 x 4.0 8 x 3.3 2.3
CKZF-B35110 416 740 6000 35 110 96 80 55 74 63 6 - M6 12 10 x 5.0 10 x 3.3 3.2
CKZF-B40125 590 720 5000 40 125 108 90 63 86 73 6 - M8 14 12 x 5.0 12 x 3.3 4.3
CKZF-B45130 650 665 4000 45 130 112 95 63 86 73 8 - M8 14 14 x 5.5 14 x 3.8 5.0
CKZF-B50150 1310 610 4000 50 150 132 110 73 94 86 8 - M8 14 14 x 5.5 14 x 3.8 7.5
CKZF-B55160 1480 600 3200 55 160 138 115 73 104 86 8 - M10 16 16 x 6.0 16 x 4.3 9.0
CKZF-B60170 1900 490 3200 60 170 150 125 91 114 105 10 - M10 16 18 x 7.0 18 x 4.4 12.7
CKZF-B70190 2700 480 2400 70 190 165 140 108 134 124 10 - M10 16 20 x 7.5 20 x 4.9 14.5
CKZF-B80210 4502 450 2400 80 210 185 160 106 144 124 10 - M10 16 22 x 9.0 22 x 5.4 19.0
CKZF-B90230 7000 420 2000 90 230 206 180 114 158 143 10 - M12 20 22 x 9.0 25 x 5.4 29.5
CKZF-B100270 11400 420 2000 100 270 240 210 121 182 153 10 - M16 24 28 x 10 28 x 6.4 42.5
CKZF-B130310 15100 415 2000 130 310 278 240 169 212 194 12 - M16 24 32 x 11 32 x 7.4 70.0
