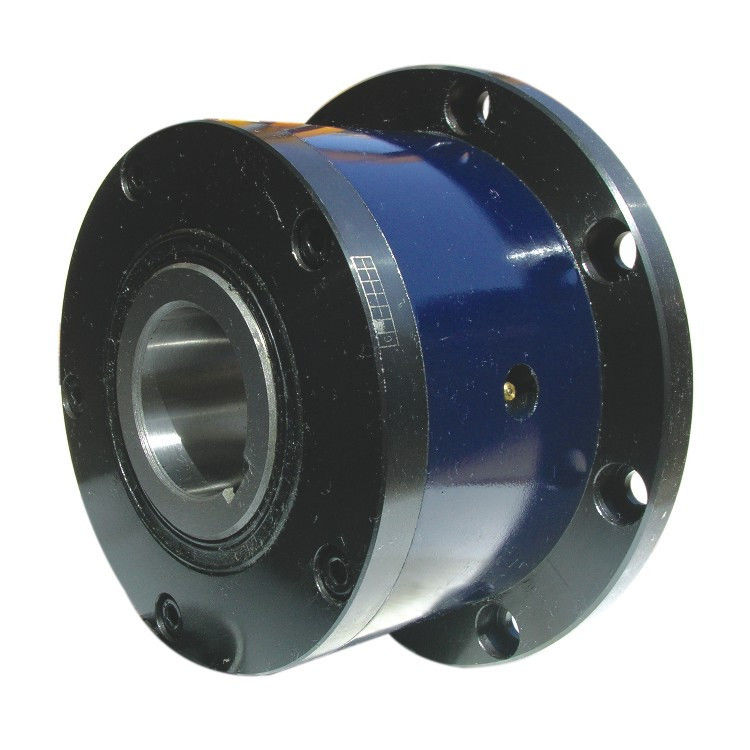

2700N.m Sprag Overrunning Clutch

Product Description

70 - 214 Mm Machinecal Freewheel One Way Clutch Bearing With Keyway

Main specifications

TCL model wedge-type one-way clutch, containing bearings and oil seals. Lubricating oil is included in the factory. This model is mainly used in ultra-running speed clutch. When ordering, please indicate the direction of rotation of the inner ring from the A direction. Beyond the elastic coupling torque transfer should be less elastic than the nominal torque of the coupling. There must be no obvious vibration when the drive device with the clutch is running. Clutch cover installation must ensure that the application under cover.

advantage

DC type one-way clutch is a sprag retainer but no inner and outer rings. This model must be designed to meet customer's inner and outer bearing support axial and radial loads, with the grease and seal.

Actuating subspace irregular contact surface of tolerance must be within the range, the width of the outer ring and the inner ring of the contact surface is not smaller than the dimension "e", the contact surface can not have any grooves to ensure proper function.

Original provides a standard type of inner and outer rings.

If treated to manufacture hardened steel and the axis of the workpiece directly set into the wall of the machine.

Mounting Example
