| Inner Diameter: | 12 - 90 Mm | Outer Diameter: | 62 - 230 Mm |
|---|---|---|---|
| Thickness: | 44 - 160 Mm | Torque: | 44 - 11600 N.m |
| Weight: | 1.40 - 47.20 Kg | ||
| Highlight: | One Way Conveyor Belt Backstop,2100N.M Torque Conveyor Belt Backstop,2100N.M Torque cam clutch bearing |
||
Product Description

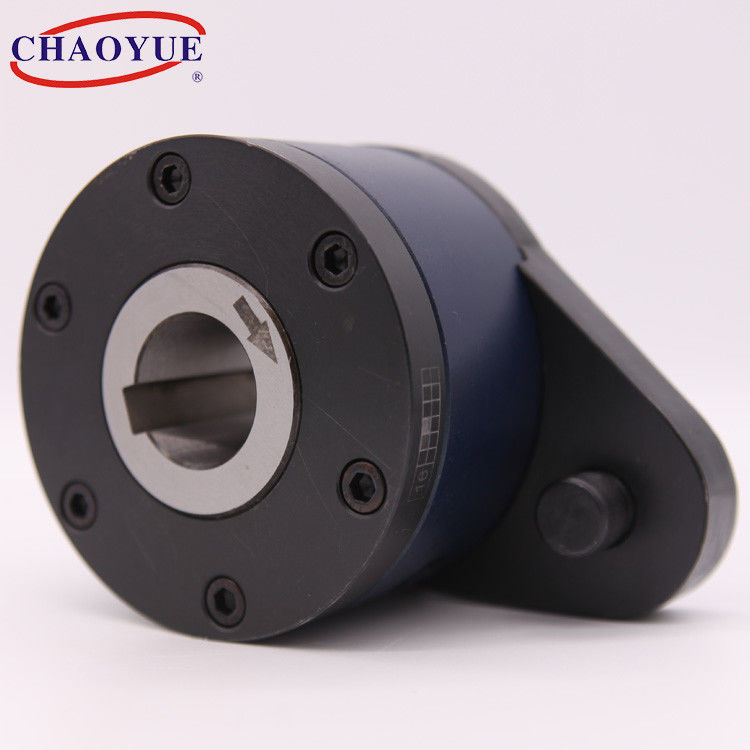

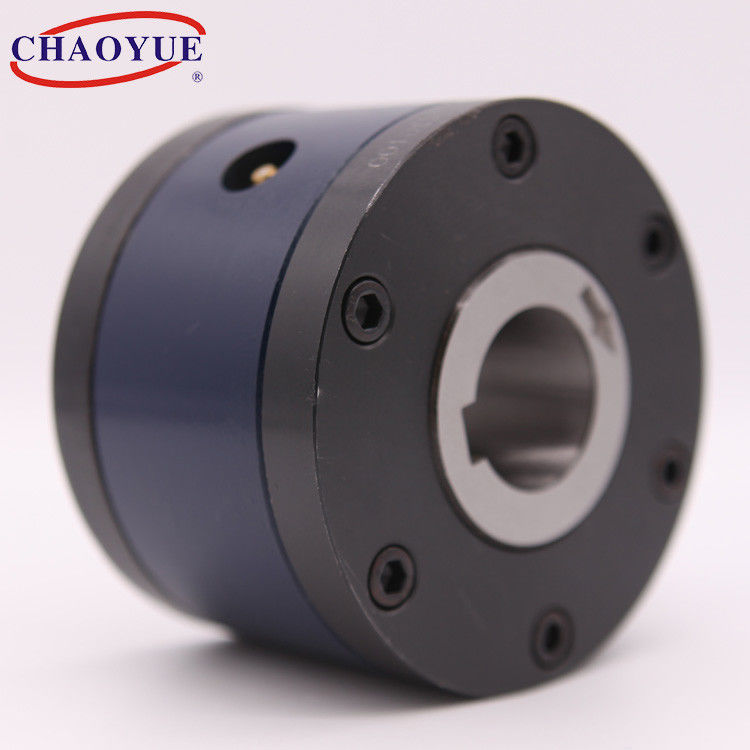

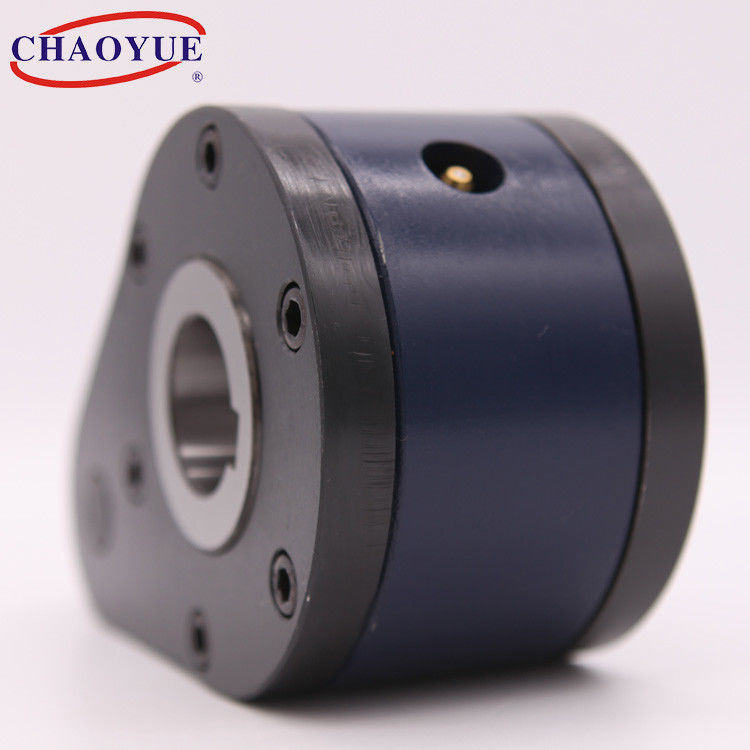

CKN GFR F2F3 One Way Cam Clutch Bearing Conveyor Backstop
Type CKN is sprag type freewheel, self contained, sealed and bearing supported.
The cover acts as a torque arm and has an integrated stop bolt. The stop bolt should go into a slot in a fixed part of the machine. The stop bolt must have a radial clearance of 1% of the bolt's diameter. The torque arm and bearing must not be priestesses in any way. The covers are easily fitted, allowing on site selection of rotation direction.
This type suitable for backstop clutch, such as conveyor, hosting equipment etc.
Mounting Example
| Type | Nominal torque [N.m] |
Inner Race Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Weight [kg] |
|||||||||
| d [H7] | D | B | C | E | H | L1 | L2 | d1 | bn x tn | ||||
| CKN1262 | 44 | 1200 | 12 | 62 | 42 | 44 | 44 | 91 | 10 | 14 | 10 | 4 x 1.8 | 1.4 |
| CKN1568 | 100 | 1200 | 15 | 68 | 52 | 54 | 47 | 93 | 10 | 14 | 10 | 5 x 2.3 | 1.8 |
| CKN2075 | 145 | 1000 | 20 | 75 | 58 | 60 | 54 | 109.5 | 10 | 14 | 12 | 6 x 2.8 | 2.3 |
| CKN2590 | 230 | 900 | 25 | 90 | 60 | 62 | 62 | 129 | 14 | 18 | 16 | 8 x 3.3 | 3.4 |
| CKN30100 | 400 | 800 | 30 | 100 | 68 | 70 | 68 | 142 | 14 | 18 | 16 | 10 x 3.3 | 4.5 |
| CKN35110 | 580 | 700 | 35 | 110 | 74 | 76 | 78 | 157 | 18 | 22 | 20 | 10 x 3.3 | 5.6 |
| CKN40125 | 820 | 600 | 40 | 125 | 86 | 88 | 85 | 174.5 | 18 | 22 | 20 | 12 x 3.3 | 8.5 |
| CKN45130 | 900 | 600 | 45 | 130 | 86 | 88 | 90 | 180 | 22 | 26 | 25 | 14 x 3.8 | 8.9 |
| CKN50150 | 1700 | 500 | 50 | 150 | 94 | 96 | 102 | 210 | 22 | 26 | 25 | 16 x 4.3 | 12.8 |
| CKN55160 | 2100 | 500 | 55 | 160 | 104 | 106 | 108 | 222 | 25 | 30 | 32 | 16 x 4.3 | 16.2 |
| CKN60170 | 2800 | 400 | 60 | 170 | 114 | 116 | 112 | 230 | 25 | 30 | 32 | 18 x 4.4 | 19.3 |
| CKN70190 | 4600 | 400 | 70 | 190 | 134 | 136 | 135 | 270 | 30 | 35 | 38 | 20 x 4.9 | 23.5 |
| CKN80210 | 6800 | 300 | 80 | 210 | 144 | 146 | 145 | 290 | 30 | 35 | 38 | 22 x 5.4 | 32 |
| CKN90230 | 11600 | 300 | 90 | 230 | 158 | 160 | 155 | 320 | 40 | 45 | 50 | 25 x 5.4 | 47.2 |
