1240 KN.M Keyless Taper Lock Bushings

1240 KN.M Keyless Taper Lock Bushings
1240 KN.M Keyless Taper Lock Bushings 1240 KN.M Keyless Taper Lock Bushings

1240 KN.M Keyless Taper Lock Bushings

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z12B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 30.00 - 1500.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 70 - 600 Mm Outer Diameter: 110 - 695 Mm
Thickness: 60 - 155 Mm Torque: 7.15 - 1240 KN.m
Bolt: M10 - M22 Weight: 2.3 - 108 Kg
Highlight:

155mm keyless taper lock bushings

,

1240 kN.m keyless taper lock bushings

,

1240 kN.m hub shaft connection

Product Description

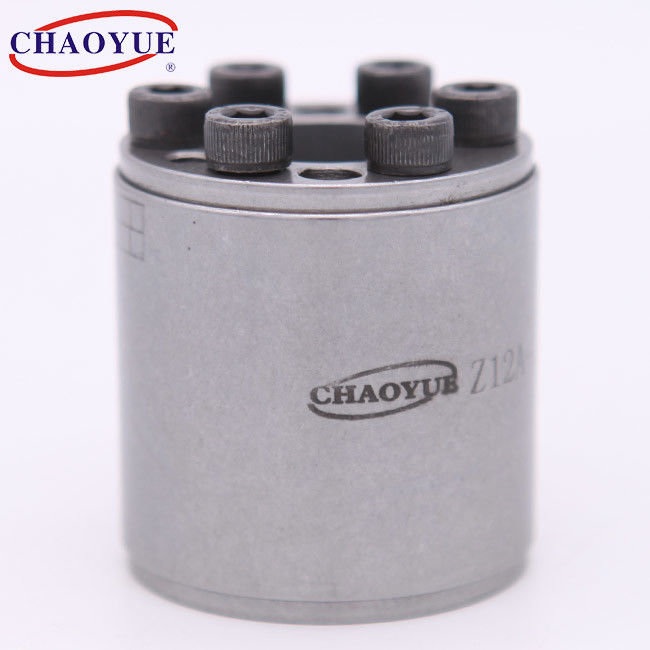

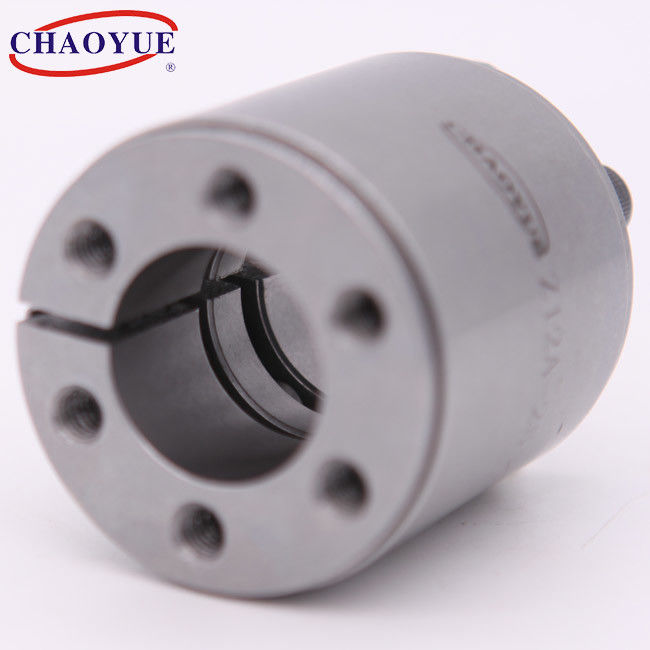

Z12B Keyless Shrink Sleeve Power Lock Assembly



1240 KN.M Keyless Taper Lock Bushings 0





Mounting Example





Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 d1 n Axial Force
[kN]		 Torque
[kN·m]
70 110 70 60 50 M10 8 204 7.15 194 107 83 2.3
80 120 70 60 50 M10 10 250 10.25 212 123 83 2.5
90 130 70 60 50 M10 11 280 12.6 207 125 83 2.7
100 145 82 70 60 M12 10 372 18.6 205 126 145 4.1
110 155 82 70 60 M12 10 372 20.5 187 118 145 4.4
120 165 82 70 60 M12 11 408 24.5 188 122 145 4.8
130 180 91 79 65 M12 14 520 33.8 197 128 145 6.3
140 190 91 79 65 M12 15 557 39 196 130 145 6.6
150 200 91 79 65 M12 15 557 41.8 183 123 145 7.8
160 210 91 79 65 M12 16 593 47.5 183 125 145 9.4
170 225 106 92 78 M14 15 764 65 193 133 230 10.7
180 235 106 92 78 M14 15 765 69 182 127 230 11.3
190 250 116 102 88 M14 16 815 77.5 163 103 230 14.6
200 260 116 102 88 M14 20 1020 102 194 124 230 15.3
220 285 124 108 96 M16 15 1060 117 174 113 355 20.2
240 305 124 108 96 M16 20 1410 170 212 140 355 21.8
260 325 124 108 96 M16 21 1480 193 205 138 355 23.4
280 355 130 110 96 M20 15 1650 232 213 141 690 30
300 375 130 110 96 M20 15 1650 549 198 134 690 31.2
320 405 156 136 124 M20 20 2210 354 191 125 690 48
340 425 156 136 124 M20 20 2210 376 180 119 690 51
360 455 177 155 140 M22 20 2750 496 185 118 930 69
380 475 177 155 140 M22 20 2750 524 175 113 930 73
400 495 177 155 140 M22 22 3010 602 183 122 930 76
420 515 177 155 140 M22 24 3300 694 190 127 930 80
440 535 177 155 140 M22 24 3300 728 166 123 930 81
460 555 177 155 140 M22 24 3300 760 159 118 930 85
480 575 177 155 140 M22 25 3440 830 159 119 930 88
500 595 177 155 140 M22 24 3440 861 153 115 930 91
520 615 177 155 140 M22 28 3850 1003 164 124 930 95
540 635 177 155 140 M22 28 3850 1042 158 120 930 98
560 655 177 155 140 M22 30 4130 1157 163 125 930 101
580 675 177 155 140 M22 30 4130 1199 158 121 930 104
600 695 177 155 140 M22 30 4130 1240 153 118 930 108
