China One Way Overrunning Clutch manufacturer

Low Speed Heavy Load One Way Conveyor Belt Backstop CHAOYUE

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Certification: Safety Certificate of Approval for Mining Products
Model Number: NDZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 1000.00 - 86500.00 / pc
Packaging Details: wooden case
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 100 pcs per month

Detail Information

Inner Diameter: 100 - 480 Mm Outer Diameter: 320 - 1200 Mm
RPM: 150 - 70 Rpm Torque: 16 - 1000 KN.m
Thickness: 150 - 500 Mm Weight: 98 - 4442 Kg
High Light:

One Way Conveyor Belt Backstop

,

Heavy Load Conveyor Belt Backstop

,

Heavy Load sprag clutch bearing

Product Description

NDZ Heavy Load One Way Conveyor Belt Backstop Clutch



Type NDZ bakcstop is a low speed anti-reversal device, bearing supported, filter interface, oil mark and labyrinth lubrication channel. With compact structure, light weight and working stable. Easilly to install, disengage without stuck.



It could set up directly on the roller shaft of main engine, also could install on gear reducer. It's an important device of lifting and transporting equipment.



Compared with ND backstop, it has higher RPM, higher torque load, higher precision, longer working life, more safety and stable. It could use for large angle conveyor, bucket elevator and other equipment which require anti-reversal function.

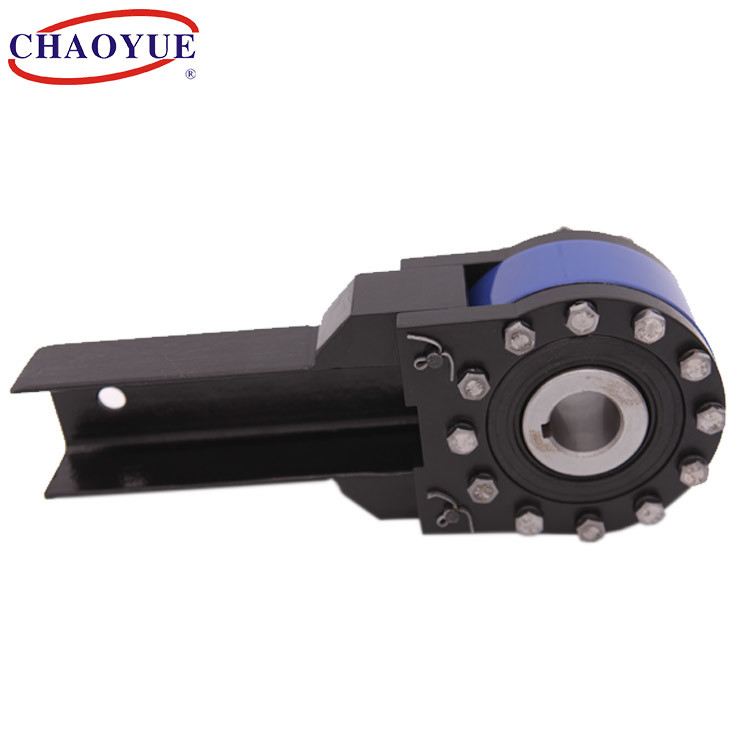

Low Speed Heavy Load One Way Conveyor Belt Backstop CHAOYUE 0






Mounting Example

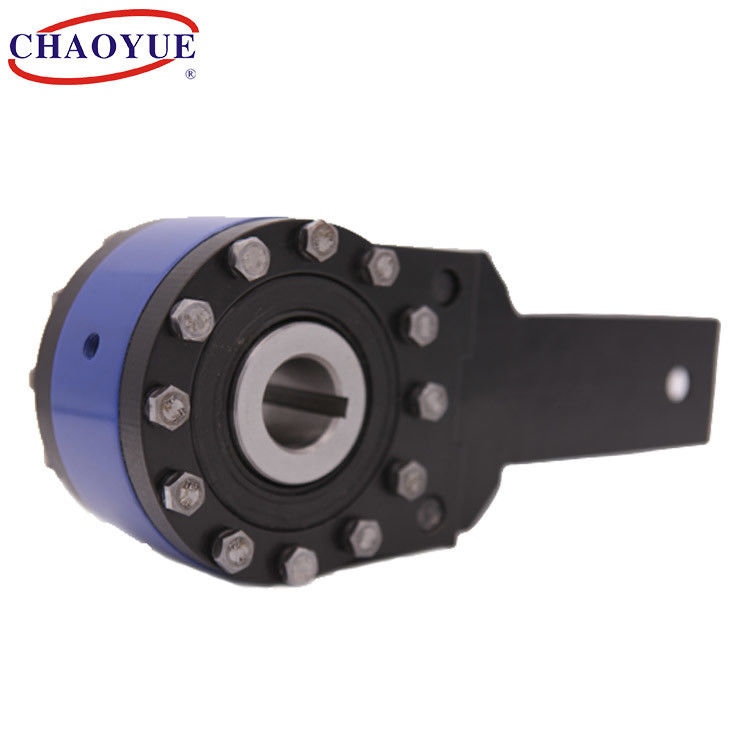

Low Speed Heavy Load One Way Conveyor Belt Backstop CHAOYUE 1


Low Speed Heavy Load One Way Conveyor Belt Backstop CHAOYUE 2

Model Carring Capacity
[N.m]
Inner race max speed
[r/min]
Idling drag torque
[N.m]
Bore size range
d [mm]
Dimension in contour [mm] Weight
[kg]
A B D H h Φ L E F
NJZ16 16000 150 20 100 - 130 120   320 506     150     98
NJZ25 25000 150 35 120 - 160 140 80 360 800     150     112
NJZ40 40000 150 45 160 - 200 160 88 430 850     160     182
NJZ50 50000 100 75 160 - 220 220 110 500 1000 100 100 240     354
NJZ100 100000 100 95 180 - 250 250 120 600 1200 100 100 290     644
NJZ130 130000 90 100 200 - 270 280 120 650 1300 80 40 290 120 60 755
NJZ200 200000 90 110 230 - 300 320 130 780 1300 80 45 294 135 60 1088
NJZ280 280000 90 140 250 - 320 360 140 850 1500 100 50 320 150 70 1426
NJZ330 330000 80 160 260 - 350 400 140 930 1600 100 55 360 160 70 1921
NJZ530 530000 80 220 320 - 420 450 150 1030 1800 120 60 440 180 80 2945
NJZ710 710000 80 250 350 - 450 500 160 1090 2000 120 70 480 210 100 3518
NJZ1000 10000000 70 280 380 - 480 560 170 1200 2200 150 80 500 230 110 4442
