Home ProductsOverrunning Clutch BearingSingle Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding

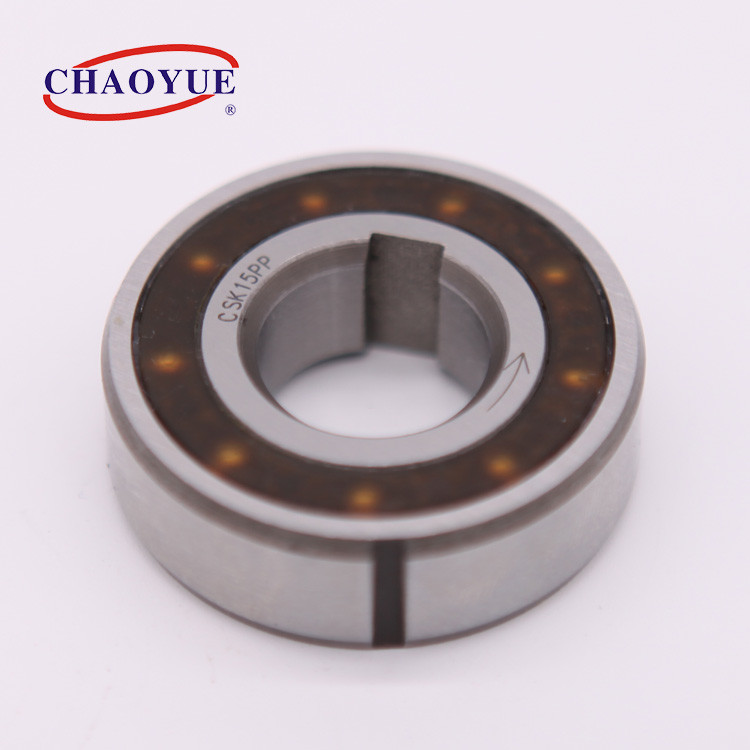

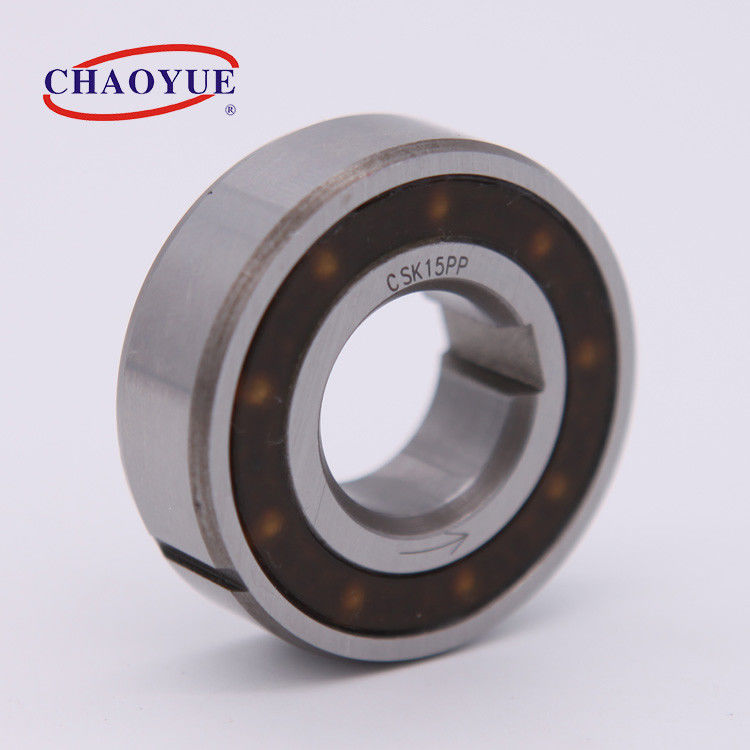

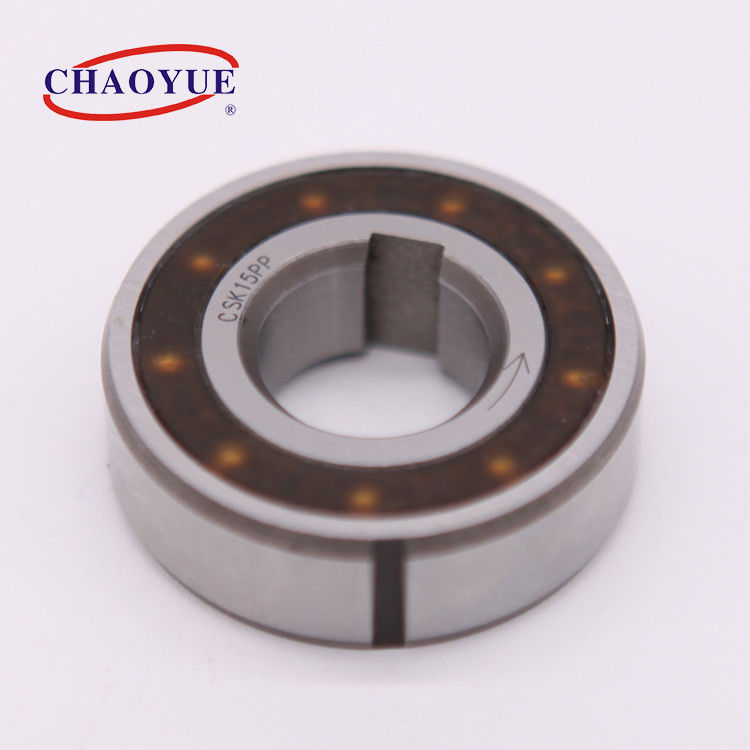

Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding
Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding

Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CSK
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 2.50 - 10.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 5000 pcs per month
Contact Now

Detail Information
Inner Diameter: 12 - 40 Mm Outer Diameter: 32 - 80 Mm
Torque: 9.3 - 325 Nm Thickness: 10 - 27 Mm
Friction Resistance: 0.7 - 10 Ncm Weight: 0.04 - 0.6
Highlight:

thickness 27mm cam clutch bearing

,

Torque 325Nm cam clutch bearing

,

thickness 27mm clutch one way

Product Description

CSK / UK One Way Overrunning Clutch Bearing Single Keyway / Double Keyway



Type CSK..P, CSK..PP, CSK-2RS sprag type freewheels is consisted by usual sprag clutch and ball bearing. This clutch can not only realize the function of overrunning backstop indexing but also bear radial force; Units are delivered grease lubricated.



Type CSK..P, CSK..2RS features a keyway on the inner race. For this reason it can be keyed to a shaft to k6 tolerance. CSK..PP features a keyway on both the inner race and outer race.



This series extensive used in machinery system of packing printing, and automation equipments.





Monting Example

Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding 0



Single Keyway Thickness 27mm Torque 325Nm Cam Clutch Bearing Overriding 1



Type Dimension in Coutour [mm] Bearing Loads Bearing
[GB/T276]		 Friction
Resistance
TR [Ncm]		 Weight
d Tkn1)
[Nm]		 nmax
[min-1]		 D L b t b1 t1 Dyn.
[kN]		 Stat.
[kN]

CKS..P

UKC

 12 9.3 10000 32 10 　 　 4 1.2 6.1 2.77 6201 0.7 0.04
15 17 8400 35 11 　 　 5 1.2 7.4 3.42 6202 0.9 0.06
17 30 7350 40 12 　 　 5 1.2 7.9 3.8 6203 1.1 0.07
20 50 6000 47 14 　 　 6 1.6 9.4 4.46 6204 1.3 0.11
25 85 5200 52 15 　 　 8 2 10.7 5.46 6205 2 0.14
30 138 4200 62 16 　 　 8 2 11.7 6.45 6206 4.4 0.21
35 175 3600 72 17 　 　 10 2.4 12.6 7.28 6207 5.8 0.3
40* 325 3000 80 22 　 　 12 3.3 15.54 12.25 - 7 0.5

CSK..PP

UKCC

 15 17 8400 35 11 2 0.6 5 1.2 7.4 3.42 6202 0.9 0.06
17 30 7350 40 12 2 1 5 1.2 7.9 3.8 6203 1.1 0.07
20 50 6000 47 14 3 1.5 6 1.6 9.4 4.46 6204 1.3 0.11
25 85 5200 52 15 6 2 8 2 10.7 5.46 6205 2 0.14
30 138 4200 62 16 6 2 8 2 11.7 6.45 6206 4.4 0.21
　 　 　 　 　 8 2.5 　 　 　 　 　 　 　
40 325 3000 80 22 10 3 12 3.3 15.54 12.25 - 7 0.5
CSK..PP-2RS 12 9.3 10000 32 14 　 　 4 1.2 6.1 2.77 - 3 0.05
15 17 8400 35 16 　 　 5 1.2 7.4 3.42 - 4 0.07
17 30 7350 40 17 　 　 5 1.2 7.9 3.8 - 5.6 0.09
20 50 6000 47 19 　 　 6 1.6 9.4 4.46 - 6 0.145
25 85 5200 52 20 　 　 8 2 10.7 5.46 - 6 0.175
30 138 4200 62 21 　 　 8 2 11.7 6.45 - 7.5 0.27
35 175 3600 72 22 　 　 10 2.4 12.6 7.28 - 8.2 0.4
40 325 3000 80 27 　 　 12 3.3 15.54 12.25 - 10 0.6
