Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GCZ-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 70.00 - 1550.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 12 - 120 Mm Outer Diameter: 62 - 310 Mm
Thickness: 42 - 212 Mm Torque: 44 - 20000 N.m
Weight: 1.0 - 91.5 Kg
High Light:

125mm OD clutch shaft bearing

,

1300r/min clutch shaft bearing

,

1300r/min one way sprag clutch bearing

Product Description

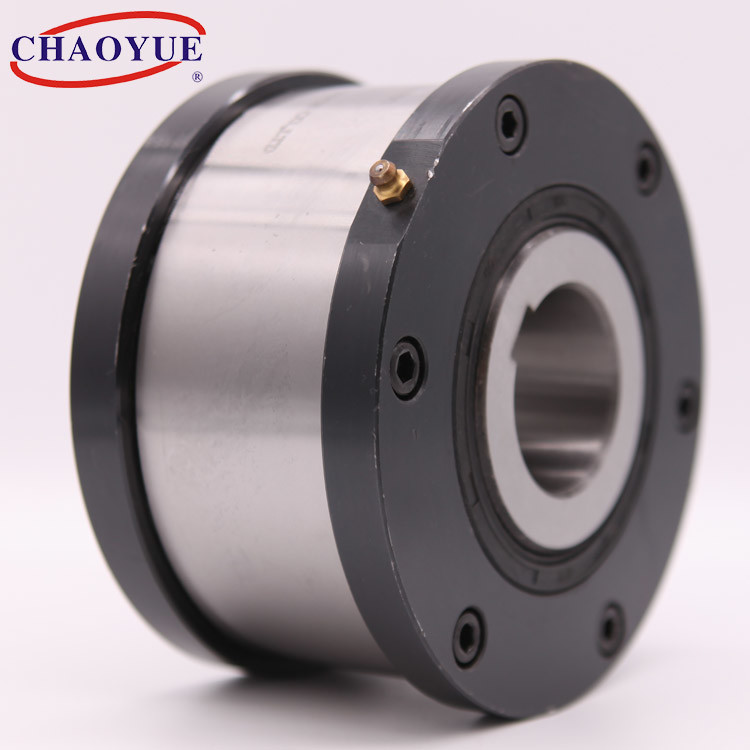

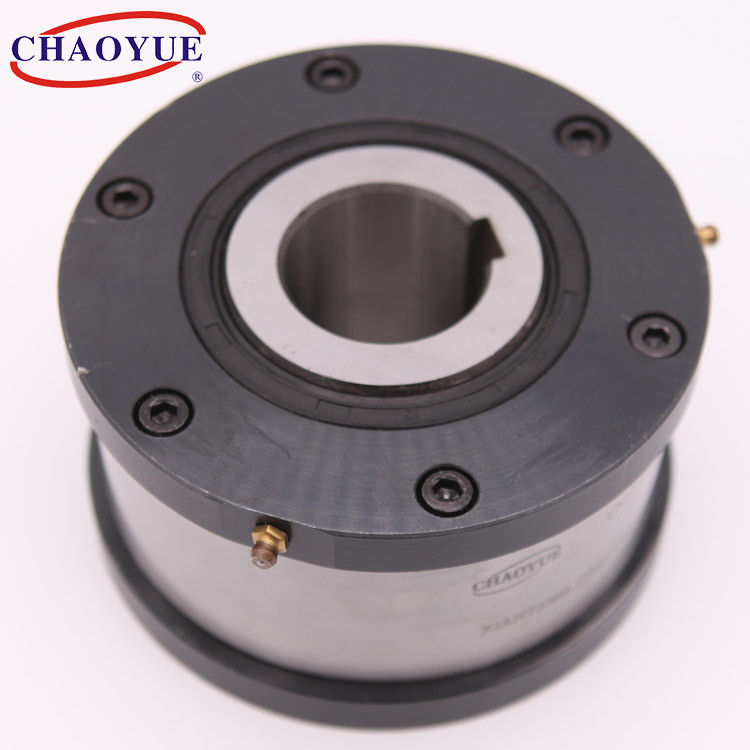

GCZ-B Roller Type Indexing Overrunning Clutch Bearing



Type GCZ-B is a roller type freewheels, self contained, sealed and bearing supported, using two 160 series bearings. Units are delivered oil lubricated.



A keyway is machined on the outer race for the connection to the drive or drive member centered on its outside. Cover is used to close the unit. It is equipped with two screws for oil filling, drain and level.



This type extensive used in machinery system of conveyor, hosting, packing, printing, papermaking, weaving, food and so on, to realize overruning and indexing.



Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing 0






Mounting Example

Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing 1


Indexing 1300r/Min 125mm OD Clutch Shaft Bearing , One Way Sprag Clutch Bearing 2

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race d[H7] D[h6] D1 L L1 S bw x tw bn x tn
GCZ-B1262 44 1600 2800 12 62 70 20 42 10 4 x 2.5 4 x 1.8 1
GCZ-B1568 100 1450 2600 15 68 76 28 52 11 5 x 3.0 5 x 2.3 1.4
GCZ-B2075 151 1080 2300 20 75 84 34 57 11 6 x 3.5 6 x 2.8 1.9
GCZ-B2590 230 840 1800 25 90 99 35 60 12 8 x 4.0 8 x 3.3 2.8
GCZ-B30100 400 680 1600 30 100 109 43 68 12 8 x 4.0 8 x 3.3 3.7
GCZ-B35110 580 620 1500 35 110 119 45 74 13.5 10 x 5 10 x 3.3 4.7
GCZ-B40125 820 460 1300 40 125 135 53 86 15.5 12 x 5 12 x 3.3 7.1
GCZ-B45130 900 400 1200 45 130 140 53 86 15.5 14 x 5.5 14 x 3.8 7.4
GCZ-B50150 1700 320 1075 50 150 160 64 94 13 14 x 5.5 14 x 3.8 10.4
GCZ-B55160 1890 260 1000 55 160 170 66 104 17.5 16 x 6.0 16 x 4.3 13.4
GCZ-B60170 2520 220 950 60 170 182 78 114 16.5 18 x 7.0 18 x 4.4 15.9
GCZ-B70190 4320 210 875 70 190 202 95 134 18 20 x 7.5 20 x 4.9 20.8
GCZ-B80210 7285 200 800 80 210 222 100 144 20.5 22 x 9.0 22 x 5.4 27.1
GCZ-B90230 9440 180 725 90 230 242 115 158 20.5 25 x 9.0 22 x 5.4 39.4
GCZ-B100270 12800 140 625 100 270 282 120 182 28.5 28 x 10 28 x 6.4 66.4
GCZ-B120310 20000 100 500 120 310 322 152 212 22.5 32 x 11 32 x 7.4 91.5
