China One Way Overrunning Clutch manufacturer

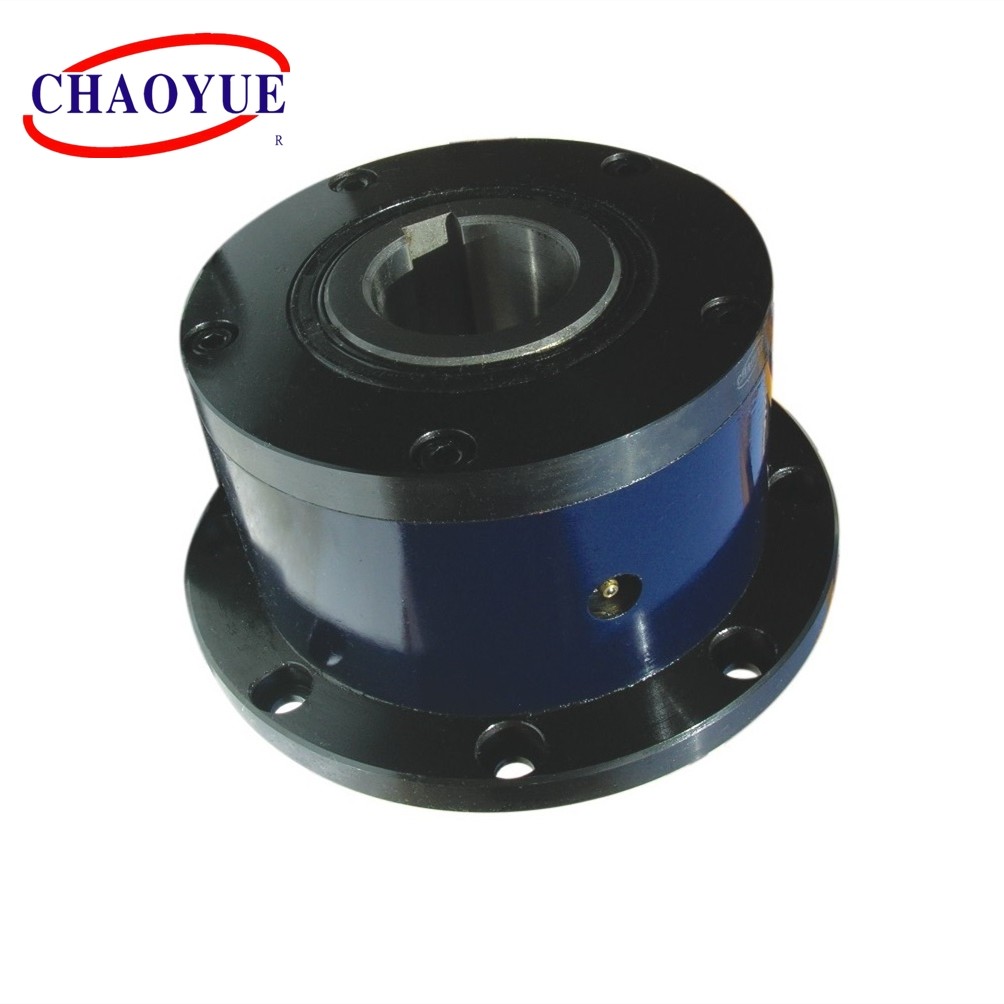

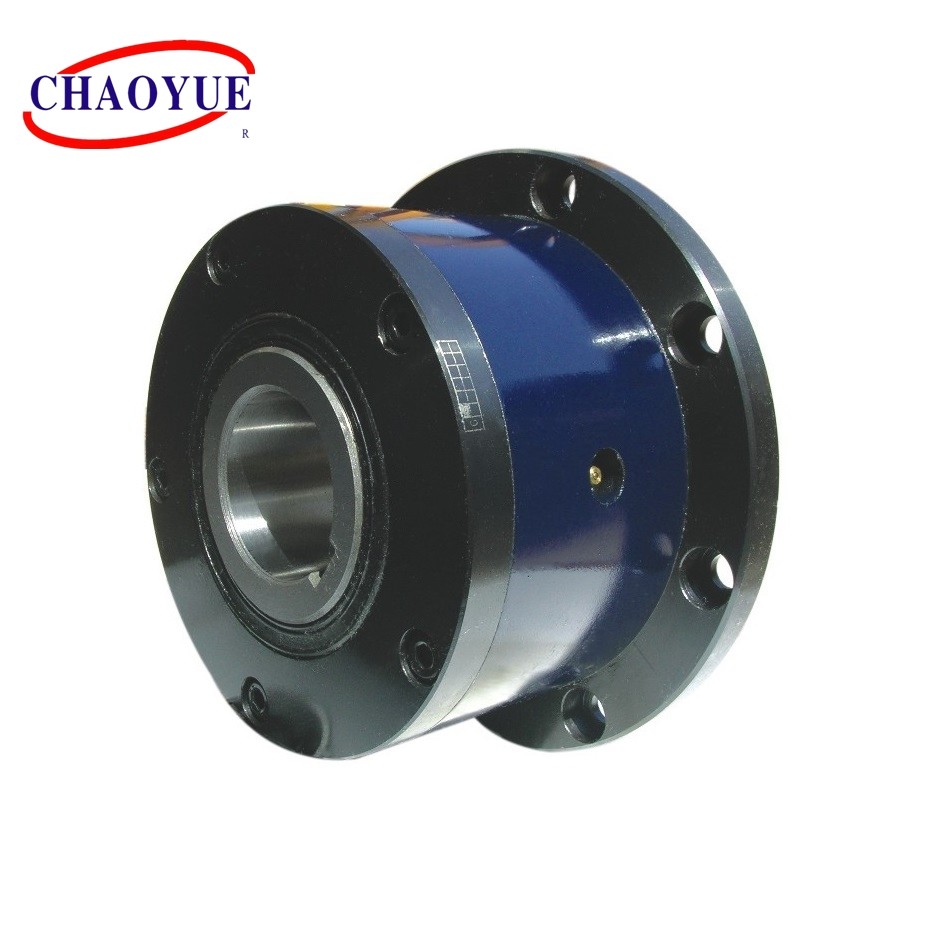

25mm ID 230N.M Overrunning Clutch Bearing Overriding Clutch Roller Type

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GCZ-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 80.00 - 1600.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 12 - 120 Mm Outer Diameter: 62 - 310 Mm
Thickness: 43 - 214 Mm Torque: 44 - 20000 N.m
Weight: 0.9 - 91 Kg
High Light:

25mm ID Overrunning Clutch Bearing

,

230N.m Overrunning Clutch Bearing

,

25mm ID overriding clutch

Product Description

GCZ-A Machinery One Way Overrunning Roller Shaft Bearing



Type GCZ-A is a roller type freewheel with flange, self contained, sealed and bearing supported, using two 160 series bearings, Units are delivered oil lubricated.



The inner race is keyed to the shaft, The outer flange is bonded to the housing.



Primarily used as indexing or overrunning clutches.






Mounting Example



25mm ID 230N.M Overrunning Clutch Bearing Overriding Clutch Roller Type 0


25mm ID 230N.M Overrunning Clutch Bearing Overriding Clutch Roller Type 1



Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race d[H7] D[h7] D1 D2 D3 L L1 e bn x tn n - d1
GCZ-A1262 44 1600 2800 12 62 42 72 85 43 42 2 4 x 1.8 3 - 5.5 0.9
GCZ-A1568 100 1450 2600 15 68 47 78 92 55 52 4 5 x 2.3 3 - 5.5 1.3
GCZ-A2075 145 1080 2300 20 75 55 85 98 59.5 57 3 6 x 2.8 4 - 5.5 1.7
GCZ-A2590 230 840 1800 25 90 68 104 118 62.5 60 3 8 x 3.3 4 - 5.5 2.69
GCZ-A30100 400 680 1600 30 100 75 114 128 70.5 68 3 8 x 3.3 6 - 6.6 3.5
GCZ-A35110 580 620 1500 35 110 80 124 138 76.5 74 3.5 10 x 3.3 6 - 6.6 4.5
GCZ-A40125 820 460 1300 40 125 90 142 160 88 86 3.5 12 x 3.3 6 - 9.0 6.9
GCZ-A45130 900 400 1200 45 130 95 146 165 88.5 86 3.5 14 x 3.8 8 - 9.0 9.1
GCZ-A50150 1700 320 1075 50 150 110 165 185 96 94 4 14 x 3.8 8 - 9.0 10.1
GCZ-A55160 1890 300 1000 55 160 115 182 204 106.5 104 4 16 x 4.3 8 - 11 13.1
GCZ-A60170 2520 260 950 60 170 125 192 214 116 114 4 18 x 4.4 10 - 11 15.6
GCZ-A70190 4140 220 875 70 190 140 212 234 136.5 134 4 20 x 4.9 10 - 11 20.4
GCZ-A80210 5440 200 800 80 210 160 232 254 146.5 144 4 22 x 5.4 10 - 11 25.2
GCZ-A90230 9280 180 725 90 230 180 254 278 161 158 4 25 x 5.4 10 - 14 37.95
GCZ-A100270 16200 140 625 100 270 210 305 335 184 185 5 28 x 6.4 10 - 18 71.04
GCZ-A120310 20000 100 500 120 310 240 345 375 214 212 5 32 x 7.4 12 - 18 91
