Home ProductsOverrunning Clutch BearingDurable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging
Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging
Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging

Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: GCZ-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 45.00 - 950.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 12 - 130 Mm Outer Diameter: 62 - 310 Mm
Thickness: 42 - 212 Mm Torque: 44 - 20000 N.m
Weight: 0.5 - 65.0 Kg
Highlight:

60mm dia Overrunning Clutch Bearing

,

2520N.m Overrunning Clutch Bearing

,

2520N.m sprag clutch bearing

Product Description

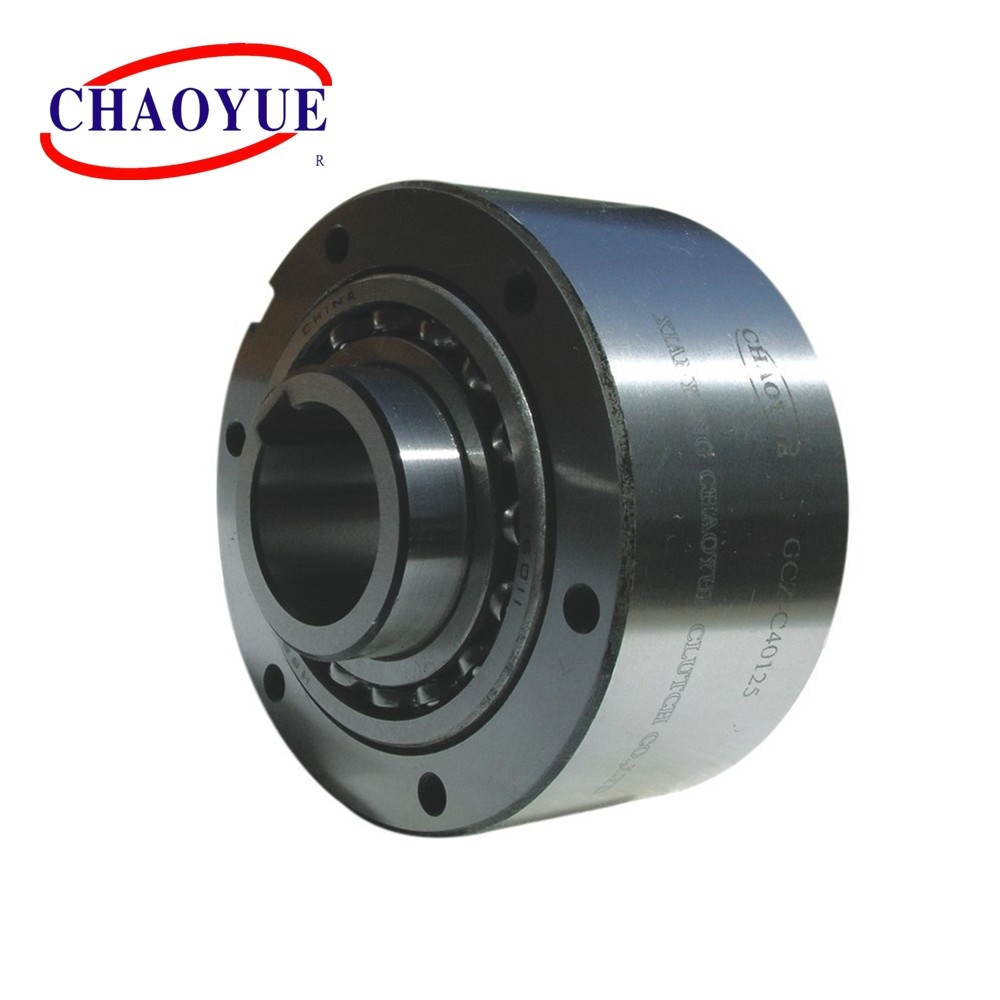

GCZ-C Bearing Supported Overrunning Clutch For Printing Packaging Machinery



Type GCZ-C is a roller type freewheel, they are bearing supported, using two 160 series bearing, and require oil lubrication.



Its special design can be achieves accurate feeding without backlash and long service life, low running costs. Through various covers that are designed.



It can be widely used in packing, paper processing, printing and textile machines that required for producing fin feeds.

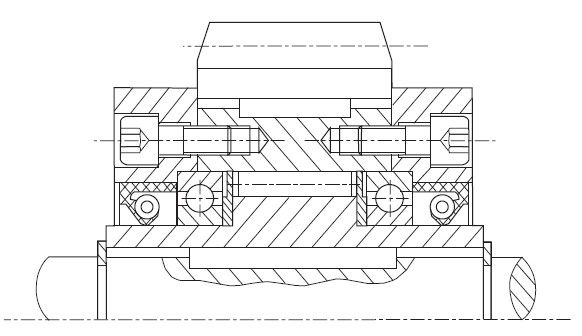

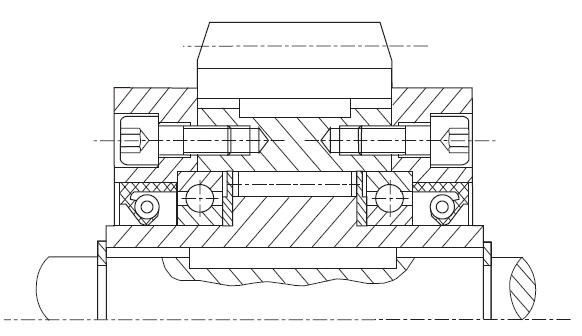

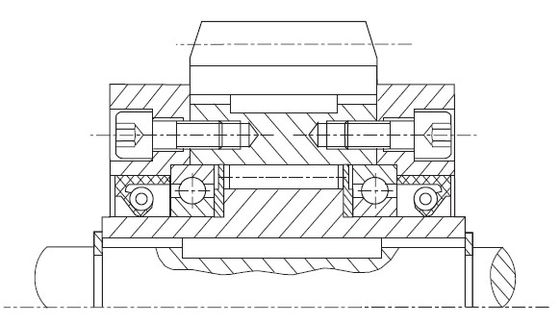

Mounting Example

Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging 0

Durable 2520N.M 60mm Dia Overrunning Clutch Bearing For Packaging 1

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 　Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race d[H7] D[h6] D1 D2 D3 L L1 B bw x tw bn x tn n - M H
GCZ-C1262 44 1600 2800 12 62 20 51 42 20 42 27 4 x 2.5 4 x 1.8 3 - M5 8 0.5
GCZ-C1568 100 1450 2600 15 68 25 56 47 28 52 32 5 x 3.0 5 x 2.3 3 - M5 8 0.8
GCZ-C2075 151 1080 2300 20 75 30 64 55 34 57 39 6 x 3.5 6 x 2.8 4 - M5 8 1
GCZ-C2590 230 840 1800 25 90 40 78 68 35 60 40 8 x 4 8 x 3.3 4 - M6 10 1.5
GCZ-C30100 400 680 1600 30 100 45 87 75 43 68 48 8 x 4 8 x 3.3 6 - M6 10 2.2
GCZ-C35110 580 620 1500 35 110 50 96 80 45 74 51 10 x 5 10 x 3.3 6 - M6 15 3
GCZ-C40125 820 460 1300 40 125 55 108 90 53 86 59 12 x 5 12 x 3.3 6 - M8 14 4.6
GCZ-C45130 900 400 1200 45 130 60 112 95 53 86 59 14 x 5.5 14 x 3.8 8 - M8 14 4.7
GCZ-C50150 1700 320 1075 50 150 70 132 110 64 94 72 14 x 5.5 14 x 3.8 8 - M8 14 7.2
GCZ-C55160 1890 260 1000 55 160 75 138 115 66 104 72 16 x 6 16 x 4.3 8 - M10 16 8.6
GCZ-C60170 2520 220 950 60 170 80 150 125 78 114 89 18 x 7 18 x 4.4 10 - M10 25 10.5
GCZ-C70190 4320 210 875 70 190 90 165 140 95 134 108 20 x 7.5 20 x 4.9 10 - M10 25 13.5
GCZ-C80210 7285 200 800 80 210 105 185 160 100 144 108 22 x 9 22 x 5.4 10 - M10 25 18.2
GCZ-C90230 9440 180 725 90 230 120 206 180 115 158 125 25 x 9 25 x 5.4 10 - M12 30 28.5
GCZ-C100270 12800 140 625 100 270 140 240 210 120 182 131 28 x 10 28 x 6.4 10 - M16 40 42.5
GCZ-C130310 20000 100 500 120 310 160 287 240 152 212 168 32 x 11 32 x 7.4 12 - M16 40 65
