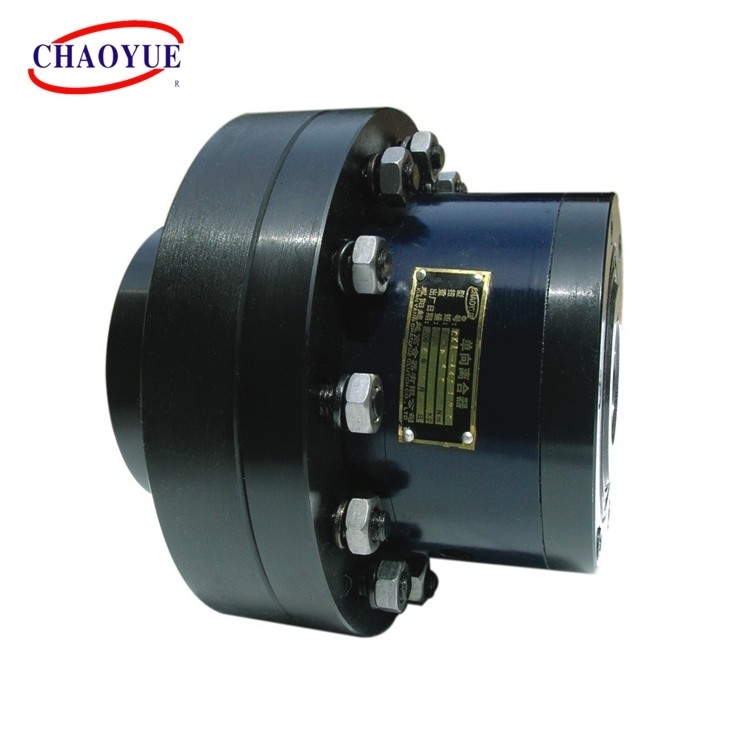

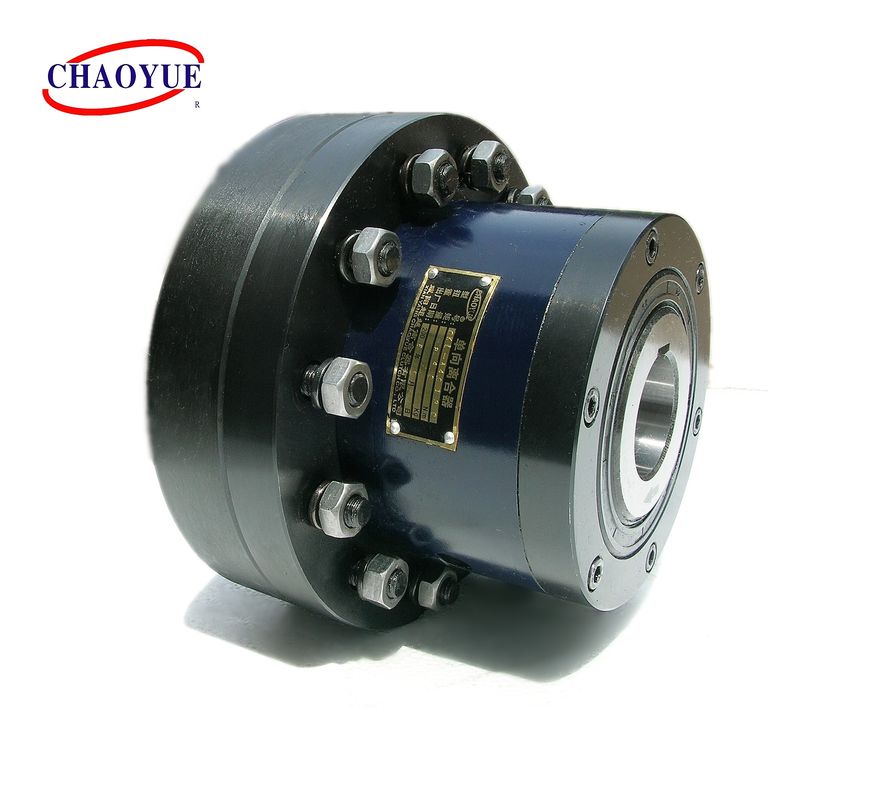

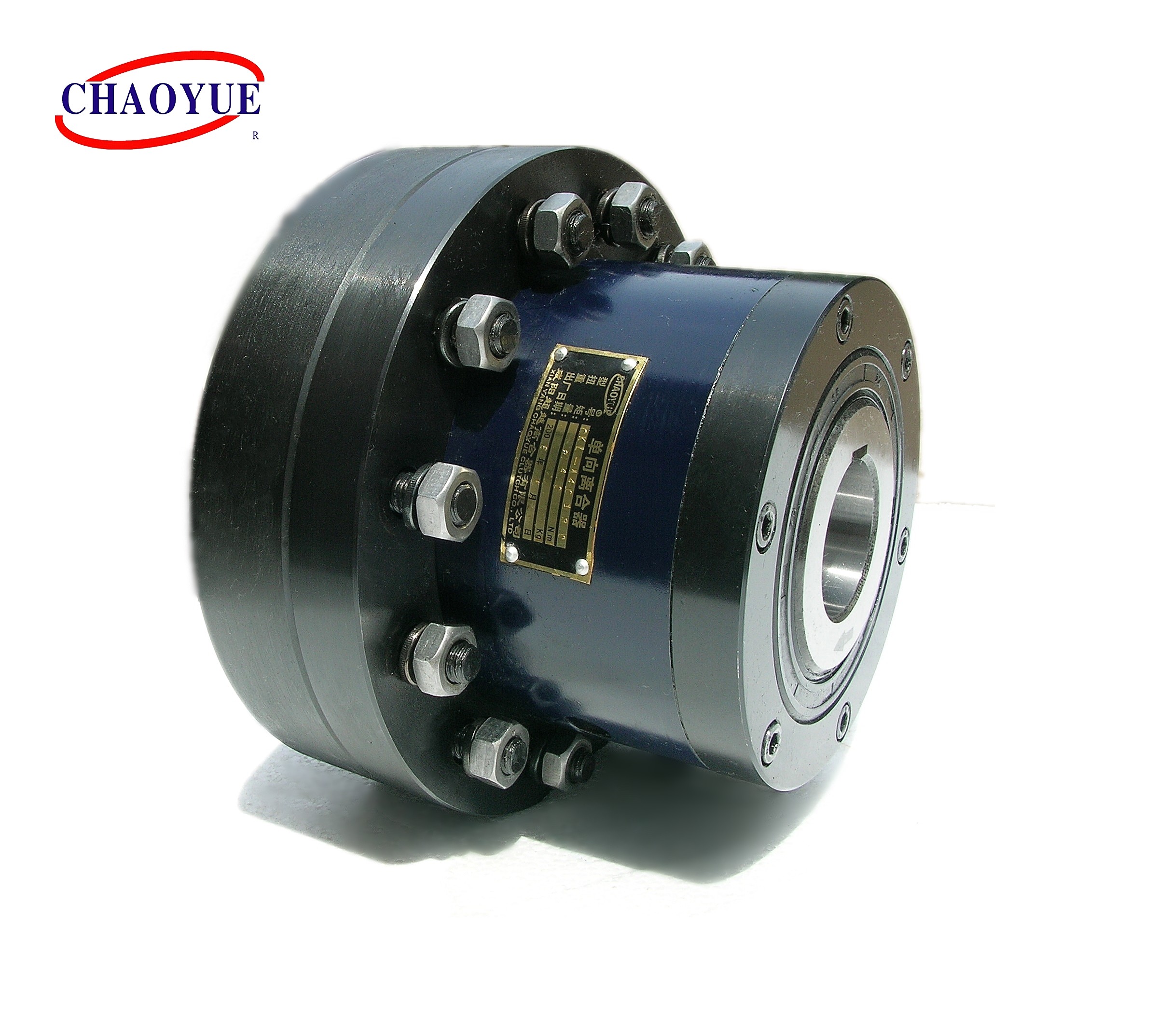

CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type
CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type

CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKL-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 85.00 - 1700.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 12 - 100 Mm Outer Diameter: 97 - 500 Mm
Thickness: 93 - 434.5 Mm Weight: 3.0 - 230 Kg
Torque: 44 - 16000 N.m
Highlight:

90N.m One Way Overrunning Clutch

,

110mm lengthOne Way Overrunning Clutch

,

110mm lengthone way clutch system

Product Description

CKL-B Sprag One Way Overrunning Clutch Shaft Coupling Bearing



Type CKL-A is a sprag type freewheel, self contained, sealed and bearing supported, Unit is delivered oil lubricated.



The inner race and flange are keyed to the opposite shaft.



This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic, metallurgy, mining and so on.





Mounting Example



CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type 0



CKL-A 110mm Length 90N.M One Way Overrunning Clutch Sprag Type 1



Type Nominal torque
[N.m]		 Overrunning Limiting Speed
[r / min]		 Dimension in Contour [mm] Weight
[kg]
Inner Race Outer Race d [H7] dk [H7] D D1 L L1 L2 B bn x tn
CKL-A1252 44 2125 2100 12 12 - 25 52 97 93 35 42 13 2 x 1.0 3
CKL-A1568 90 1615 2100 15 15 - 30 68 112 110 40 52 14 3 x1.4 4.4
CKL-A2075 98 1360 1960 20 15 - 30 75 118 114 40 56 14 3 x 1.4 4.6
CKL-A2590 230 1190 1610 25 20 - 40 90 130 132 50 60 18 4 x 1.8 6.4
CKL-A30100 400 1105 1470 30 20 - 50 100 160 154 60 66 21 5 x 2.3 11
CKL-A35110 580 935 1330 35 25 - 65 110 190 174 75 74 19 6 x 2.8 17
CKL-A40125 820 807 1190 40 25 - 65 125 190 187 75 86 21 6 x 2.8 19
CKL-A45130 840 765 1120 45 25 - 65 130 190 188 75 86 21 6 x 2.8 19
CKL-A48150 1400 730 1000 48 25 - 65 150 225 208 90 88 25 14 x 3.8 31.5
CKL-A50150 1400 722 980 50 30 - 75 150 225 213 90 92 25 14 x 3.8 31
CKL-A55160 1600 612 910 55 35 - 90 160 270 234 100 100 27 16 x 4.3 47
CKL-A60170 2200 578 840 60 35 - 90 170 270 244 94 114 30 18 x 4.4 49
CKL-A70170 2200 578 840 70 35 - 90 170 270 267 117 114 30 20 x 4.9 48
CKL-A70190 4500 493 770 70 45 - 110 190 340 318.5 140 134 38.5 20 x 4.9 90
CKL-A75170 2200 578 840 75 35 - 90 170 270 291 140 114 30 20 x 4.9 46
CKL-A75190 4500 493 770 75 50 - 120 190 340 315 140 134 35 20 x 4.9 88
CKL-A80210 6800 408 630 80 55 - 125 210 380 344 160 142 35 22 x 5.4 107
CKL-A90230 11000 323 595 90 65 - 140 230 440 381 160 159 50 25 x 6.4 170
CKL-A95230 11000 323 595 95 70 - 145 230 440 381 160 159 50 25 x 5.4 165
CKL-A95250 13000 300 550 95 70 - 150 250 420 410 190 175 35 25 x 5.4 198
CKL-A100270 16000 297 525 100 75 - 160 270 500 434.5 200 182 40.5 28 x 6.4 230
