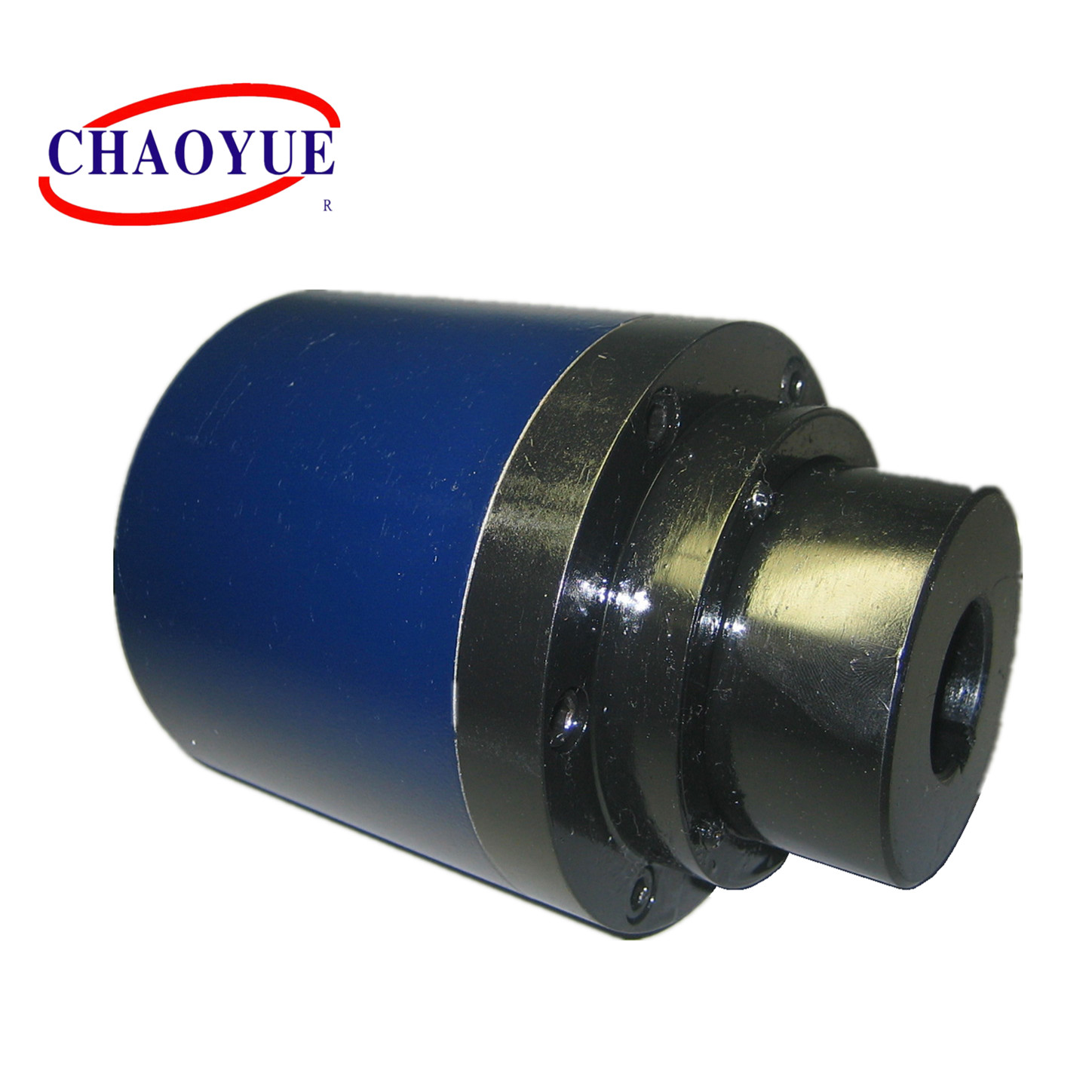

146mm Length 580N.M Overrunning Sprag Clutch , Unidirectional Clutch CKL-D
146mm Length 580N.M Overrunning Sprag Clutch , Unidirectional Clutch CKL-D

146mm Length 580N.M Overrunning Sprag Clutch , Unidirectional Clutch CKL-D

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKL-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 220.00 - 1820.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Product Name: CKL-D 580 - 38000 N.M One Way Overrunning Clutch Inner Diameter: 30 - 130 Mm
Outer Diameter: 110 - 400 Mm Length: 146 - 500 Mm
Torque: 580 - 38000 N.m Weight: 12.5 - 342 Kg
Highlight:

580N.M overrunning sprag clutch

,

146mm length overrunning sprag clutch

,

580N.M unidirectional clutch

Product Description

CKL-D 580 - 38000 N.M One Way Overrunning Clutch



CKL-D type flywheel is coupled with a coupling half, having individual functions, seals and bearings. Unit dedicated oil lubrication.



It is for transmitting torque or two axes face displacement with backoff.

Compared with type CKL-B, it can transmit much more torque.



This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic, and metallurgy, mining and so on.





Mounting Example

146mm Length 580N.M Overrunning Sprag Clutch , Unidirectional Clutch CKL-D 0

146mm Length 580N.M Overrunning Sprag Clutch , Unidirectional Clutch CKL-D 1



Type Nominal torque
[N.m]		 Overrunning Limiting Speed
[r / min]		 Dimension in Contour [mm] Weight
[kg]
nmin nmax d [H7] dk [H7] D D1 L L1 L2 bn x tn
CKL-D30110 580 800 2500 30 28 - 45 110 66 146 53 86 8 x 3.3 12.5
CKL-D40125 800 780 2500 40 36 - 55 125 78 168 62 98 10 x 3.3 14.5
CKL-D45130 815 740 2500 45 42 - 58 130 80 168 62 98 12 x 3.3 16
CKL-D50150 1400 720 2500 50 48 - 65 150 94 207 82 117 14 x 3.8 24
CKL-D55165 1700 660 2500 55 54 - 68 165 100 233.5 95 130 14 x 3.8 35.6
CKL-D60170 2200 610 2000 60 58 - 70 170 108 244 97 138 16 x 4.3 37
CKL-D70190 4420 600 2000 70 68 - 78 190 115 312.5 130 172.5 16 x 4.3 67.5
CKL-D80210 6800 490 2000 80 78 - 85 210 125 340 153 177 18 x 4.4 80
CKL-D90230 11000 480 2000 90 90 - 98 230 135 369 150 209 22 x 5.4 127.5
CKL-D100270 16000 450 1500 100 96 - 105 270 145 422.5 186 222.5 25 x 5.4 162.5
CKL-D110320 22000 420 1500 110 110 -125 320 160 455 188 252 28 x 6.4 203
CKL-D120360 25000 400 1500 120 115 - 135 360 190 480 202 262 32 x 7.4 263
CKL-D130400 38000 375 1500 130 125 - 150 400 210 500 207 275 36 x 8.4 342
