Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CKL-D |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 220.00 - 1820.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 30 - 130 Mm | Outer Diameter: | 110 - 400 Mm |
|---|---|---|---|
| Length: | 146 - 500 Mm | Torque: | 580 - 38000 N.m |
| Weight: | 12.5 - 342 Kg | ||
| Highlight: | 24kg one way sprag clutch,50mm I.D. one way sprag clutch,50mm I.D. clutch one way bearing |
||
Product Description

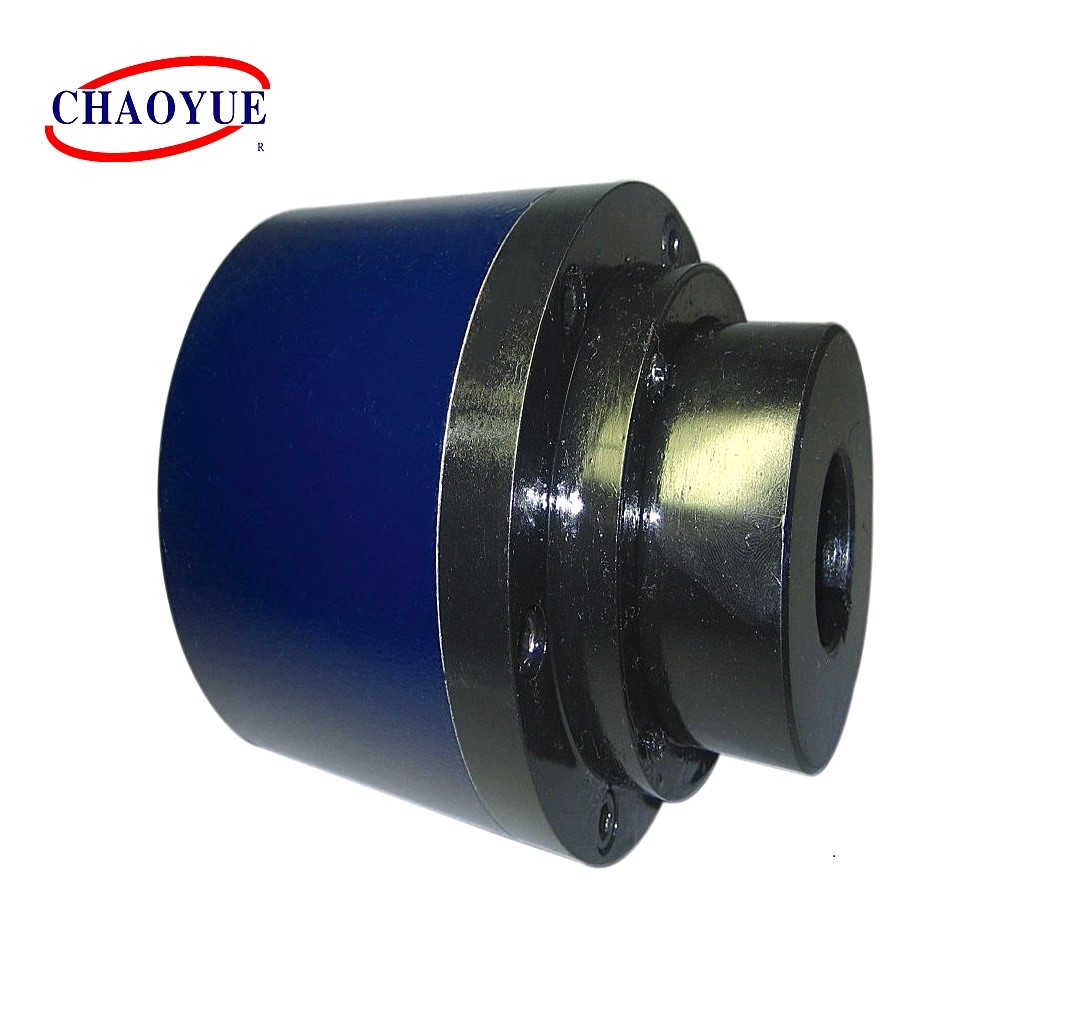

CKL-D Semi Coupling Non Contact One Way Overrunning Clutch
Type CKL-D is a sprag type semi coupling freewheel, self contained, sealed and bearing supported. Unit is devliered oil lubricated.
It used to transit torque or back off in two faced shaft with displacement. Compared with type CKL-B, it can transmit much more torque.
This combination is used as overrunning clutch and extensive used in mechanism of packing, traffic, and metallurgy, mining and so on.

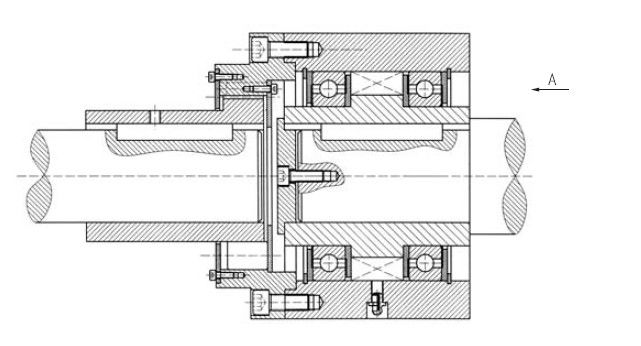

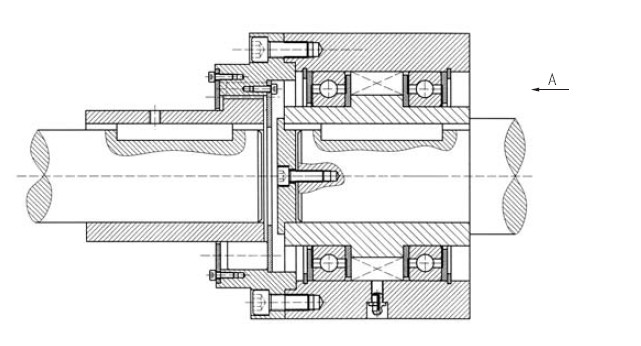

Mounting Example
| Type | Nominal torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Weight [kg] |
||||||||
| nmin | nmax | d [H7] | dk [H7] | D | D1 | L | L1 | L2 | bn x tn | |||
| CKL-D30110 | 580 | 800 | 2500 | 30 | 28 - 45 | 110 | 66 | 146 | 53 | 86 | 8 x 3.3 | 12.5 |
| CKL-D40125 | 800 | 780 | 2500 | 40 | 36 - 55 | 125 | 78 | 168 | 62 | 98 | 10 x 3.3 | 14.5 |
| CKL-D45130 | 815 | 740 | 2500 | 45 | 42 - 58 | 130 | 80 | 168 | 62 | 98 | 12 x 3.3 | 16 |
| CKL-D50150 | 1400 | 720 | 2500 | 50 | 48 - 65 | 150 | 94 | 207 | 82 | 117 | 14 x 3.8 | 24 |
| CKL-D55165 | 1700 | 660 | 2500 | 55 | 54 - 68 | 165 | 100 | 233.5 | 95 | 130 | 14 x 3.8 | 35.6 |
| CKL-D60170 | 2200 | 610 | 2000 | 60 | 58 - 70 | 170 | 108 | 244 | 97 | 138 | 16 x 4.3 | 37 |
| CKL-D70190 | 4420 | 600 | 2000 | 70 | 68 - 78 | 190 | 115 | 312.5 | 130 | 172.5 | 16 x 4.3 | 67.5 |
| CKL-D80210 | 6800 | 490 | 2000 | 80 | 78 - 85 | 210 | 125 | 340 | 153 | 177 | 18 x 4.4 | 80 |
| CKL-D90230 | 11000 | 480 | 2000 | 90 | 90 - 98 | 230 | 135 | 369 | 150 | 209 | 22 x 5.4 | 127.5 |
| CKL-D100270 | 16000 | 450 | 1500 | 100 | 96 - 105 | 270 | 145 | 422.5 | 186 | 222.5 | 25 x 5.4 | 162.5 |
| CKL-D110320 | 22000 | 420 | 1500 | 110 | 110 -125 | 320 | 160 | 455 | 188 | 252 | 28 x 6.4 | 203 |
| CKL-D120360 | 25000 | 400 | 1500 | 120 | 115 - 135 | 360 | 190 | 480 | 202 | 262 | 32 x 7.4 | 263 |
| CKL-D130400 | 38000 | 375 | 1500 | 130 | 125 - 150 | 400 | 210 | 500 | 207 | 275 | 36 x 8.4 | 342 |
