Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CKL-B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 170.00 - 2350.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||

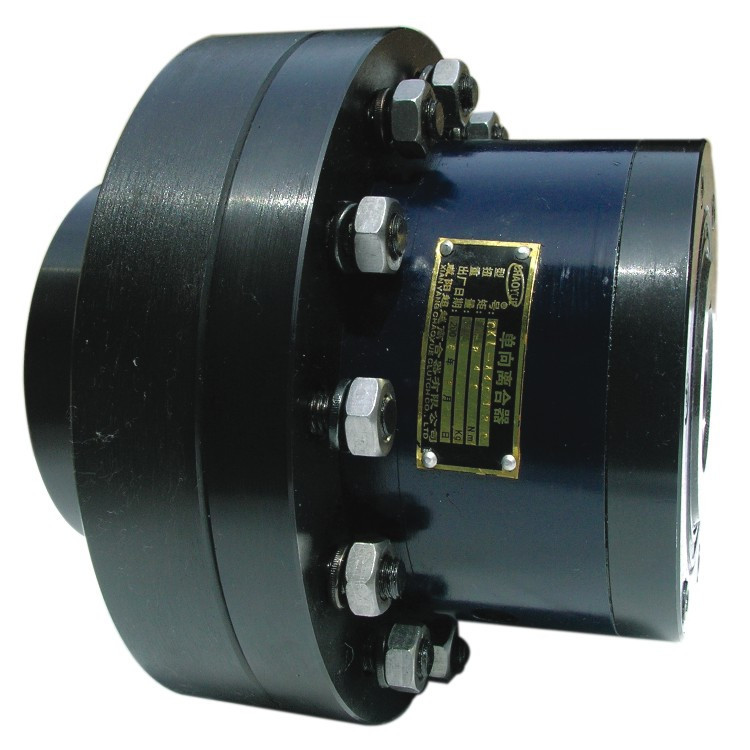

| Product Name: | 25 - 100 Mm Semi Coupling One Way Overrunning Clutch Shaft Bearing | Inner Diameter: | 25 - 100 Mm |
|---|---|---|---|
| Outer Diameter: | 130 - 500 Mm | Length: | 127 - 427 Mm |
| Weight: | 6.4 - 230 Kg | Torque: | 230 - 12300 N.m |
| Highlight: | 230N.m One Way Overrunning Clutch,25mm diameter One Way Overrunning Clutch,230N.m freewheel one way clutch |
||
Product Description
Type CKL-B is a centrifugal sprag type freewheels, self contained, sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs grease or oil when used.
CKL-A having the same characteristics and dimensions.
The composition is used as an overrunning clutch, and is widely used in packaging, metallurgical, mining and other institutions.
Mounting Example
| Type | Nominal torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Weight [kg] |
|||||||||
| nmin | nmax | d [H7] | dk [H7] | D | D1 | L | L1 | L2 | B | bn x tn | |||
| CKL-B2590 | 230 | 800 | 2500 | 25 | 20 - 40 | 90 | 130 | 127 | 50 | 60 | 17.5 | 4 x 1.8 | 6.4 |
| CKL-B30100 | 400 | 780 | 2500 | 30 | 20 - 50 | 100 | 160 | 151 | 60 | 66 | 20 | 5 x 2.3 | 11 |
| CKL-B35110 | 580 | 740 | 2500 | 35 | 25 - 65 | 110 | 190 | 177 | 75 | 75 | 19 | 6 x 2.8 | 17 |
| CKL-B40125 | 780 | 720 | 2500 | 40 | 25 - 65 | 125 | 190 | 183 | 75 | 86 | 17 | 6 x 2.8 | 19 |
| CKL-B45130 | 840 | 660 | 2500 | 45 | 25 - 65 | 130 | 190 | 184 | 75 | 86 | 17 | 6 x 2.8 | 19 |
| CKL-B50150 | 1400 | 610 | 2000 | 50 | 30 - 75 | 150 | 225 | 213 | 90 | 92 | 25 | 14 x 3.8 | 31 |
| CKL-B55160 | 1600 | 600 | 2000 | 55 | 35 - 90 | 160 | 270 | 233 | 100 | 104 | 29.5 | 16 x 4.3 | 47 |
| CKL-B60170 | 2200 | 490 | 2000 | 60 | 35 - 90 | 170 | 270 | 244 | 94 | 114 | 30 | 18 x 4.4 | 49 |
| CKL-B70190 | 3000 | 480 | 2000 | 70 | 45 - 110 | 190 | 340 | 318 | 140 | 134 | 38.5 | 20 x 4.9 | 90 |
| CKL-B80210 | 6800 | 450 | 1500 | 80 | 55 - 125 | 210 | 380 | 340 | 160 | 142 | 35 | 20 x 4.9 | 107 |
| CKL-B90230 | 6500 | 420 | 1500 | 90 | 65 - 140 | 230 | 440 | 369 | 155 | 159 | 50 | 25 x 6.4 | 170 |
| CKL-B100270 | 12300 | 400 | 1500 | 100 | 75 - 160 | 270 | 500 | 427 | 200 | 182 | 40.5 | 28 x 6.4 | 230 |
