Bearing Supported 10000N.m Backstop Cam Clutch For Packaging Machinery

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZ-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: USD 60.00 - 1400.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 12 - 110 Mm Outer Diameter: 70 - 330 Mm
Thickness: 48 - 175 Mm Torque: 92 - 10000 N.m
Weight: 0.95 - 81.98 Kg
High Light:

Bearing Supported Backstop Cam Clutch

,

10000N.m Backstop Cam Clutch

,

10000N.m clutch cam

Product Description

CKZ-C Bearing Supported Backstop Cam Clutch For Packaging Machinery



Type CKZ-C is sprag type freewheel, self contained, sealed and bearing supported, using two ball bearings. Unit is dellivered oil or grease lubricated according to the type.



The inner race is keyed to the shaft, the outer race has a h7 tolerance to give a fit in a H7 housing, the two lids clamp the part.



This type extensive used in machinery system of conveyor, hosting, packing, papermaking, printing, weaving and food machinery, to realize overrunnng or indexing.




Mounting Example

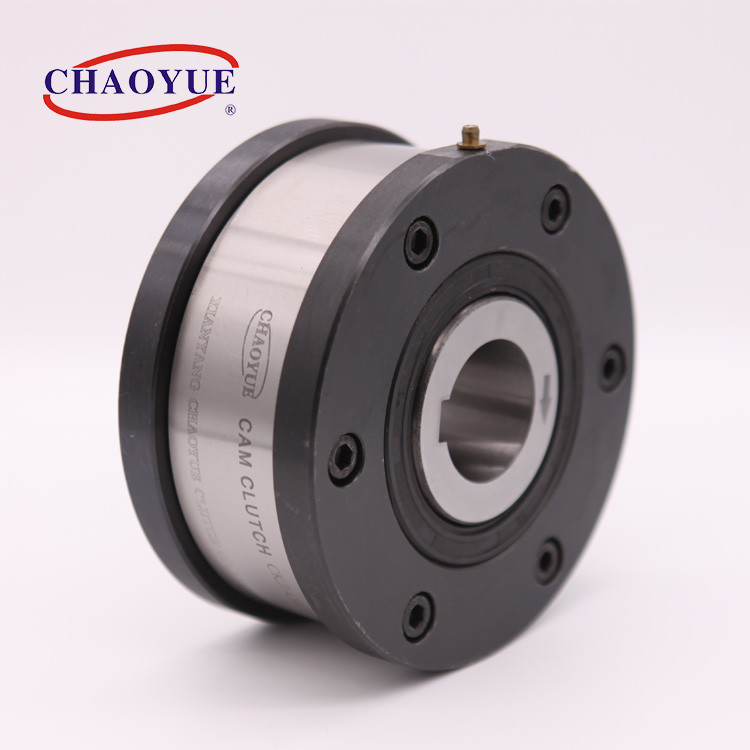

Bearing Supported 10000N.m Backstop Cam Clutch For Packaging Machinery 0

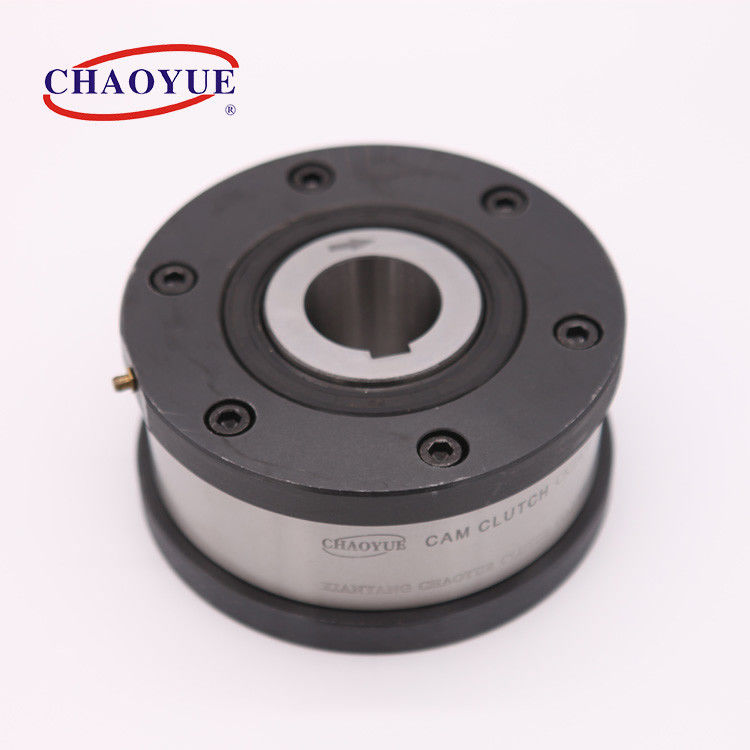

Bearing Supported 10000N.m Backstop Cam Clutch For Packaging Machinery 1

Type Nominal torque
[N.m]
Overrunning Limiting Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
Outer Race Inner Race Other Size
Inner Race Outer Race D
[h7]
B n - M bw x tw d
[H7]
C bn x tn D1 L
CKZ-C1262 92 840 510 62 26 6 - M5 4 x 2.5 12 50 4 x 1.8 70 48 0.95
CKZ-C1568 115 840 510 68 26 6 - M6 4 x 2.5 15 50 4 x 1.8 76 48 1.13
CKZ-C2075 158 700 425 75 27 6 - M5 5 x 3.0 20 51 4 x 1.8 83 49 1.40
CKZ-C25100 448 630 340 100 33 6 - M8 6 x 3.5 25 57 6 x 2.8 104 55 3.07
CKZ-C30120 530 560 340 120 35 6 - M8 12 x 5 30 63 12 x 3.3 130 61 4.68
CKZ-C35130 920 490 255 130 37 6 - M8 12 x 5 35 65 12 x 3.3 140 63 5.75
CKZ-C40140 1516 420 212 140 43 6 - M8 12 x 5 40 74 12 x 3.3 150 72 7.67
CKZ-C45150 1500 420 212 150 48 6 - M8 14 x 5.5 45 78 14 x 3.8 160 76 9.74
CKZ-C50170 2350 350 170 170 51 6 - M8 16 x 6.0 50 84 16 x 4.3 180 82 13.34
CKZ-C60190 3100 280 170 190 55 6 - M8 18 x 7.0 60 94 18 x 4.4 200 92 17.71
CKZ-C80200 3960 210 127 200 60 6 - M10 18 x 7.0 80 98 18 x 4.4 210 96 19.98
CKZ-C110250 7000 180 110 250 104 8 - M8 32 x 11 110 146 32 x 7.4 262 144 50.21
CKZ-C110320 10000 130 80 320 115 8 - M20 28 x 10 110 180 28 x 6.4 330 175 81.98
