Product Name: CKZ-D Sprag Backstop Cam Clutch With Oil Storage 115 - 314.5 Mm Inner Diameter: 19 - 135 Mm
Outer Diameter: 77 - 300 Mm Length: 115 - 314.5 Mm
Torque: 185 - 14400 N.m Weight: 2.0 - 77.6 Kg
High Light:

Sprag Backstop Cam Clutch

,

Backstop Cam Clutch With Oil Storage

,

Sprag cam clutch

Product Description

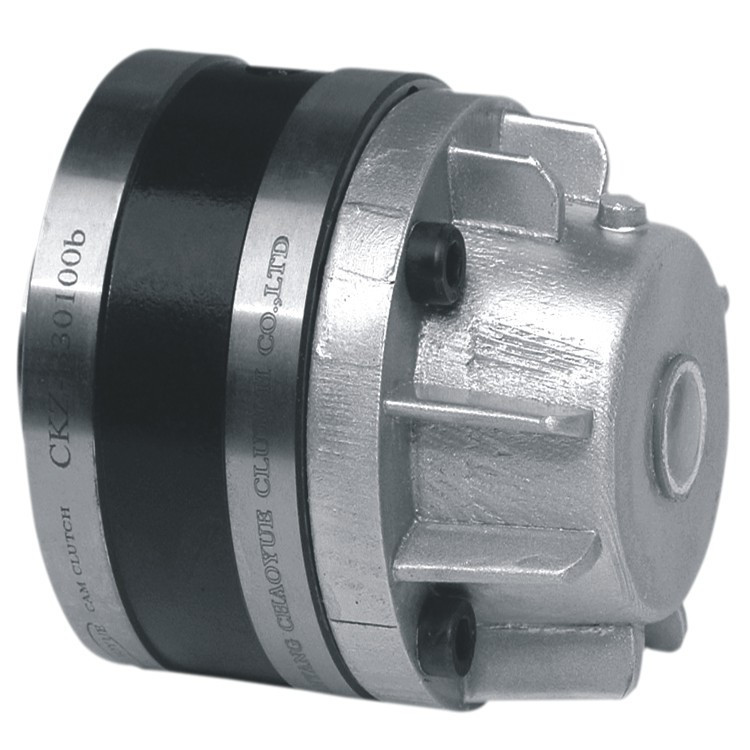

CKZ-D Sprag Backstop Cam Clutch With Oil Storage 115 - 314.5 mm



1, BTC type (ratcheting) by two clutch discs toothed plane when the venting, the internal tooth moving axially connected, by a return spring automatically isolated when the pressure relief.
2, BTC ratcheting type pneumatic clutch connected for transmitting power ratcheting teeth, thus slip-free, fine power transmission. But the amount of small form factor convey high torque in a small space can use the optional wide torque range
3, connected to the tooth and the tooth, small size, but the transmitted torque other times the same volume.
4,1 predetermined value than a slip-free transmission, consumption without loss of torque.
5, are connected to or separated in an instant, fast and sensitive operation.
6, integrated structure easy to install, do not worry about the axis of the tooth contract.
7, to be connected to a low-speed, but high-speed operation can be transferred.
8, dry, wet, may be used.




Mounting Example

Integrated Structure Sprag Backstop Cam Clutch With Oil Storage 0


Integrated Structure Sprag Backstop Cam Clutch With Oil Storage 1

Type Nominal torque
[N.m]
Overrunning Limiting Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
d
[H7]
D
[h7]
A B C F E n - M H b x t
CKZ-D1977 185 1960 19 77 115 60 63 66 53.5 4 - M6 13 5 x 2 2
CKZ-D2288 317 1820 22 88 122 67 70 73 53.5 4 - M8 16 5 x 2 3
CKZ-D32108 953 1680 32 108 164 86 89 92 66.5 4 - M8 16 7 x 3 5.5
CKZ-D50136 1847 1470 50 136 165 92 95 120 71.5 6 - M8 16 12 x 3.5 9.5
CKZ-D70180 3460 1050 70 180 207 124 127 160 81.5 6 - M10 20 18 x 6 21
CKZ-D85200 5590 980 85 200 280 150 153 175 128.5 8 - M14 25 24 x 6 40
CKZ-D110250 10300 910 110 250 298.5 155 158 220 142 8 - M16 25 28 x 7 50.6
CKZ-D135300 14400 840 135 300 314.5 160 165 265 152 10 - M16 32 35 x 9 77.6
