Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CKZ-D |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 110.00 - 1750.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 19 - 135 Mm | Outer Diameter: | 77 - 300 Mm |
|---|---|---|---|
| Length: | 115 - 314.5 Mm | Torque: | 185 - 14400 N.m |
| Weight: | 2.0 - 77.6 Kg | ||
| Highlight: | Sprag Type Clutch With Oil Storage,1960r/min sprag type clutch,1960r/min cam clutch bearing |
||
Product Description

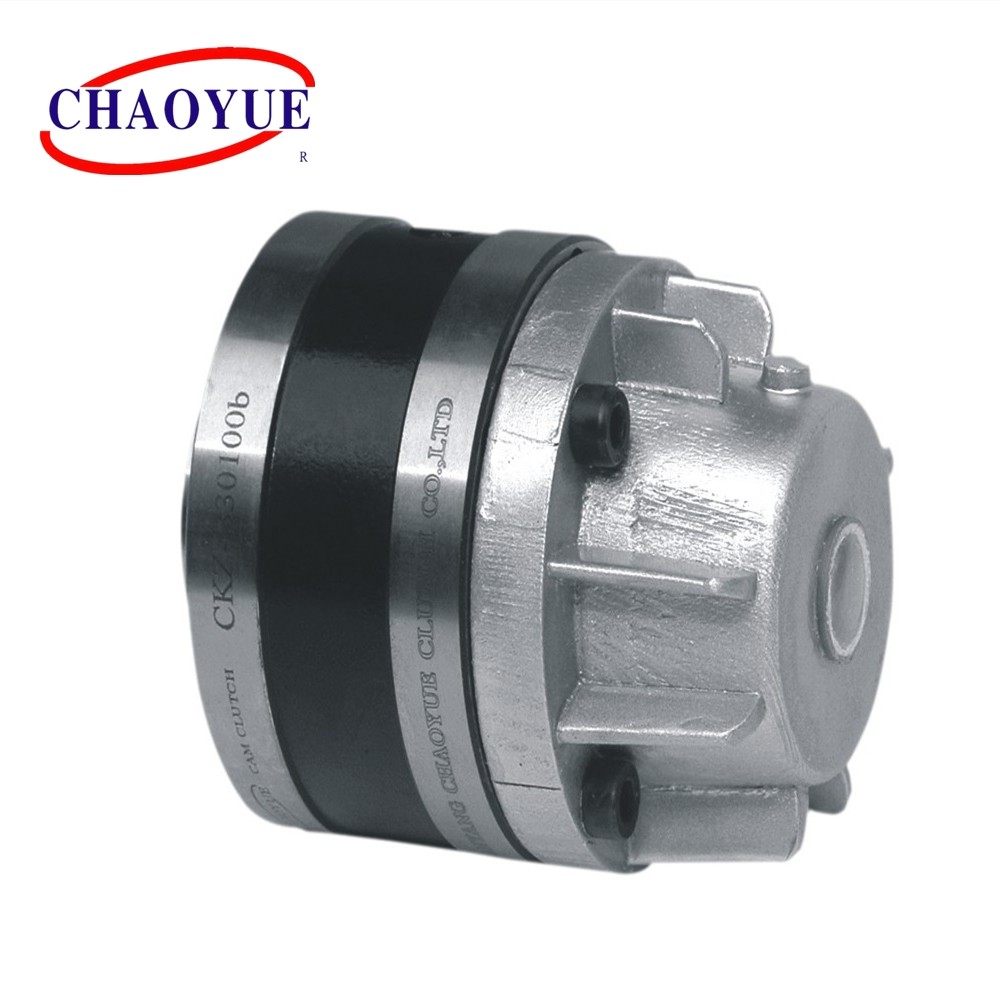

CKZ-D Sprag Backstop Cam Clutch With Oil Storage
Type CKZ-D series sprag type freewheel is consist of CKZ-A series clutches and oil reservoir, only the inner race is designed for overrunning. Units are delivered standard lubricated with oil.
The inner race is keyed to the shaft, and ready for installing in a horizontals postion.
These clutches are suit for backstop or inner race continuous and high speed overrunning applications.

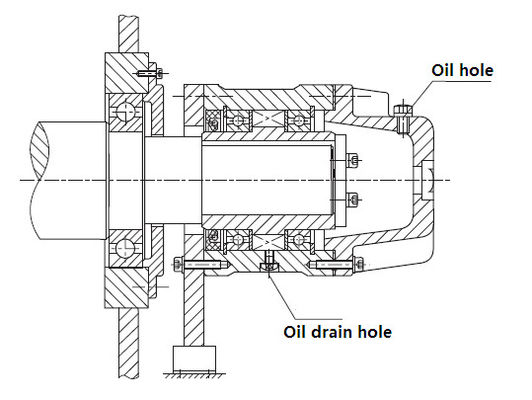

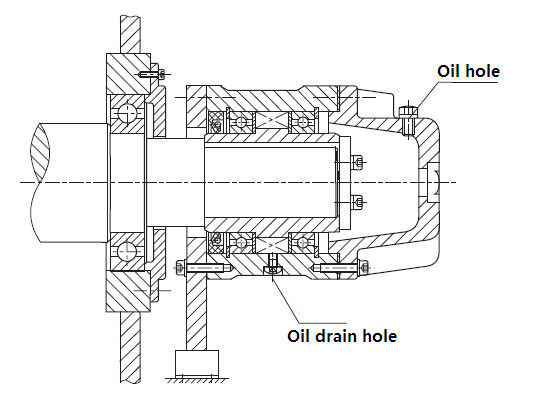

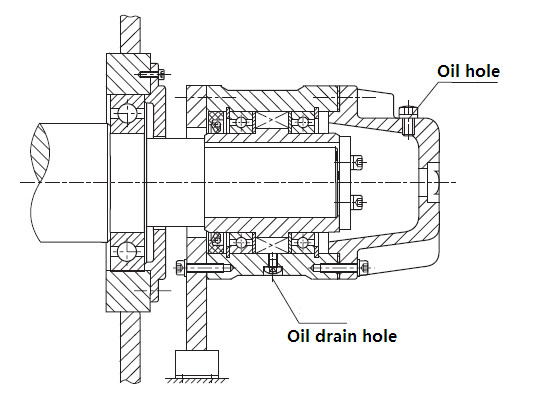

Mounting Example
| Type | Nominal torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Weight [kg] |
|||||||||
| d [H7] |
D [h7] |
A | B | C | F | E | n - M | H | b x t | ||||
| CKZ-D1977 | 185 | 1960 | 19 | 77 | 115 | 60 | 63 | 66 | 53.5 | 4 - M6 | 13 | 5 x 2 | 2 |
| CKZ-D2288 | 317 | 1820 | 22 | 88 | 122 | 67 | 70 | 73 | 53.5 | 4 - M8 | 16 | 5 x 2 | 3 |
| CKZ-D32108 | 953 | 1680 | 32 | 108 | 164 | 86 | 89 | 92 | 66.5 | 4 - M8 | 16 | 7 x 3 | 5.5 |
| CKZ-D50136 | 1847 | 1470 | 50 | 136 | 165 | 92 | 95 | 120 | 71.5 | 6 - M8 | 16 | 12 x 3.5 | 9.5 |
| CKZ-D70180 | 3460 | 1050 | 70 | 180 | 207 | 124 | 127 | 160 | 81.5 | 6 - M10 | 20 | 18 x 6 | 21 |
| CKZ-D85200 | 5590 | 980 | 85 | 200 | 280 | 150 | 153 | 175 | 128.5 | 8 - M14 | 25 | 24 x 6 | 40 |
| CKZ-D110250 | 10300 | 910 | 110 | 250 | 298.5 | 155 | 158 | 220 | 142 | 8 - M16 | 25 | 28 x 7 | 50.6 |
| CKZ-D135300 | 14400 | 840 | 135 | 300 | 314.5 | 160 | 165 | 265 | 152 | 10 - M16 | 32 | 35 x 9 | 77.6 |
