China One Way Overrunning Clutch manufacturer

Lower Start Speed 780 N.M Diameter 40mm One Way Clutch Assembly Sealed

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKL-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 170.00 - 2350.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 25 - 100 Mm Outer Diameter: 130 - 500 Mm
Length: 127 - 427 Mm Weight: 6.4 - 230 Kg
Torque: 230 - 12300 N.m
High Light:

780 n.m one way clutch assembly

,

diameter 40mm one way clutch assembly

,

diameter 40mm cam clutch bearing

Product Description

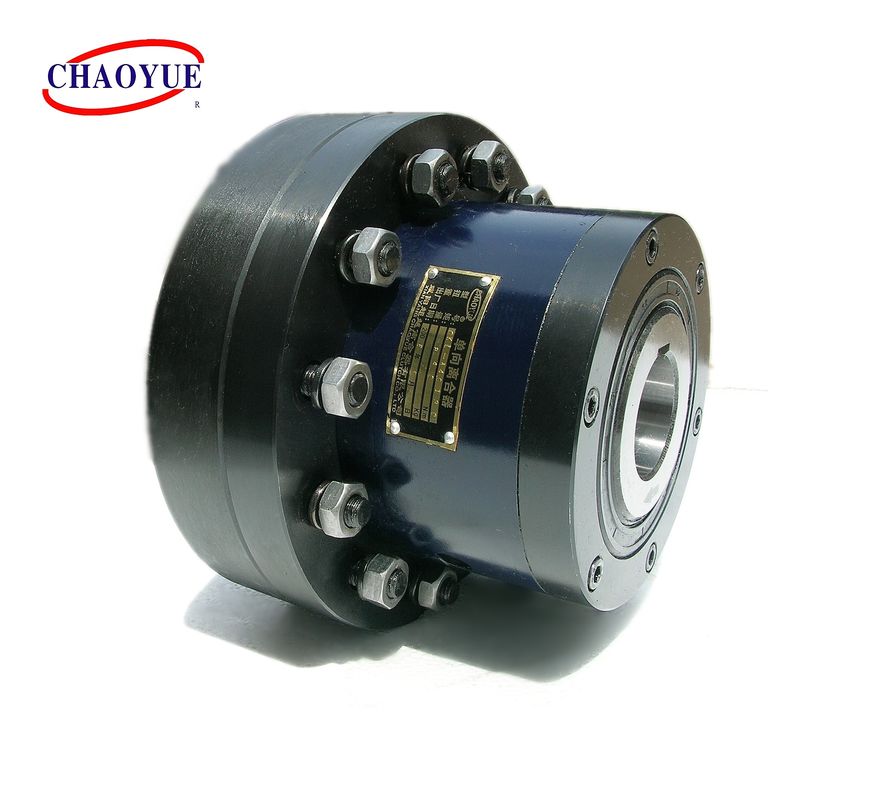

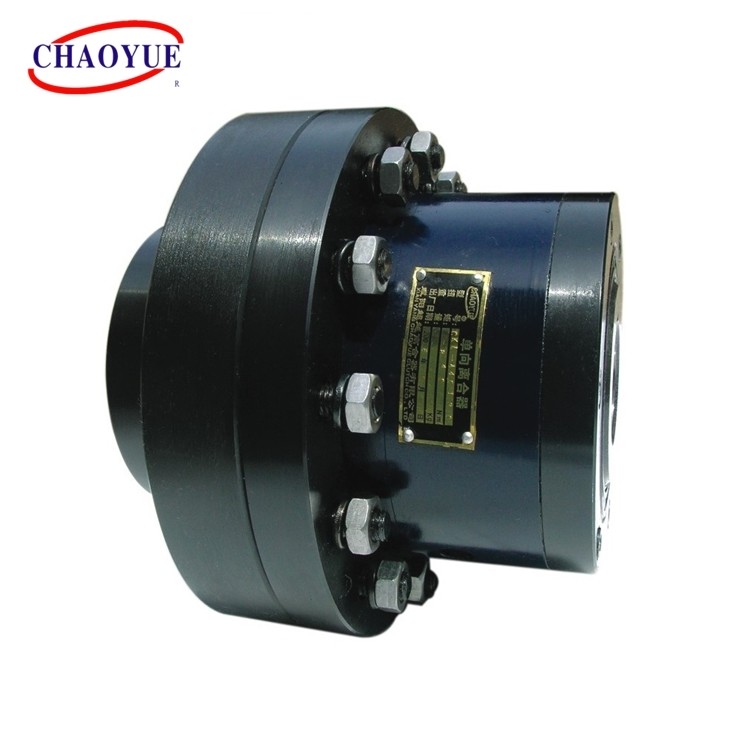

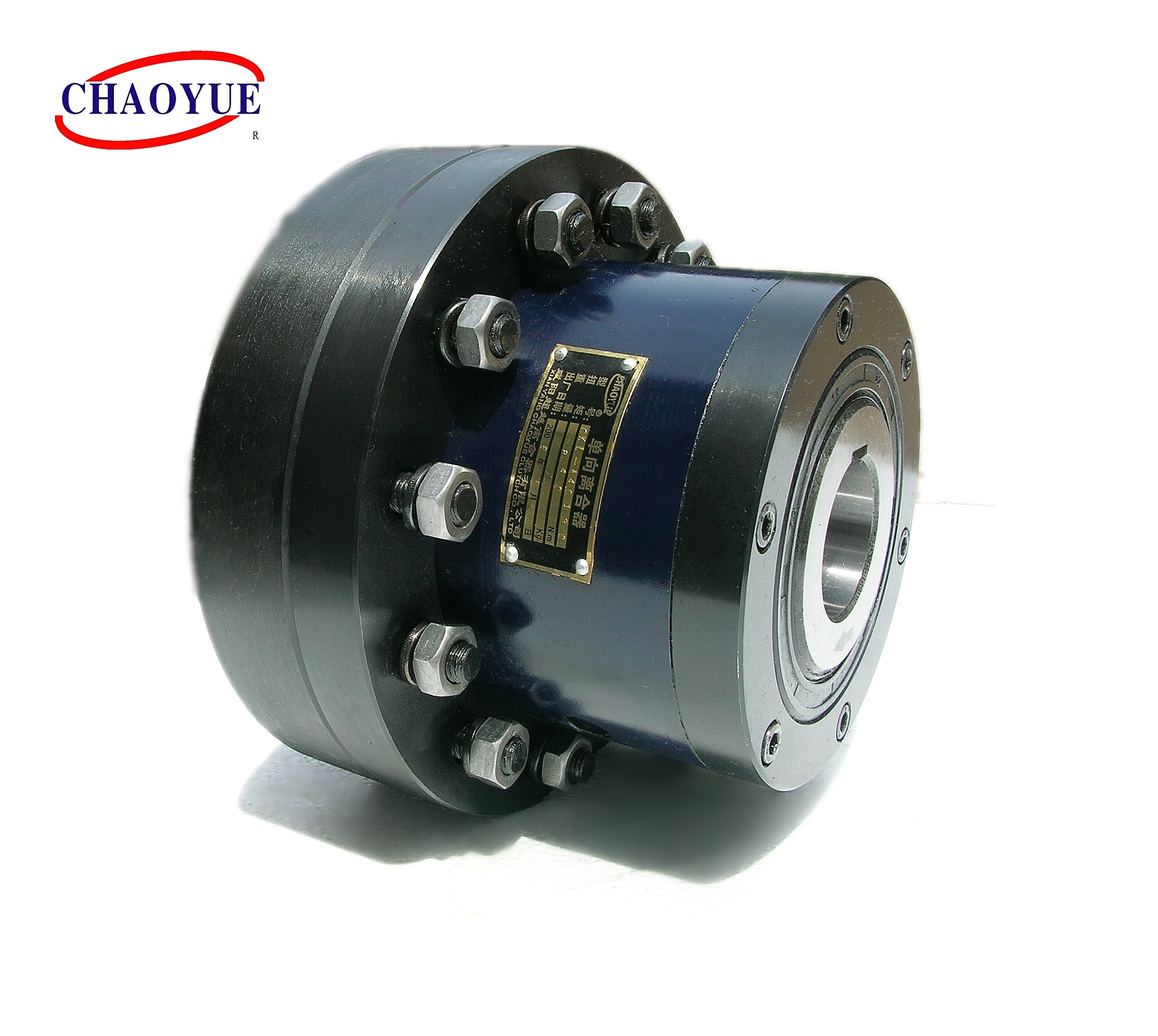

CKL-B Non contact sprag one way freewheel coupling shaft bearing



Type CKL-B is a centrifugal sprag type freewheels, self contained, sealed and bearing supported. It mainly used in occasion of high overrunning speed and lower start speed. It needs grease or oil when used.



It has same character and dimension as CKL-A.



This combination is used as overrunning clutch and extensive used in mechanism of packing, metallurgy, mine and so on.






Mounting Example

Lower Start Speed 780 N.M Diameter 40mm One Way Clutch Assembly Sealed 0


Lower Start Speed 780 N.M Diameter 40mm One Way Clutch Assembly Sealed 1

Type Nominal torque
[N.m]
Overrunning Limiting Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
nmin nmax d [H7] dk [H7] D D1 L L1 L2 B bn x tn
CKL-B2590 230 800 2500 25 20 - 40 90 130 127 50 60 17.5 4 x 1.8 6.4
CKL-B30100 400 780 2500 30 20 - 50 100 160 151 60 66 20 5 x 2.3 11
CKL-B35110 580 740 2500 35 25 - 65 110 190 177 75 75 19 6 x 2.8 17
CKL-B40125 780 720 2500 40 25 - 65 125 190 183 75 86 17 6 x 2.8 19
CKL-B45130 840 660 2500 45 25 - 65 130 190 184 75 86 17 6 x 2.8 19
CKL-B50150 1400 610 2000 50 30 - 75 150 225 213 90 92 25 14 x 3.8 31
CKL-B55160 1600 600 2000 55 35 - 90 160 270 233 100 104 29.5 16 x 4.3 47
CKL-B60170 2200 490 2000 60 35 - 90 170 270 244 94 114 30 18 x 4.4 49
CKL-B70190 3000 480 2000 70 45 - 110 190 340 318 140 134 38.5 20 x 4.9 90
CKL-B80210 6800 450 1500 80 55 - 125 210 380 340 160 142 35 20 x 4.9 107
CKL-B90230 6500 420 1500 90 65 - 140 230 440 369 155 159 50 25 x 6.4 170
CKL-B100270 12300 400 1500 100 75 - 160 270 500 427 200 182 40.5 28 x 6.4 230
