High Torque 22500N.M Freewheel Clutch Bearing For Gear Reducer Box

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKF-B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 100.00 - 950.00 / pc
Packaging Details: Depends on the size of products.
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Bore Size: 20 - 150 Mm Ourter Diameter: 90 - 400 Mm
Thickness: 35 - 105 Mm Torque: 260 - 38 500 N.m
Weight: 1.5 - 73 Kg Application: Gear Box, Gear Reducer, Machinery
Package: Carton Box / Wooden Box
High Light:

high torque freewheel clutch bearing

,

22500N.m freewheel clutch bearing

,

22500N.m one way clutch

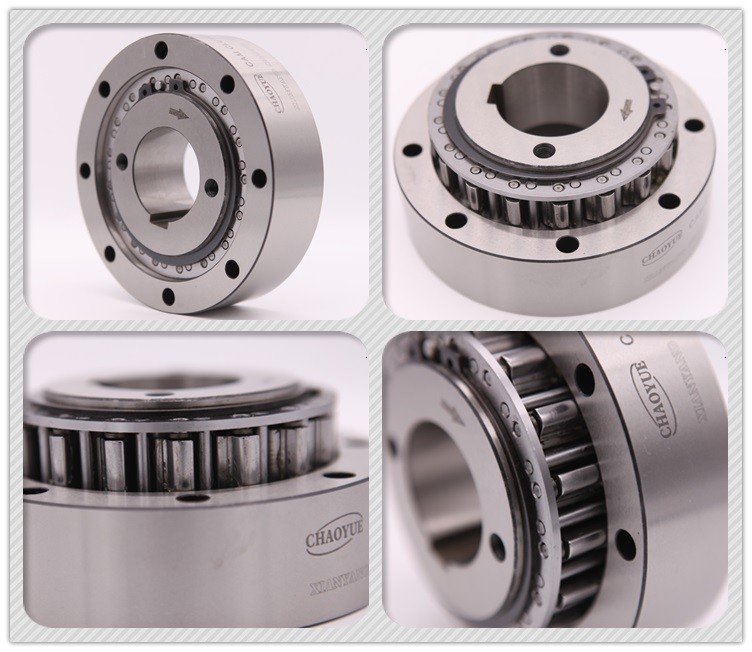

Product Description

Type CKF-B is a centrifugal sprag type freewheel, only the inner race is designed for freewheeling. It is a non self-supported type, bearings must be provided to ensure concentricity of the ineer and outer race. Installation is simple and maintenance free is allowed when sealling condition.



This series is mainly used for backstop, and also used as a clutch of high speed overrunning but lower speed transfering torque.



When used as a backstop, the operating speed should no less than the minimum speed given by the table.



When used as a clutch to transfer torque, the operating speed should not higher than 40% of minimum speed give by the table.






Mounting Example

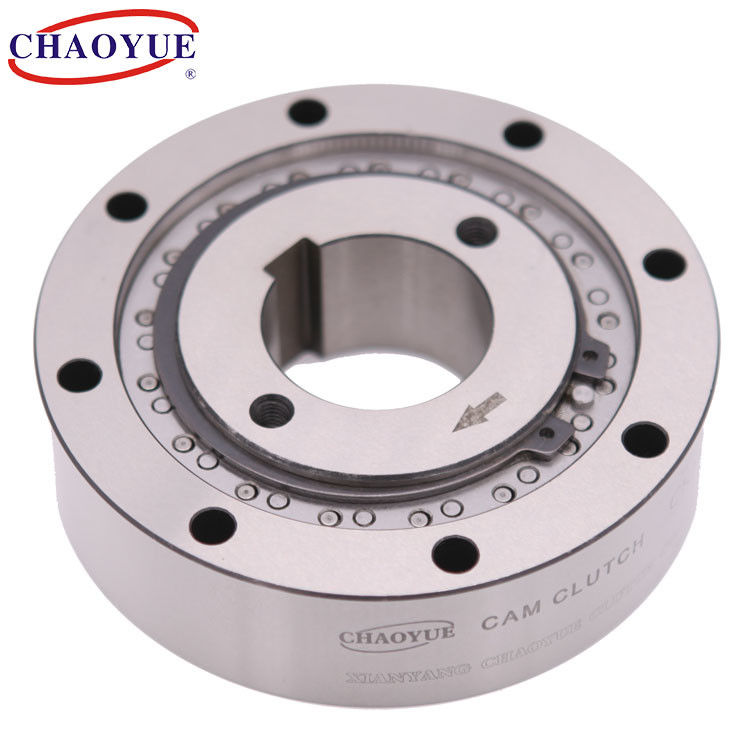

High Torque 22500N.M Freewheel Clutch Bearing For Gear Reducer Box 0

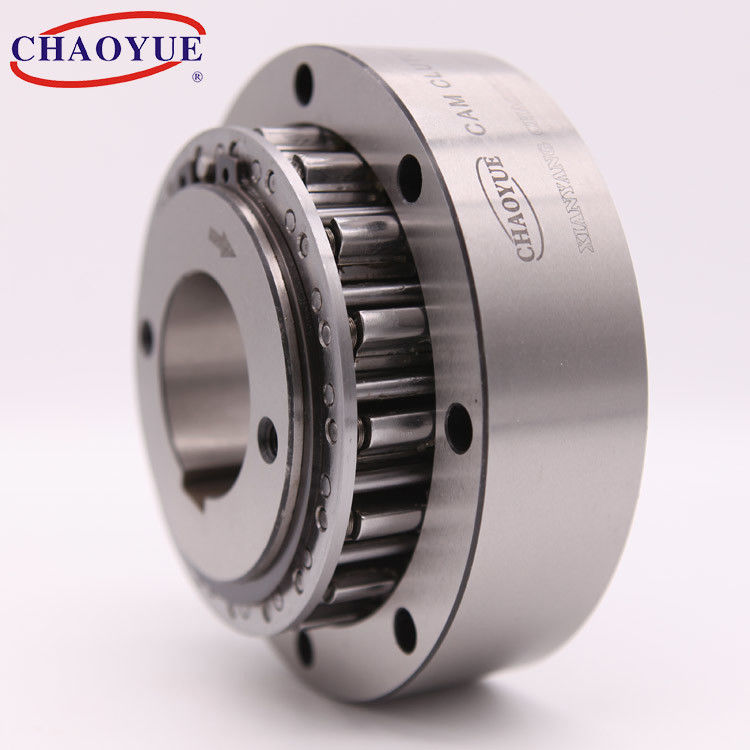

High Torque 22500N.M Freewheel Clutch Bearing For Gear Reducer Box 1





Type Nominal torque
[N.m]
Min rotating speed Max rotating speed Dimension in contour
[mm]
Weight
[kg]
Rated Eccentric 0.2 mm Eccentric 0.4 mm nmin nmax d
[H7]
D
[h7]
E
[Js6]
F G C B A n - d1 bn x tn
CKF-B2090 260 220   875 6000 20 90 66 78 41 35 35 28 6-6.6 6x2.8 1.5
CKF-B2595 320 280   825 6000 25 95 70 82 45 35 35 28 6-6.6 8x3.3 1.6
CKF-B30102 400 360   780 6000 30 102 75 87 50 40 40 30 6-6.6 8x3.3 1.8
CKF-B35110 520 480   740 6000 35 110 82 96 57 40 40 30 6-6.6 10x3.3 2.1
CKF-B40125 720 650   720 5000 40 125 92 108 67 40 40 30 8-6.6 12x3.3 2.9
CKF-B45130 890 720   665 5000 45 130 94 112 69 40 40 30 8-9.0 14x3.8 3.1
CKF-B50150 1260 1000   610 4000 50 150 114 132 89 40 40 30 8-9.0 14x3.8 4.7
CKF-B55160 1660 1400   600 4000 55 160 116 138 91 45 45 34 8-9.0 16x4.3 5.4
CKF-B60175 2350 2150 2000 490 3200 60 175 135 155 95 70 60 48 8-11 18x4.4 8.5
CKF-B70190 2700 2550 2350 480 3200 70 190 140 165 100 70 60 48 12-11 20x4.9 10
CKF-B80210 5200 4500 4000 450 2400 80 210 160 185 120 80 70 48 12-11 22x5.4 14
CKF-B90230 8000 7200 6200 420 2400 90 230 180 206 140 90 80 65 12-13.5 25x5.4 19
CKF-B100280 15000 12000 11000 455 2000 100 280 200 240 160 105 100 65 12-17.5 28x6.4 34
CKF-B130320 22500 19000 18000 415 2000 130 320 235 278 195 105 100 67 12-17.5 32x7.4 44
CKF-B150400 38500 37000 35000 365 2000 150 400 320 360 256 105 100 85 12-17.5 36x8.4 73
