OD 160mm 2080mm Torque Sprag Overrunning Clutch For Packaging Machine

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CK-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 20.00 - 90.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month

Detail Information

Bore Size: 10 - 45 Mm Outer Diameter: 42 - 160 Mm
Torque: 54 - 2080 Mm Thickness: 24 - 39 Mm
Weight: 0.12 - 3.17 Kg
High Light:

OD 160mm Sprag Overrunning Clutch

,

2080mm Torque Sprag Overrunning Clutch

,

2080mm Torque 1 way bearing

Product Description

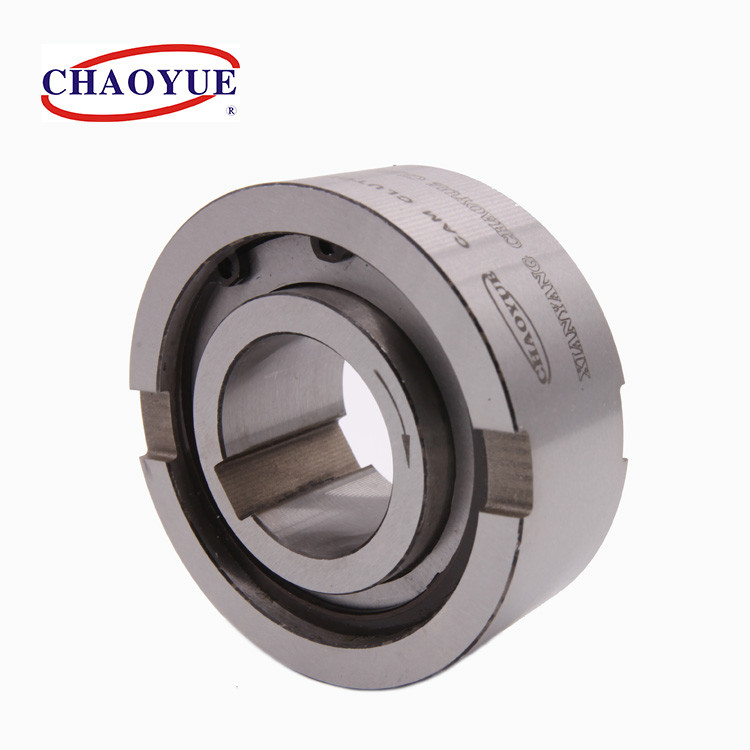

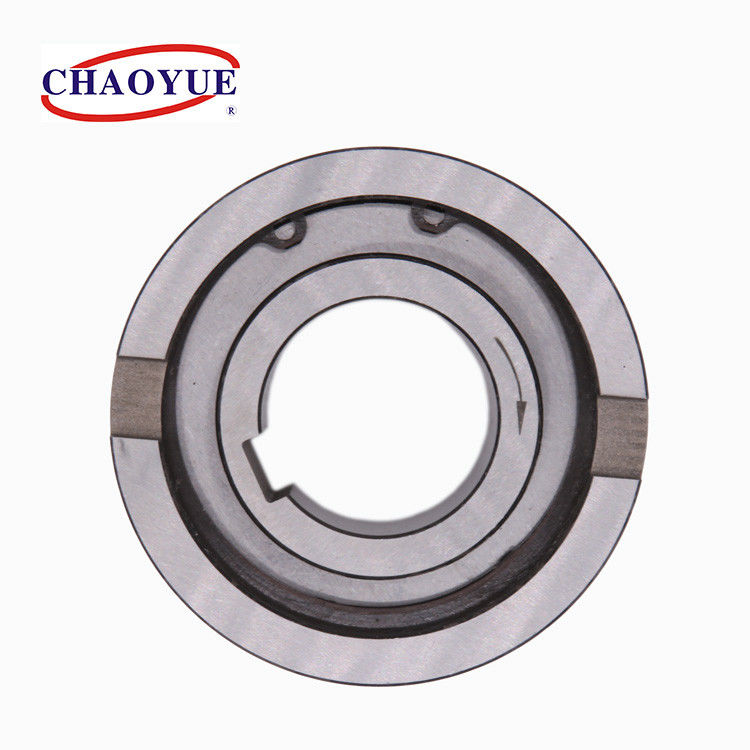

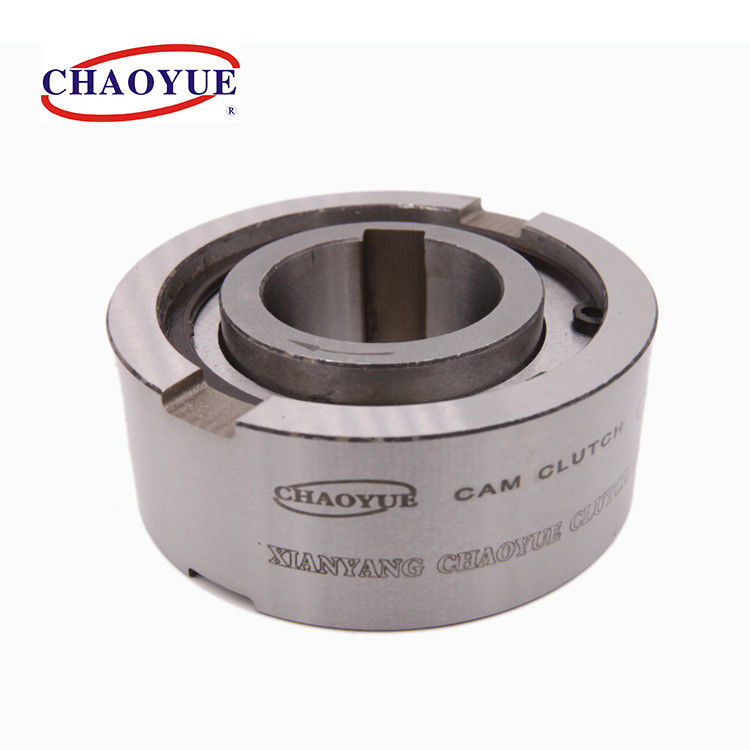

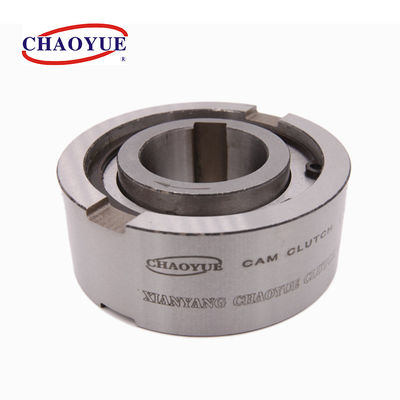

CK-B Sprag freewheel one way overrunning clutch



Type CK-B is a sprag type freewheel non-bearing supported. Radial size is same as a standard ball bearing. Bearings are required to support axial and radial loads. The clutch are grease lubricated before delivery.



A standard installation method is besides a bearing whith the same housing diameter tolerance as mounting example. The inner race is keyed to the shaft, the outer race has h7 tolerance and should be fitted in housing with a k7 tolerance. Additional side notches provide for positive torque transmission.



This model usually use in packaging, printing, papermaking, weaving, chemical machineries.



OD 160mm 2080mm Torque Sprag Overrunning Clutch For Packaging Machine 0






Mounting Example

OD 160mm 2080mm Torque Sprag Overrunning Clutch For Packaging Machine 1

OD 160mm 2080mm Torque Sprag Overrunning Clutch For Packaging Machine 2



Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Bearing
[GB/T276]
Weight
[kg]
Outer Race Size Inner Race Size
Inner Race Outer Race D [h7] B bw x tw d [H7] C bn x tn
CK-B1042 54 1500 500 42 23 8 x 1.5 10 24 3 x 1.4 6302 0.12
CK-B1542 54 1500 500 42 23 8 x 1.5 15 24 3 x 1.4 6302 0.17
CK-B1747 72 1500 500 47 23 8 x 1.5 17 24 3 x 1.4 6303 0.21
CK-B2052 95 1200 450 52 23 8 x 1.5 20 24 4 x 1.8 6304 0.25
CK-B2562 145 1200 450 62 23 8 x 1.5 25 24 4 x 1.8 6305 0.35
CK-B3062 166 1000 400 62 23 8 x 1.5 30 24 4 x 1.8 6206 0.32
CK-B3072 232 1000 400 72 27 8 x 2.0 30 27 8 x 2.0 6306 0.42
CK-B3572 232 1000 400 72 23 8 x 1.5 35 24 5 x 2.3 6207 0.43

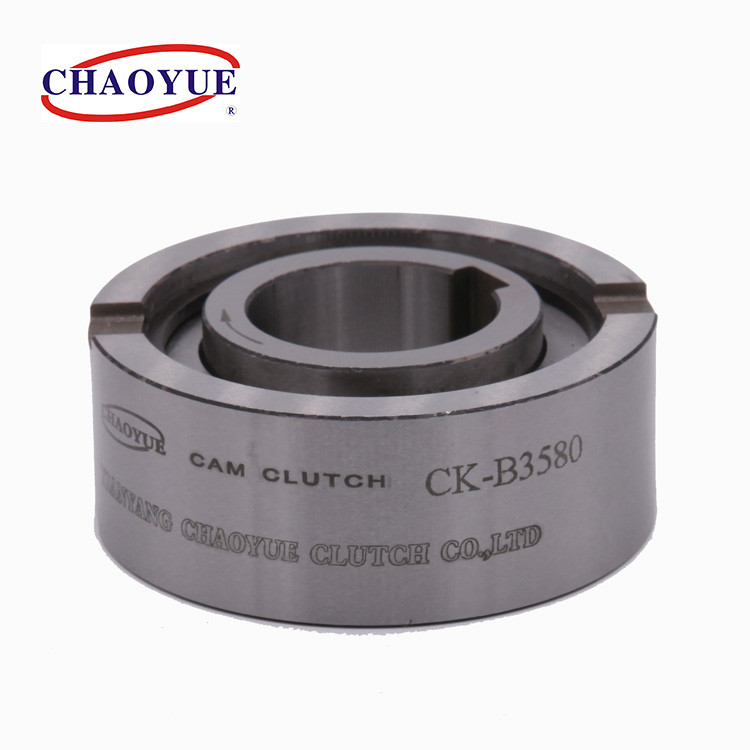

CK-B3580 388 1000 400 80 31 12 x 3.5 35 31 10 x 2.6 6307 0.75
CK-B3585 462 800 300 85 31 10 x 2.3 35 31   6209 0.76
CK-B4080 388 1000 400 80 31 12 x 3.5 40 32 6 x 2.8 6208 0.71
CK-B4090 504 800 300 90 32 12 x 3.5 40 33 6 x 2.8 6308 0.92
CK-B4585 462 800 300 85 31 12 x 3.5 45 32 6 x 2.8 6209 0.77
CK-B45100 600 700 250 100 36 14 x 4.5 45 36 14 x 2.2 6309 0.89
CK-B5090 504 800 300 90 31 12 x 3.5 50 32 10 x 3.3 6210 0.83
CK-B55100 600 700 250 100 31 12 x 3.5 55 32 10 x 3.3 6211 1.02
CK-B60110 680 600 200 110 31 12 x 3.5 60 32 10 x 3.3 6212 1.26
CK-B70125 1220 600 200 125 38 12 x 3.5 70 39 12 x 3.3 6214 1.94
CK-B80140 1580 500 150 140 38 12 x 3.5 80 90 12 x 3.3 6216 2.39
CK-B90160 2080 500 150 160 38 12 x 3.5 90 39 12 x 3.3 6218 3.17
