Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CKZF-C |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 185.00 - 1650.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 30 - 130 Mm | Outer Diameter: | 128 - 380 Mm |
|---|---|---|---|
| Length: | 70 - 214 Mm | Torque: | 300 - 18256 N.m |
| Weight: | 3.90 - 94.0 Kg | ||
| Highlight: | Inner Diameter 50mm freewheel clutch bearing,4000r/min freewheel clutch bearing,4000r/min backstop bearing |
||
Product Description

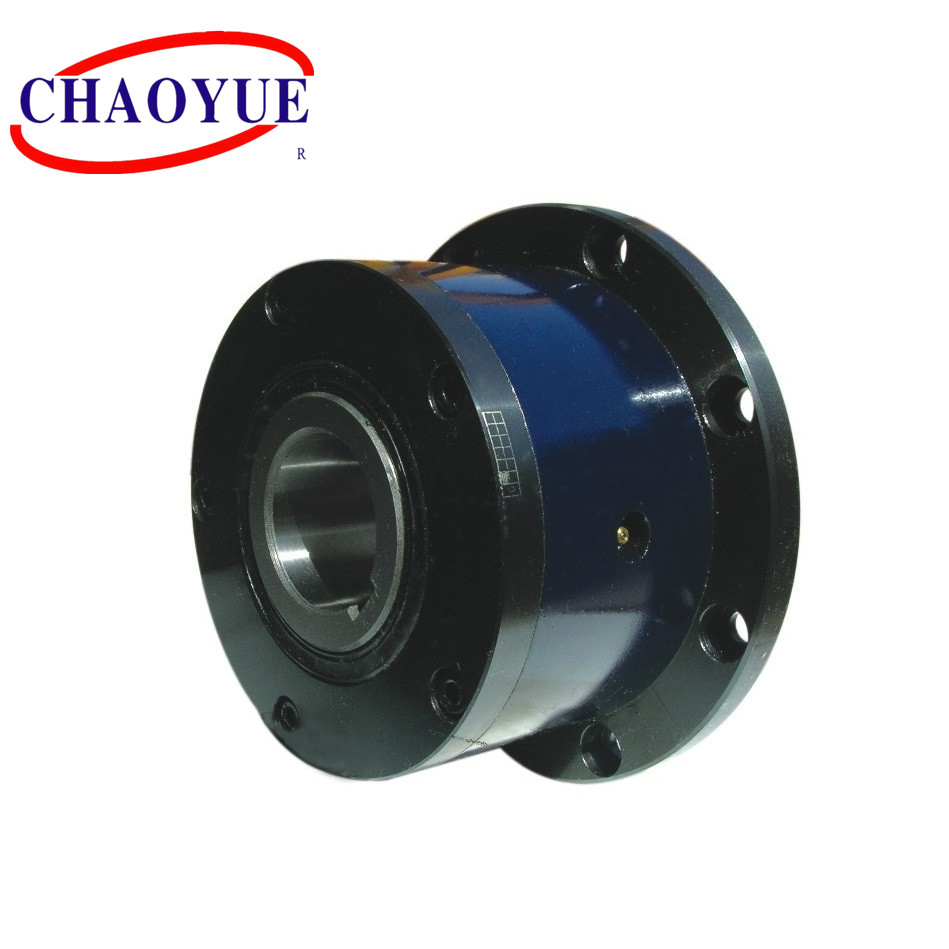

CKZF-C Bearing Supported Flange Connect Overrunning Clutch Bearing
Type CKZF-C is a centrifugal sprag type freewheels with the inner race rotating. Seal and bearing supported. Only the inner race is designed for freewheeling. The unit is delivered grease lubricated.
The inner race have a keyway, outer race and rabbet of flange connect parts. Teady for either horizontal or vertical installation.
It is designed for overrunning clutch. Typically used in dual drives.
Mounting Example

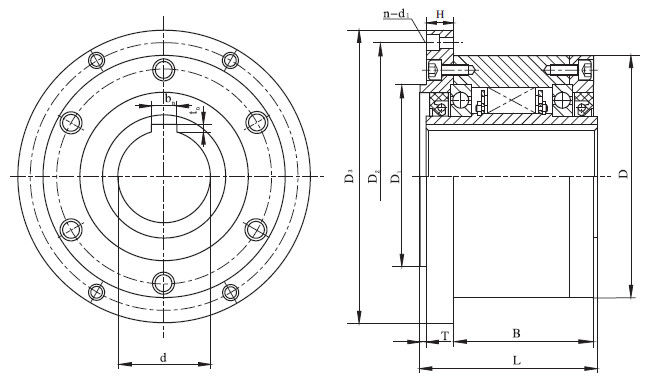

| Type | Nominal torque [N.m] |
Min non-contact rotating speed | Max non-contact rotating speed | Dimension in contour [mm] |
Weight [kg] |
||||||||||
| nmin | nmax | d [H7] |
D | D1 [h8] |
D2 | D3 | H | B | L | T | n - d1 | bn x tn | |||
| CKZF-C30100 | 300 | 780 | 6000 | 30 | 100 | 75 | 114 | 128 | 10 | 57 | 70 | 3.0 | 6 - 6.6 | 8 x 3.3 | 3.9 |
| CKZF-C35110 | 370 | 740 | 6000 | 35 | 110 | 80 | 124 | 140 | 13 | 58.5 | 75 | 3.5 | 6 - 6.6 | 10 x 3.3 | 4.9 |
| CKZF-C40125 | 700 | 720 | 5000 | 40 | 125 | 100 | 142 | 160 | 14 | 68.5 | 88 | 4.5 | 8 - 9.0 | 12 x 3.3 | 7.5 |
| CKZF-C45130 | 702 | 665 | 5000 | 45 | 130 | 100 | 146 | 165 | 15 | 68.5 | 88 | 3.5 | 8 - 9.0 | 14 x 3.8 | 7.8 |
| CKZF-C50150 | 1312 | 610 | 4000 | 50 | 150 | 110 | 166 | 185 | 14 | 78 | 97 | 4.0 | 8 - 9.0 | 14 x 3.8 | 10.8 |
| CKZF-C55160 | 1483 | 600 | 4000 | 55 | 160 | 115 | 182 | 204 | 18 | 84 | 106 | 4.0 | 8 - 11 | 16 x 4.3 | 14.0 |
| CKZF-C60170 | 1907 | 490 | 3200 | 60 | 170 | 125 | 192 | 214 | 17 | 101 | 116 | 4.0 | 10 - 11 | 18 x 4.4 | 16.8 |
| CKZF-C70190 | 2511 | 480 | 3200 | 70 | 190 | 140 | 212 | 234 | 18 | 113 | 136 | 4.0 | 10 - 11 | 20 x 4.9 | 20.8 |
| CKZF-C80210 | 3587 | 450 | 2400 | 80 | 210 | 160 | 232 | 254 | 21 | 120.5 | 146 | 4.0 | 10 - 11 | 22 x 5.4 | 27.0 |
| CKZF-C90230 | 6423 | 420 | 2400 | 90 | 230 | 180 | 254 | 278 | 20.5 | 131 | 160 | 4.5 | 10 - 14 | 25 x 5.4 | 40.0 |
| CKZF-C100270 | 11498 | 455 | 2000 | 100 | 270 | 210 | 305 | 335 | 30 | 150 | 184 | 5.0 | 10 - 18 | 28 x 6.4 | 67.0 |
| CKZF-C130310 | 18256 | 415 | 2000 | 130 | 310 | 240 | 345 | 380 | 29 | 181 | 214 | 5.0 | 12 - 18 | 32 x 7.4 | 94.0 |
