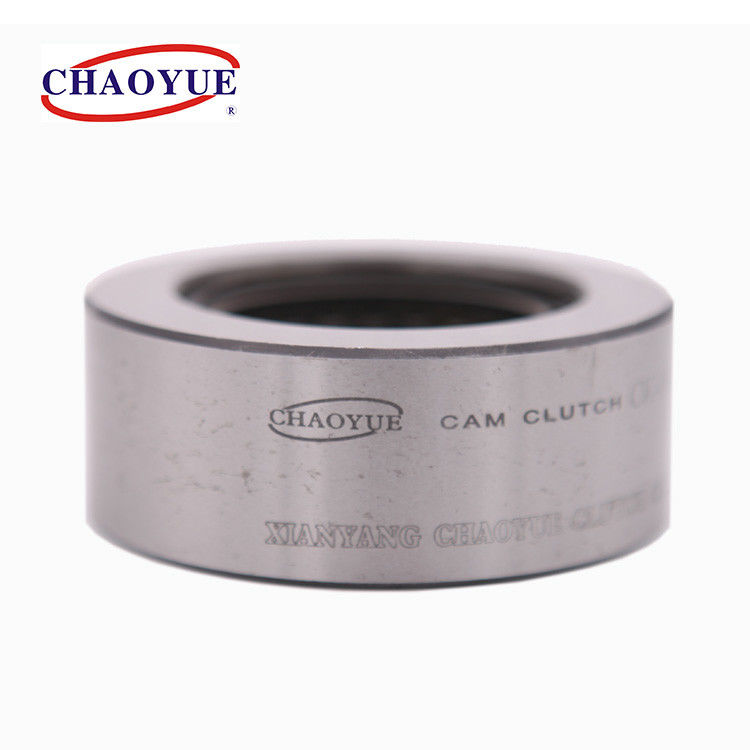

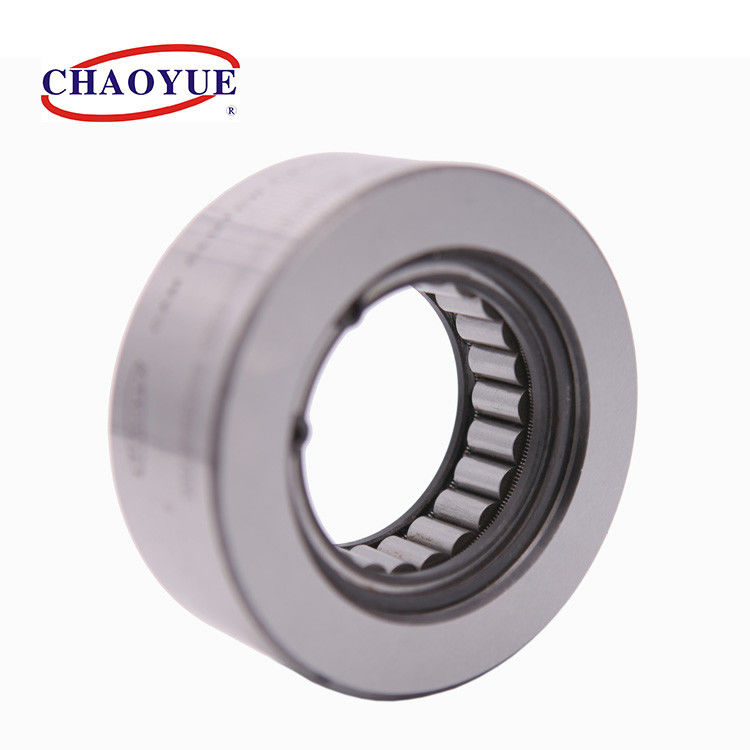

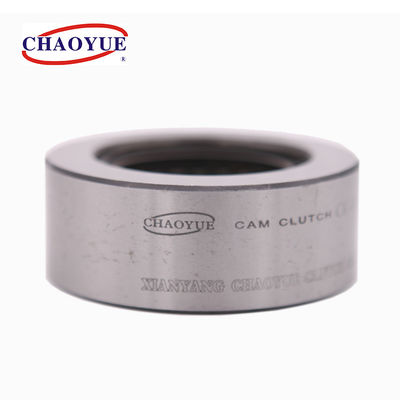

Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch
Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch

Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CK-D
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 15.00 - 60.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Race: 17 - 70 Mm Outer Race: 40 - 125 Mm
Thickness: 25 - 42 Mm Torque: 33 - 1188 N.m
Weight: 0.18 - 2.45 Kg
Highlight:

Non Inner Race Sprag Overrunning Clutch

,

70mm ID Sprag Overrunning Clutch

,

Non Inner Race freewheel one way clutch

Product Description

CK-D Non Inner Race Sprag Overrunning Clutch For Mechanical Industry



Type CK-D is a sprag type freewheel non-bearing and non-inner ring supported. Nominal dia. -direction diameter is a standard ball bearing dimension. Bearings are required to support axial and radial loads. Units are delivered grease lubricated.



The outer race is keyed to the housing, becase sprag contact to shaft, the shaft need hardness HRC 56 - 60 and tolerance h7.



This series extensive used in machinery system of conveyor, hosting, packing, printing, papermaking, corrrugated machine, food and so on.





Mounting Example

Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch 0



Non Inner Race 70mm ID Sprag Overrunning Clutch , Freewheel One Way Clutch 1

TYPE Nominal Torque
[N.m]

Overrunning Limiting Speed

[r / min]

 Dimension in Contour [mm] Bearing
GB/T276-1994		 Weight
[kg]
Inner Race Outer Race D [h7] d [H7] B bw × tw
CK-D1740 33 1680 425 40 17 25 4 × 2.5 6203 0.18
CK-D2047 50 1680 425 47 20 25 5 × 3 6204 0.25
CK-D2552 84 1260 340 52 25 25 5 × 3 6205 0.28
CK-D3062 200 1260 300 62 30 28 8 × 4 6206 0.45
CK-D3572 318 1260 225 72 35 28 8 × 4 6207 0.60
CK-D4080 470 1260 170 80 40 32 10 × 5 6208 0.84
CK-D4580 470 1260 170 80 45 32 8 × 4 6208 0.80
CK-D4585 470 1260 170 85 45 32 10 × 5 6209 0.91
CK-D5090 670 840 170 90 50 32 10 × 5 6210 0.98
CK-D55100 820 840 140 100 55 38 10 × 5 6211 1.49
CK-D60110 1050 840 128 110 60 42 10 × 5 6212 1.95
CK-D65120 1050 840 128 120 65 42 10 × 5 6213 2.33
CK-D70125 1188 700 128 125 70 42 12 × 5 6214 2.45
