| Product Name: | CKZF-C Bearing Supported Flange Connect 300 - 18256 N.M | Inner Diameter: | 30 - 130 Mm |
|---|---|---|---|
| Outer Diameter: | 128 - 380 Mm | Length: | 70 - 214 Mm |
| Torque: | 300 - 18256 N.m | Weight: | 3.90 - 94.0 Kg |
| Highlight: | 40mm ID unidirectional clutch,700N.m unidirectional clutch,700N.m freewheel clutch |
||
Product Description

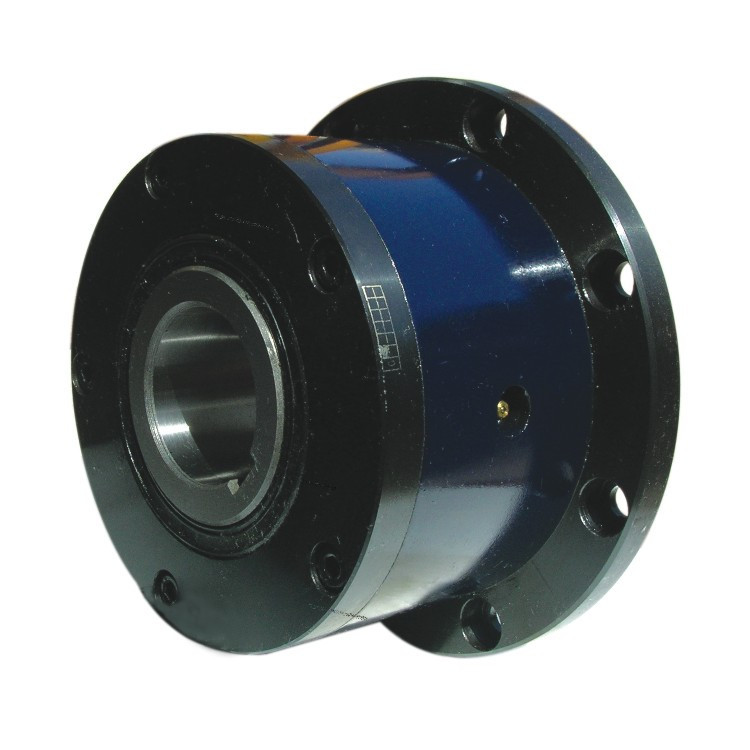

CKZF-C Bearing Supported Flange Connect 300 - 18256 N.M
Characteristics and Applications: CKF-A non-contact type one-way sprag clutch inner ring rotation. The inner ring is designed for only one-way function, no bearing support. You must install the bearing to ensure concentricity of the inner and outer rings of use. When used to prevent the use of the reversal must not be less than the rotational speed of inspection speed beyond the allowable value, the table on the following page specification. This model is mainly used for high speed conditions to prevent reversed, can be used for ultra high-speed operation than the speed of the clutch, keyed low double-speed drive switching means.
Mounting Example
| Type | Nominal torque [N.m] |
Min non-contact rotating speed | Max non-contact rotating speed | Dimension in contour [mm] |
Weight [kg] |
||||||||||
| nmin | nmax | d [H7] |
D | D1 [h8] |
D2 | D3 | H | B | L | T | n - d1 | bn x tn | |||
| CKZF-C30100 | 300 | 780 | 6000 | 30 | 100 | 75 | 114 | 128 | 10 | 57 | 70 | 3.0 | 6 - 6.6 | 8 x 3.3 | 3.9 |
| CKZF-C35110 | 370 | 740 | 6000 | 35 | 110 | 80 | 124 | 140 | 13 | 58.5 | 75 | 3.5 | 6 - 6.6 | 10 x 3.3 | 4.9 |
| CKZF-C40125 | 700 | 720 | 5000 | 40 | 125 | 100 | 142 | 160 | 14 | 68.5 | 88 | 4.5 | 8 - 9.0 | 12 x 3.3 | 7.5 |
| CKZF-C45130 | 702 | 665 | 5000 | 45 | 130 | 100 | 146 | 165 | 15 | 68.5 | 88 | 3.5 | 8 - 9.0 | 14 x 3.8 | 7.8 |
| CKZF-C50150 | 1312 | 610 | 4000 | 50 | 150 | 110 | 166 | 185 | 14 | 78 | 97 | 4.0 | 8 - 9.0 | 14 x 3.8 | 10.8 |
| CKZF-C55160 | 1483 | 600 | 4000 | 55 | 160 | 115 | 182 | 204 | 18 | 84 | 106 | 4.0 | 8 - 11 | 16 x 4.3 | 14.0 |
| CKZF-C60170 | 1907 | 490 | 3200 | 60 | 170 | 125 | 192 | 214 | 17 | 101 | 116 | 4.0 | 10 - 11 | 18 x 4.4 | 16.8 |
| CKZF-C70190 | 2511 | 480 | 3200 | 70 | 190 | 140 | 212 | 234 | 18 | 113 | 136 | 4.0 | 10 - 11 | 20 x 4.9 | 20.8 |
| CKZF-C80210 | 3587 | 450 | 2400 | 80 | 210 | 160 | 232 | 254 | 21 | 120.5 | 146 | 4.0 | 10 - 11 | 22 x 5.4 | 27.0 |
| CKZF-C90230 | 6423 | 420 | 2400 | 90 | 230 | 180 | 254 | 278 | 20.5 | 131 | 160 | 4.5 | 10 - 14 | 25 x 5.4 | 40.0 |
| CKZF-C100270 | 11498 | 455 | 2000 | 100 | 270 | 210 | 305 | 335 | 30 | 150 | 184 | 5.0 | 10 - 18 | 28 x 6.4 | 67.0 |
| CKZF-C130310 | 18256 | 415 | 2000 | 130 | 310 | 240 | 345 | 380 | 29 | 181 | 214 | 5.0 | 12 - 18 | 32 x 7.4 | 94.0 |
