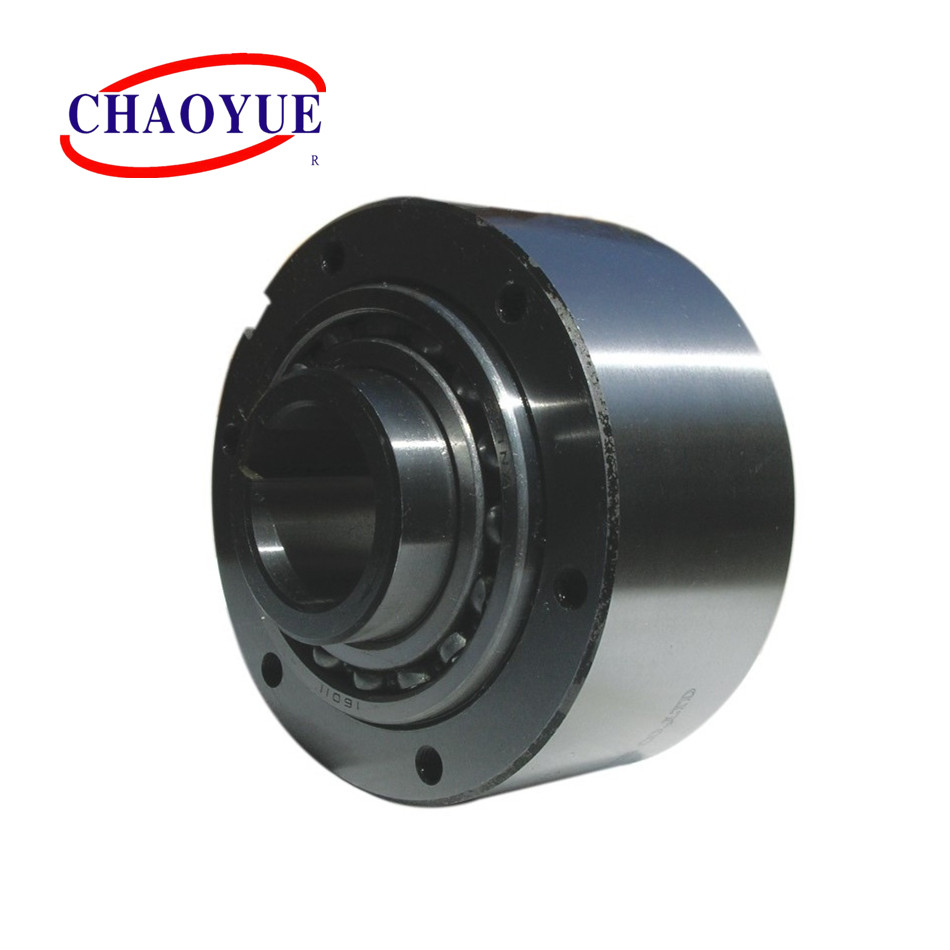

CKZF-B Bearing Supported Non Contact Overrunning Clutch Bearing



Type CKZF-B is a centrifugal sprag tpe freewheels with the inner race rotating. Using two 60 series bearings. Only the outer race is designed for freewheeling. Units are devliered oil lubricated.



The inner race and the outer race have a keyway and the coping have screw. Teary for either horizontal or vertical installation.



Suitable for backstop, or overrunning clutch applications.

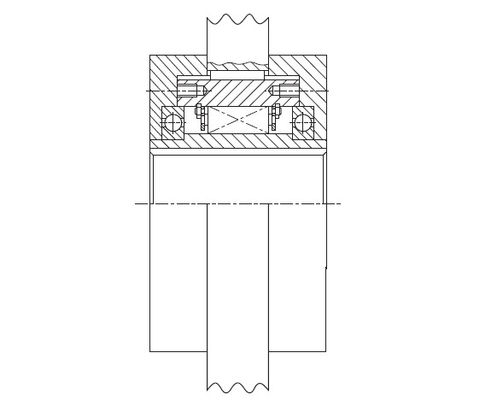

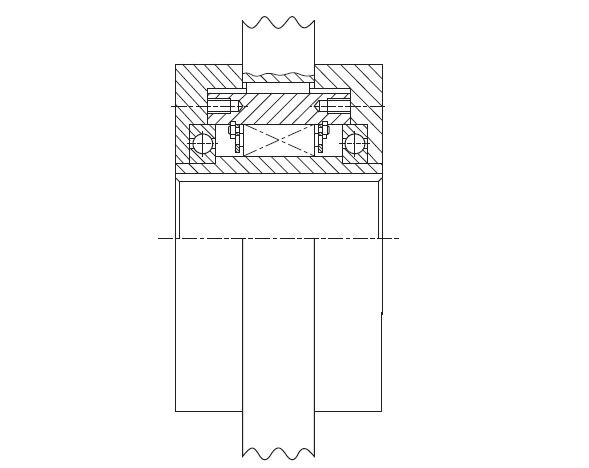

Mounting Example

Bearing Supported Non Contact Thickness 68mm Sprag Overrunning Clutch 0




Bearing Supported Non Contact Thickness 68mm Sprag Overrunning Clutch 1



Type Nominal torque
[N.m]
Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]
Weight
[kg]
nmin nmax d
[H7]
D
[h7]
F D1 B C L n - M H bw x tw bn x tn
CKZF-B30100 250 780 6000 30 100 87 75 51 68 60.5 6 - M6 10 8 x 4.0 8 x 3.3 2.3
CKZF-B35110 416 740 6000 35 110 96 80 55 74 63 6 - M6 12 10 x 5.0 10 x 3.3 3.2
CKZF-B40125 590 720 5000 40 125 108 90 63 86 73 6 - M8 14 12 x 5.0 12 x 3.3 4.3
CKZF-B45130 650 665 4000 45 130 112 95 63 86 73 8 - M8 14 14 x 5.5 14 x 3.8 5.0
CKZF-B50150 1310 610 4000 50 150 132 110 73 94 86 8 - M8 14 14 x 5.5 14 x 3.8 7.5
CKZF-B55160 1480 600 3200 55 160 138 115 73 104 86 8 - M10 16 16 x 6.0 16 x 4.3 9.0
CKZF-B60170 1900 490 3200 60 170 150 125 91 114 105 10 - M10 16 18 x 7.0 18 x 4.4 12.7
CKZF-B70190 2700 480 2400 70 190 165 140 108 134 124 10 - M10 16 20 x 7.5 20 x 4.9 14.5
CKZF-B80210 4502 450 2400 80 210 185 160 106 144 124 10 - M10 16 22 x 9.0 22 x 5.4 19.0
CKZF-B90230 7000 420 2000 90 230 206 180 114 158 143 10 - M12 20 22 x 9.0 25 x 5.4 29.5
CKZF-B100270 11400 420 2000 100 270 240 210 121 182 153 10 - M16 24 28 x 10 28 x 6.4 42.5
CKZF-B130310 15100 415 2000 130 310 278 240 169 212 194 12 - M16 24 32 x 11 32 x 7.4 70.0
