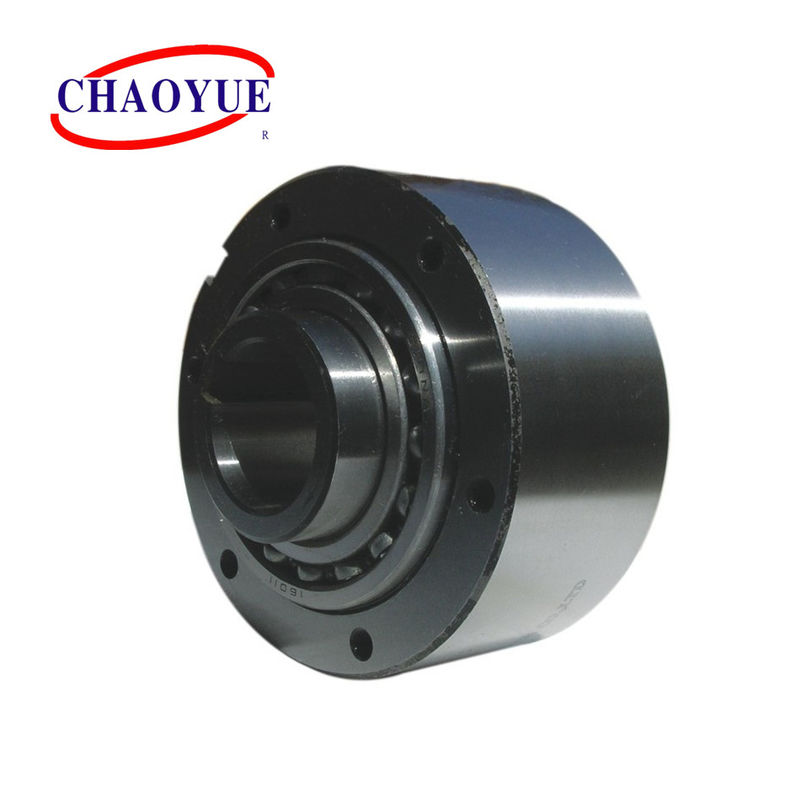

Black 124mm Length 3520N.M One Way Clutch Bearing For Industies
Black 124mm Length 3520N.M One Way Clutch Bearing For Industies Black 124mm Length 3520N.M One Way Clutch Bearing For Industies

Black 124mm Length 3520N.M One Way Clutch Bearing For Industies

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZF-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 165.00 - 1300.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 30 - 130 Mm Outer Diameter: 100 - 310 Mm
Thickness: 68 - 212 Mm Torque: 340 - 10870 N.m
Weight: 2.3 - 70.0 Kg
Highlight:

3520N.m one way clutch bearing

,

124mm length one way clutch bearing

,

3520N.m one way roller bearing

Product Description

CKZF-A Chemical Machinery Overrunning Clutch Bearing For Industies



Type CKZF-A is centrifugal sprag type freewheel with the inner race totating. Using two 60 series bearings. Only the inner race is designed for freewheeling. Units are delivered oil lubricated.



The inner race and the outer race have a keyway and the coping have screw. Teary for either horizontal or vertical installation.



Suitable for backstop, or overrunning clutch applications.

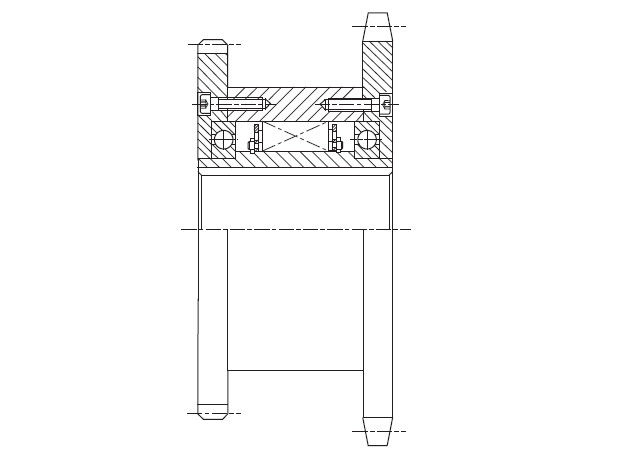

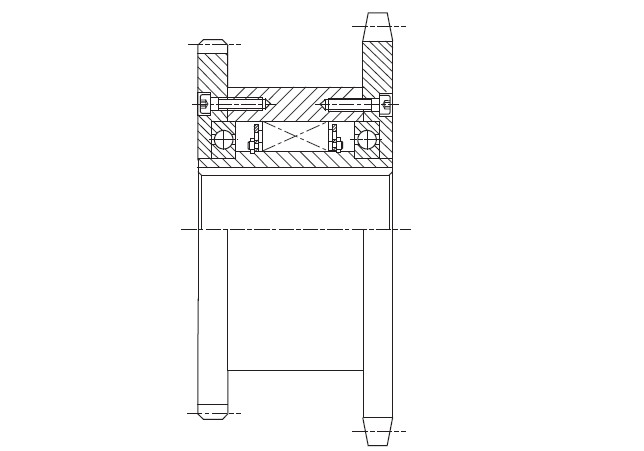

Mounting Example



Black 124mm Length 3520N.M One Way Clutch Bearing For Industies 0



Black 124mm Length 3520N.M One Way Clutch Bearing For Industies 1



Type Nominal torque
[N.m]		 Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]		 Weight
[kg]
nmin nmax d
[H7]		 D
[h7]		 F D1 B C L n - M H bw x tw bn x tn
CKZF-A30100 340 780 6000 30 100 87 75 51 68 60.5 6 - M6 10 8 x 4.0 8 x 3.3 2.3
CKZF-A35110 380 740 6000 35 110 96 80 53 74 63 6 - M6 12 10 x 5.0 10 x 3.3 3.2
CKZF-A40125 550 720 5000 40 125 108 90 62 86 73 6 - M8 14 12 x 5.5 12 x 3.3 4.3
CKZF-A45130 860 665 5000 45 130 112 95 62 86 73 8 - M8 14 14 x 5.5 14 x 3.8 5.0
CKZF-A50150 1310 610 4000 50 150 132 110 73 94 86 8 - M8 14 14 x 5.5 14 x 3.8 7.5
CKZF-A55160 1480 600 4000 55 160 138 115 73 104 86 8 - M10 16 16 x 6.0 16 x 4.3 9.0
CKZF-A60170 1200 490 3200 60 170 150 125 91 114 105 10 - M10 16 18 x 7.0 18 x 4.4 12.7
CKZF-A70190 3520 480 3200 70 190 165 140 108 134 124 10 - M10 16 20 x 7.5 20 x 4.9 14.5
CKZF-A80210 4100 450 2400 80 210 185 160 106 144 124 10 - M10 16 22 x 9.0 22 x 5.4 19.0
CKZF-A90230 6046 420 2400 90 230 206 180 114 158 143 10 - M12 20 22 x 9.0 25 x 5.4 29.5
CKZF-A100270 10450 455 2000 100 270 240 210 121 182 153 10 - M16 24 28 x 10 28 x 6.4 42.5
CKZF-A130310 10870 415 2000 130 310 278 240 169 212 194 12 - M16 24 32 x 11 32 x 7.4 70.0
