Home ProductsSprag Overrunning Clutch800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment

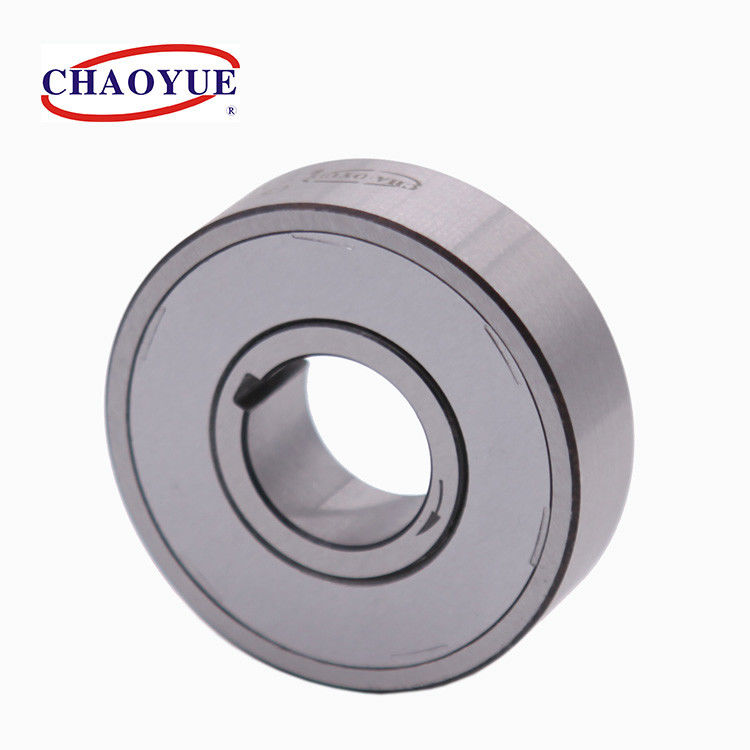

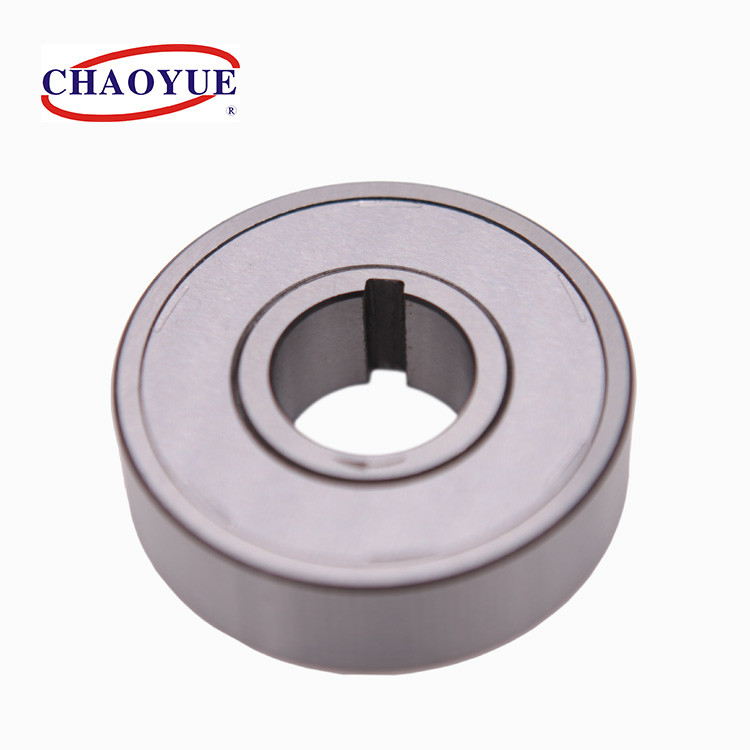

800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment
800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment 800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment

800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CK-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 20.00 - 100.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 20 - 90 Mm Outer Diameter: 52 - 160 Mm
Thickness: 15 - 30 Mm Torque: 50 - 1560 N.m
Weight: 0.20 - 2.09 Kg
Highlight:

800r/min freewheel one way clutch

,

22mm thickness freewheel one way clutch

,

800r/min one way rotation bearing

Product Description

CK-C Sprag One Way overrunning Clutch Freewheel For Mechanical Equipment



Type CK-C is a sprag type freewheel non-bearing supported. Nominal dia. direction diameter is a standard ball bearings dimension. Bearing are required to support axial and radial loads. Units are delivered grease lubricated.



A standard arrangment is to install this type besides a bearing with the same housing diameter tolerance as mounting example. The inner race is keyed to the shaft. The outer race has n6 tolerance to give a tight fit in k7 housing. But the housing must be strong enough.



This series extensive used in machinery system of packing, printing, papermaking, weaving chemical, medical, food and so on.





Mounting Example

800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment 0



800r/Min 22mm Thickness Freewheel One Way Clutch For Mechanical Equipment 1

Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Bearing
[GB/T276]		 Weight
Outer Race Size Inner Race Size
Inner Race Outer Race D [n6] B d [H7] C bn x tn
CK-C2052 50 1100 420 52 15 20 15 4 x 1.8 6304 0.2
CK-C2562 80 1000 400 62 15 25 15 4 x 1.8 6305 0.21
CK-C3062 95 1000 400 62 15 30 15 4 x 1.8 6206 0.25
CK-C3072 132 1000 400 72 16 30 16 8 x 2.3 6306 0.41
CK-C3572 132 1000 400 72 15 35 15 5 x 2.3 6207 0.37
CK-C4080 300 1000 400 80 22 40 22 6 x 2.8 6208 0.48
CK-C4090 695 800 300 90 30 40 30 6 x 2.8 6308 0.49
CK-C4285 358 800 300 85 22 42 22 10 x 3.3 6209 0.51
CK-C4585 358 800 300 85 22 45 22 10 x 3.3 6209 0.52
CK-C5090 430 800 300 90 22 50 22 10 x 3.3 6210 0.56
CK-C55100 480 700 250 100 22 55 22 10 x 3.3 6211 0.72
CK-C60110 530 600 200 110 22 60 22 10 x 3.3 6212 0.85
CK-C65120 600 600 200 120 22 62 22 12 x 3.3 6213 0.95
CK-C70125 712 600 200 125 22 70 22 12 x 3.3 6214 1.07
CK-C80140 1184 500 150 140 26 80 26 12 x 3.3 6216 1.57
CK-C90160 1560 500 150 160 26 90 26 12 x 3.3 6218 2.09
