Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A
Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A

Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZ-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 100.00 - 275.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 20 - 70 Mm Outer Diameter: 80 - 180 Mm
Thickness: 60 - 124 Mm Toqure: 175 - 3100 N.m
Weight: 1.89 - 15.91 Kg
Highlight:

One Way Backstop Cam Clutch

,

Thickness 124mm Backstop Cam Clutch

,

One Way backstop clutch

Product Description

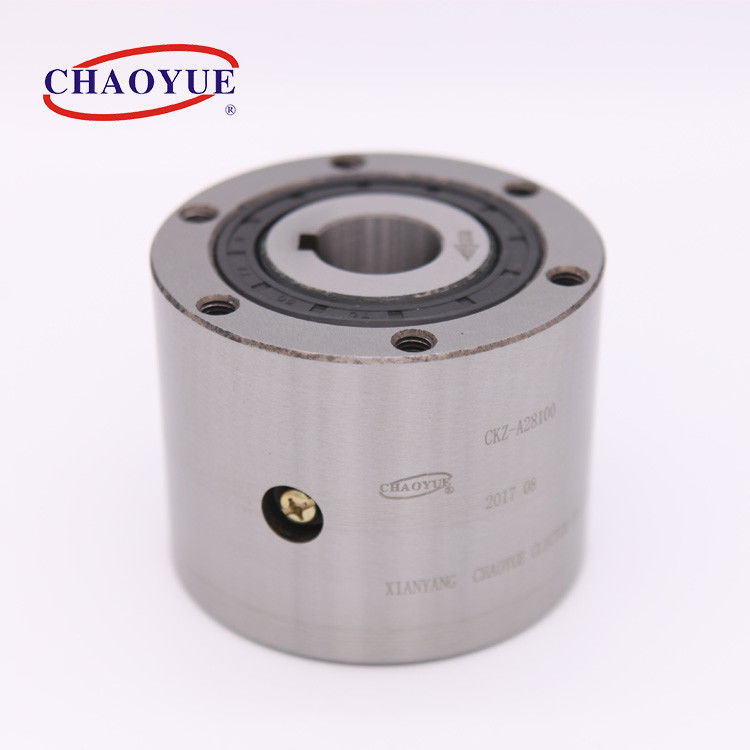

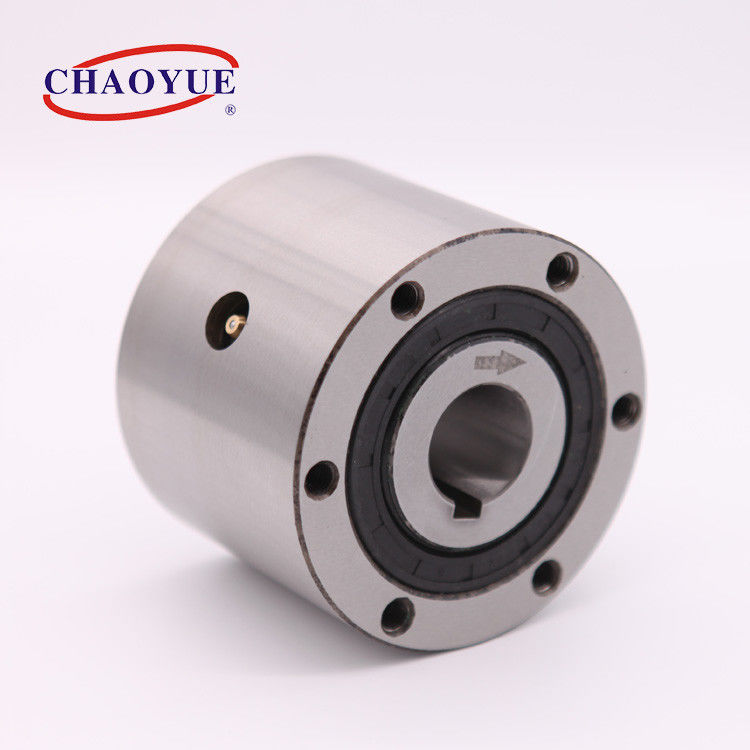

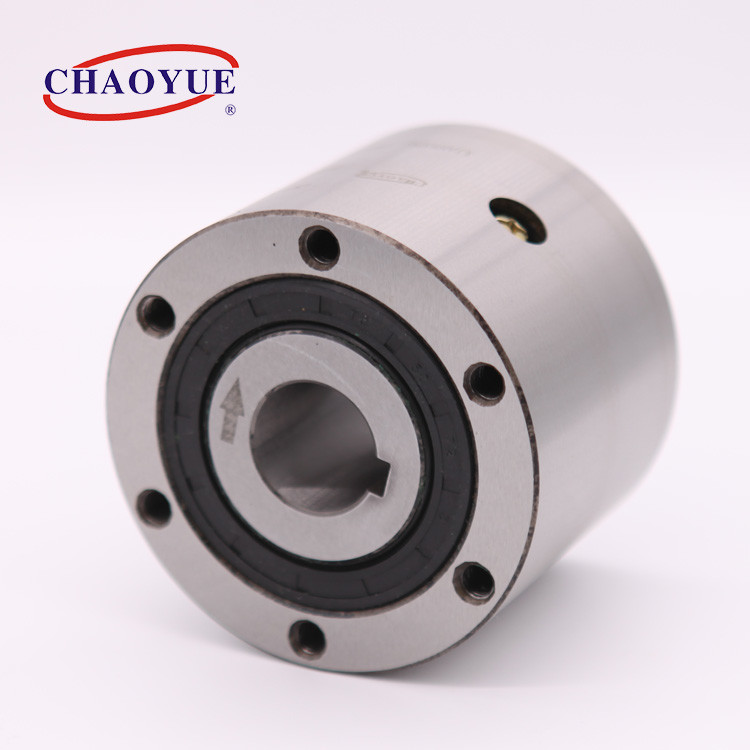

CKZ-A Sprag One Way Backstop Cam Clutch Freewheel Bearing



Type CKZ-A is sprag type freewheels, self contained, sealed and bearing supported, using two ball bearings. Unit is delivered oil or grease lubricated according to the type.



The inner race is keyed to the shaft, the outer race has a h7 tolerance to give a fit in H7 housing and it is screwed to the bond.



This type extensive used in machinery of packing, traffic, metallurgy, mine and so on. to realize backstop or overrunning in dule drives.





Mounting Example

Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A 0

Sprag Type Thickness 124mm One Way Backstop Cam Clutch CKZ-A 1

Type Nominal torque
[N.m]		 Overrunning Limiting Speed
[r / min]		 Dimension in Contour [mm] Weight
[kg]
Outer Race Inner Race
Inner Race Outer Race D [h7] B F n - M H d [H7] C bn x tn
CKZ-A1890 298 1100 460 90 54 75 6 - M6 15 18 56 6 x 2.8 2.46
CKZ-A2080 175 1200 510 80 60 68 4 - M6 15 20 62 6 x 2.8 1.89
CKZ-A2590 298 1100 460 90 49 75 6 - M6 15 25 50 8 x 2.5 2.35
CKZ-A25100 630 1000 425 100 79 88 6 - M8 16 25 80 8 x 3.3 4.12
CKZ-A28100 630 1000 425 100 78 86 6 - M8 20 28 80 8 x 3.3 3.98
CKZ-A30100 630 1000 425 100 78 86 6 - M8 20 30 80 10 x 3.3 3.8
CKZ-A32100 630 1000 425 100 78 86 6 - M8 20 32 80 10 x 3.3 3.71
CKZ-A35100 630 1000 425 100 78 86 6 - M8 20 35 80 10 x 3.3 3.6
CKZ-A38115 1115 900 400 115 90 100 6 - M8 20 38 82 10 x 3.3 4.9
CKZ-A40115 1115 900 400 115 80 100 6 - M8 20 40 82 10 x 3.3 4.89
CKZ-A40120 1160 900 400 120 80 105 6 - M8 20 40 82 10 x 3.3 5.39
CKZ-A42125 1268 900 400 125 90 105 6 - M8 20 42 92 12 x 3.3 6.56
CKZ-A45125 1268 900 400 125 90 110 8 - M8 25 45 92 14 x 3.8 6.51
CKZ-A45138 1580 750 350 138 101 124 6 - M8 20 45 105 12 x 5.0 8.85
CKZ-A45140 1585 750 350 140 95 120 6 - M10 25 45 97 14 x 3.8 8.78
CKZ-A50135 970 800 400 135 70 115 6 - M10 20 50 72 14 x 3.8 6.61
CKZ-A50150 1900 700 300 150 95 130 6 - M10 25 50 97 14 x 3.8 9.99
CKZ-A50160 2290 600 250 160 90 140 6 - M10 20 50 90 14 x 3.8 12.86
CKZ-A50180 3100 500 150 180 124 158 6 - M10 25 50 128 14 x 3.8 16.9
CKZ-A55145 1850 700 300 145 100 130 6 - M8 20 55 102 14 x 3.8 9.42
CKZ-A55160 2290 600 250 160 105 140 6 - M10 25 55 107 16 x 4.3 12.47
CKZ-A55170 2720 600 200 170 110 146 8 - M8 15 55 112 16 x 4.3 14.23
CKZ-A65170 2720 600 200 170 105 150 6 - M10 25 65 107 16 x 4.3 13.63
CKZ-A70180 3100 500 150 180 110 160 6 - M10 25 70 112 20 x 4.9 15.91
