Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | CK-L |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pc |
| Price: | USD 40.00 - 95.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 500 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 15 - 45 Mm | Outer Diameter: | 60 - 135 Mm |
|---|---|---|---|
| Length: | 70 - 112 Mm | Torque: | 86 - 1240 N.m |
| Weight: | 0.58 - 6.00 Kg | ||
| Highlight: | 100mm length sprag clutch bearing,900N.m sprag clutch bearing,900N.m backstop clutch bearing |
||
Product Description

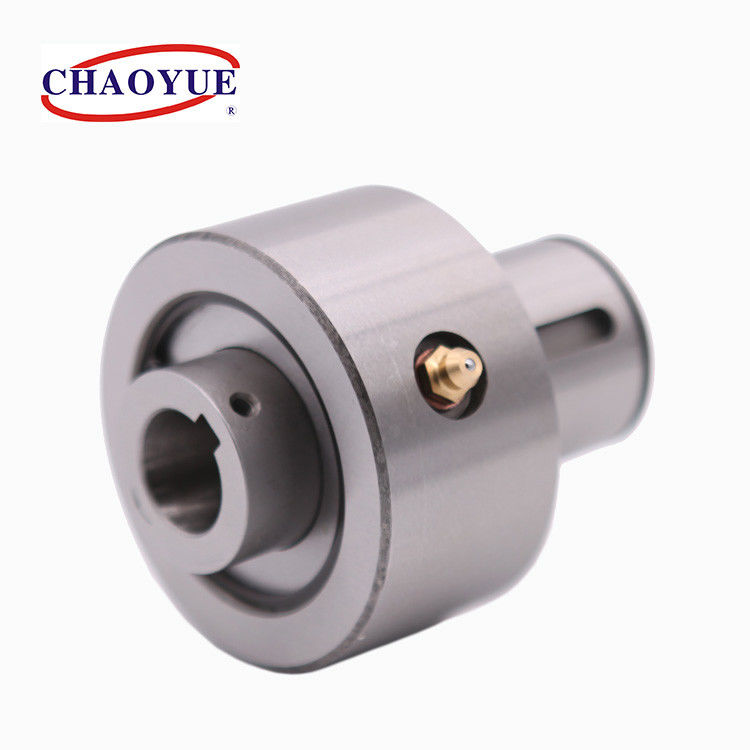

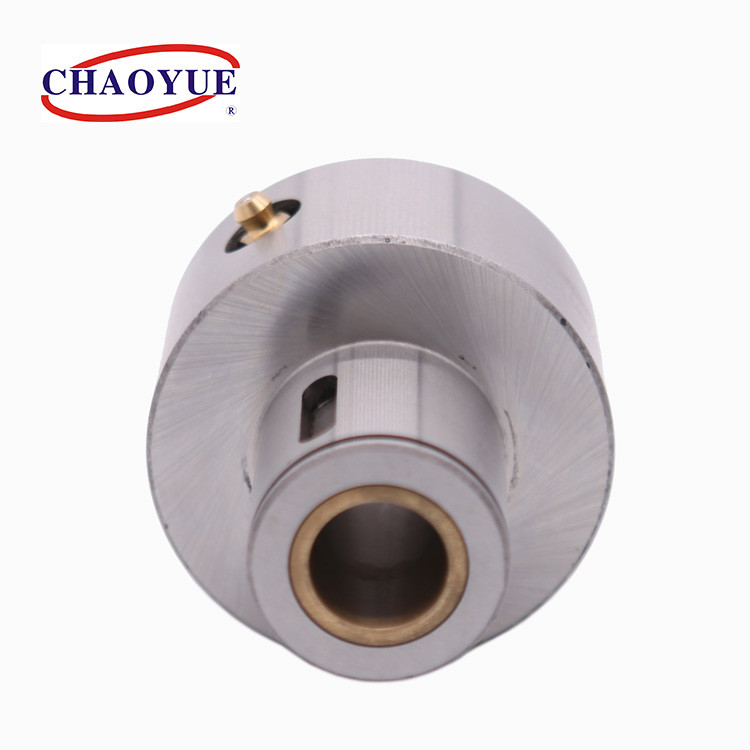

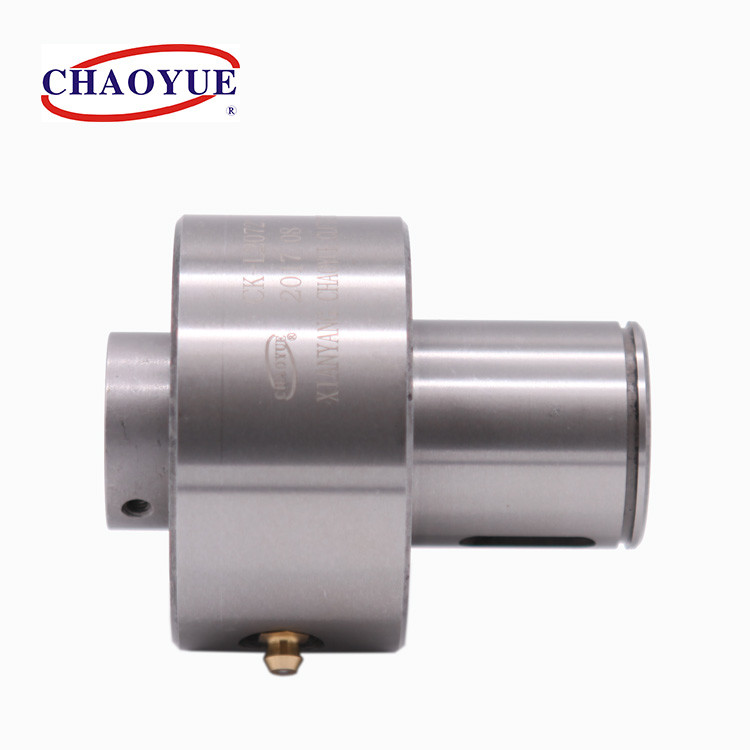

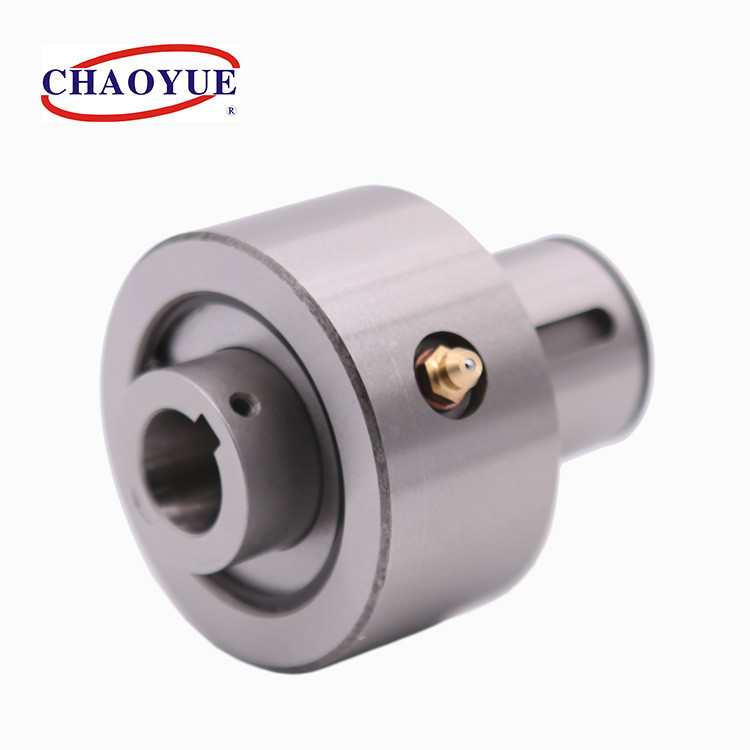

CK-L One Way Overrunning Clutch bearing Coupling For Printing Machinery
Type CK-L is a sprag type freewheels, bearing supported. It mainly used in occasion of lower speed and insufficient space. It needs seal and grease when used.
This series can connect with gears, sprocket. But can not bear flash and use as coupling. Please specify inner race direction of rotation seen from the A side.
This series extensive used in mechanism of packing, printing, weaving and so on, to realise overrunning, indexing and backstop.
Mounting Example
| Type | Nominal Torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Coutour [mm] | Weight | |||||||||||
| Inner Race | Outer Race | d [H7] |
d1 [F8] |
D | D1 [H7] |
F | H | L | m | n | bw x tw | bn x tn | |||
| CK-L1560 | 86 | 1260 | 765 | 15 | 15 | 60 | 32 | 25 | 32 | 70 | 1.3 | 21 | 6 x 3.5 | 4 x 1.5 | 0.58 |
| CK-L2072 | 225 | 1050 | 680 | 20 | 20 | 72 | 38 | 33 | 38 | 82 | 1.7 | 29 | 6 x 3.5 | 6 x 2.8 | 1.17 |
| CK-L2585 | 330 | 840 | 552 | 25 | 25 | 85 | 45 | 33 | 40 | 85 | 1.7 | 28 | 14 x 4.5 | 8 x 3.3 | 1.67 |
| CK-L3085 | 330 | 840 | 550 | 30 | 30 | 85 | 48 | 35 | 35 | 85 | 1.7 | 31 | 8 x 4 | 8 x 3.3 | 1.78 |
| CK-L3095 | 490 | 700 | 340 | 30 | 30 | 95 | 60 | 37 | 41 | 92 | 2.2 | 30 | 8 x 4 | 8 x 3.3 | 2.50 |
| CK-L40115 | 900 | 560 | 255 | 40 | 40 | 115 | 65 | 37 | 50 | 100 | 2.7 | 30 | 12 x 5 | 12 x 3.3 | 3.60 |
| CK-L45135 | 1240 | 490 | 255 | 45 | 45 | 135 | 75 | 41 | 54 | 112 | 2.7 | 35 | 14 x 5.5 | 14 x 3.8 | 6.00 |
