Product Details:
|
|
| Place of Origin: | Shaanxi, China |
|---|---|
| Brand Name: | CHAOYUE |
| Model Number: | B200 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 PCs |
| Price: | USD 20.00 - 60.00 / pc |
| Packaging Details: | Carton box or wooden case depends on the size of products |
| Delivery Time: | 1 - 3 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Inner Diameter: | 16.510 - 79.356 Mm | Outer Diameter: | 40 - 125 Mm |
|---|---|---|---|
| Thickness: | 25 - 42 Mm | Torque: | 33 - 1188 N.m |
| Weight: | 0.23 - 2.40 Kg | ||
| Highlight: | 670N.m Sprag Overrunning Clutch,1020r/min Sprag Overrunning Clutch,670N.m freewheel clutch bearing |
||
Product Description

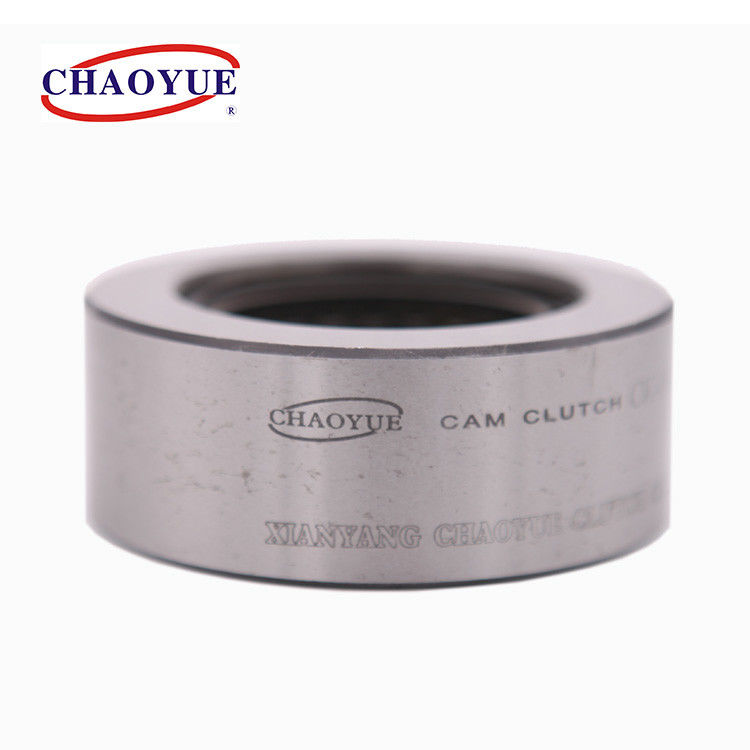

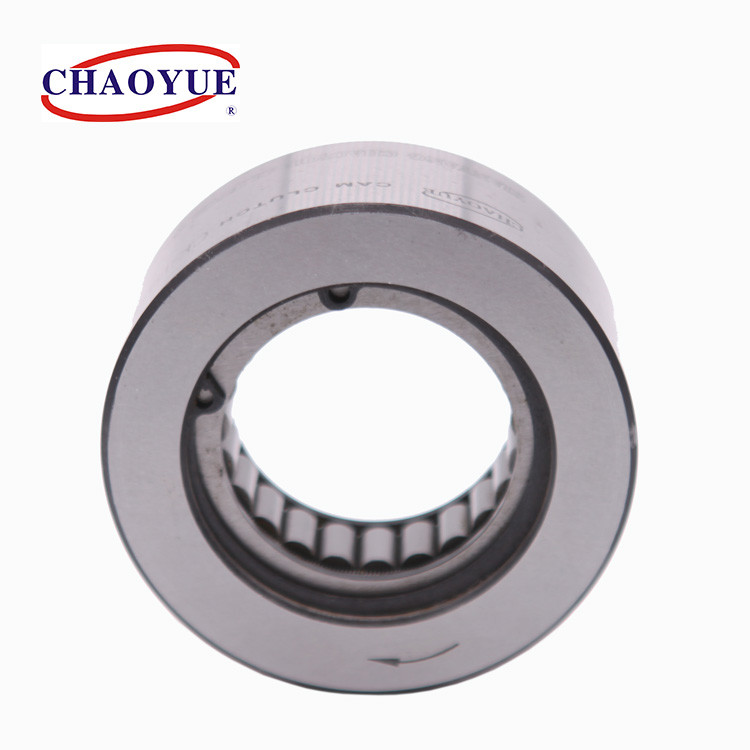

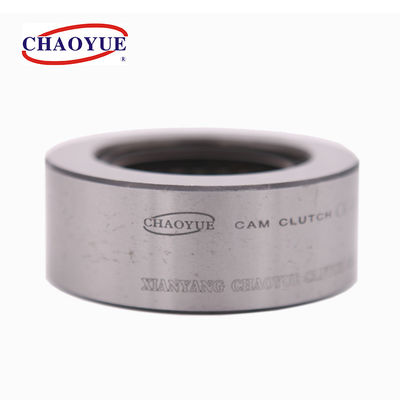

B200 One Way Sprag Overrunning Clutch For Industry Machinery
Type B200 is a sprag type freewheel non-bearing supported and non-inner race clutch. Nominal diameter is a standard ball bearing dimension. Bearings are required to support axial and radial loads. Units are delivered grease lubricated.
The outer race is keyed to the housing, because sprag contact to shaft directly, the shaft must have the hardness HRC 56 - 60 and tolerance h7.
This series extensive used in machinery system of conveyor, hosting, packaging, printing papermaking corrugated and food machinery etc.
Mounting Example
| TYPE | Nominal Torque [N.m] |
Overrunning Limiting Speed [r / min] |
Dimension in Contour [mm] | Bearing GB/T276-1994 |
Weight [kg] |
||||
| Inner Race | Outer Race | D [h7] | d [H7] | B | bw × tw | ||||
| B203 | 33 | 2040 | 500 | 40 | 16.510 | 25 | 4 x 2.5 | 6203 | 0.23 |
| B204 | 50 | 2040 | 500 | 47 | 18.796 | 25 | 5 x 3 | 6204 | 0.34 |
| B205 | 84 | 1530 | 400 | 52 | 23.622 | 25 | 5 x 3 | 6205 | 0.45 |
| B206 | 200 | 1530 | 350 | 62 | 32.766 | 28 | 7 x 4 | 6206 | 0.68 |
| B207 | 318 | 1360 | 300 | 72 | 42.088 | 28 | 7 x 4 | 6207 | 0.80 |
| B208 | 470 | 1360 | 200 | 80 | 46.761 | 32 | 10 x 4.5 | 6208 | 0.91 |
| B209 | 470 | 1360 | 200 | 85 | 46.761 | 32 | 10 x 4.5 | 6209 | 0.95 |
| B210 | 670 | 1020 | 200 | 90 | 56.109 | 32 | 10 x 4.5 | 6210 | 1.00 |
| B211 | 670 | 1020 | 200 | 100 | 56.109 | 32 | 10 x 4.5 | 6211 | 1.40 |
| B212 | 1050 | 1000 | 180 | 110 | 70.029 | 42 | 10 x 4.5 | 6212 | 1.80 |
| B213 | 1050 | 1000 | 180 | 120 | 70.029 | 42 | 10 x 4.5 | 6213 | 2.30 |
| B214 | 1188 | 860 | 180 | 125 | 79.356 | 42 | 12 x 4.5 | 6214 | 2.40 |
