China One Way Overrunning Clutch manufacturer

23600N.m Torque 360mm OD Backstop Cam Clutch Bearing 145.81 kg

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZ-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 300.00 - 1850.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 25 - 140 Mm Outer Diameter: 165 - 360 Mm
Width: 125 - 215 Mm Torque: 400 - 23600 N.m
Weight: 20.51 - 145.81 Kg
High Light:

23600N.m Torque Backstop Cam Clutch

,

360mm OD Backstop Cam Clutch

,

23600N.m Torque cam clutch bearing

Product Description

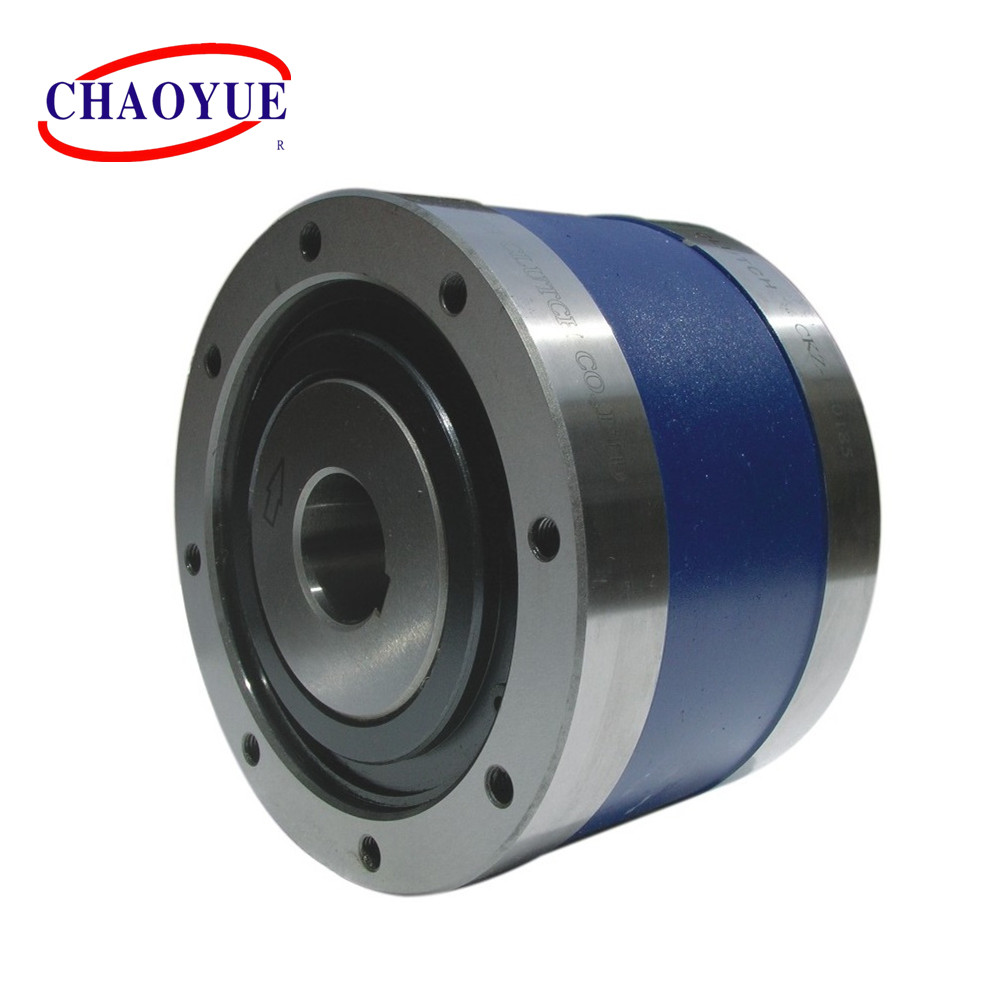

CKZ-F Heavy Machinery Non Contact Backstop Cam Clutch



Type CKZ-F is not contact sprag type freewheel, bearing supported, only the inner race is designed for overrunning. Units are delivered grease lubricated.



The inner race is keyed to the shaft, the outer race has a h7 tolerance to give a fit in H7 housing and it is screwed to the bond.



This type mating creeper gear used in machinery of packing, traffic, metallurgy, mining and so on. Primarily designed as a backstop, overrunning clutch in crawl drives.

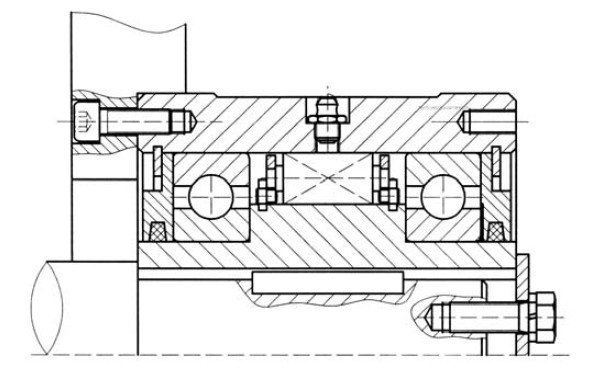

Mounting Example

23600N.m Torque 360mm OD Backstop Cam Clutch Bearing 145.81 kg 0


23600N.m Torque 360mm OD Backstop Cam Clutch Bearing 145.81 kg 1

Type Nominal torque
[N.m]
Max Non Contact Overrunning Speed
[r / min]
Min Non Contact Overrunning Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
Outer Race Size Inner Race Size
D
[h8]
F B
[js9]
n - M H d
[E7]
bn x tn
CKZ-F25165 400 1500 480 165 145 125 8 - M8 20 25 8 x 3.3 20.51
CKZ-F30170 500 1500 470 170 150 130 8 - M8 20 30 8 x 3.3 22.46
CKZ-F35175 2705 1500 450 175 155 130 8 - M10 20 35 10 x 3.3 23.6
CKZ-F40185 3320 1500 430 185 162 130 8 - M10 25 40 12 x 3.3 24.16
CKZ-F50190 2500 1500 420 190 168 135 8 - M10 25 50 14 x 3.8 26.95
CKZ-F55195 3560 1500 400 195 172 145 8 - M10 25 55 16 x 4.3 31.31
CKZ-F55205 3360 1500 400 205 185 145 10 - M10 25 55 16 x 4.3 34.81
CKZ-F60208 4220 1500 400 208 185 150 10 - M10 25 60 18 x 4.4 36.71
CKZ-F65220 4200 1500 400 220 195 150 10 - M10 25 65 18 x 4.4 40.88
CKZ-F70230 4850 1500 390 230 205 150 12 - M10 25 70 20 x 4.9 44.42
CKZ-F80245 5710 1500 380 245 218 160 12 - M12 25 80 22 x 5.4 52.93
CKZ-F90260 6300 1500 370 260 230 160 12 - M14 25 90 22 x 5.4 58.74
CKZ-F100275 8360 1500 370 275 245 170 12 - M14 25 100 28 x 6.4 68.83
CKZ-F110295 12060 1500 370 295 260 185 12 - M16 30 110 28 x 6.4 85.46
CKZ-F130330 19920 1500 350 330 295 200 12 - M16 30 130 32 x 6.4 113.44
CKZ-F140360 23600 1500 350 360 320 215 12 - M18 30 140 36 x 8.4 145.81
