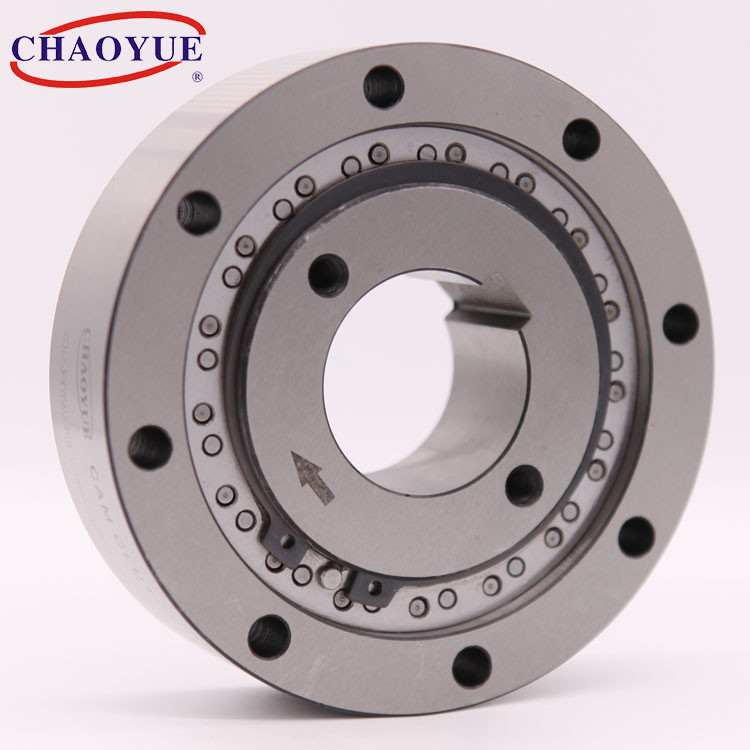

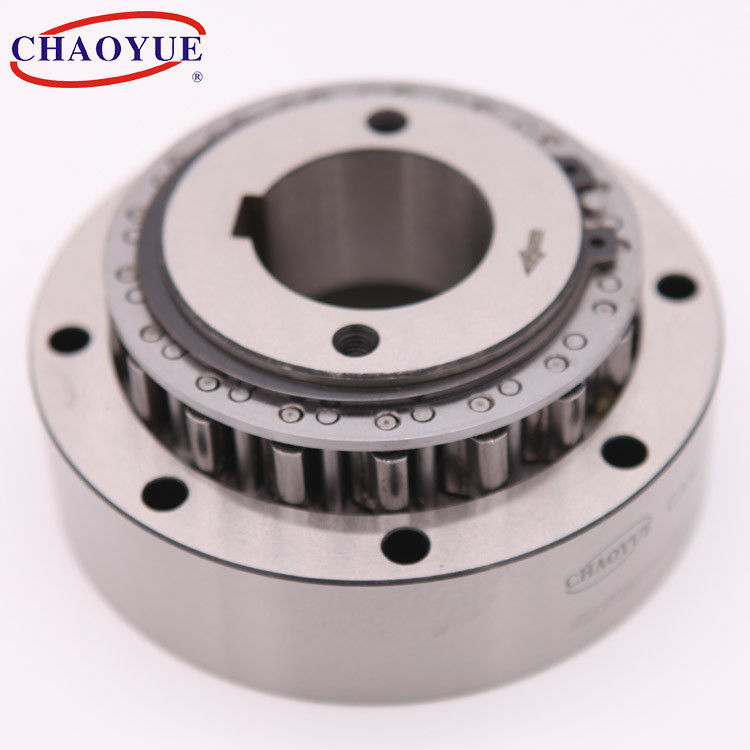

Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning
Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning

Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKF-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 100.00 - 1300.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 20 - 150 Mm Outer Diameter: 90 - 400 Mm
Thickness: 35 - 105 Mm Torque: 192 - 33460 N.m
Weight: 1.5 - 73 Kg
Highlight:

thickness 60mm one way sprag clutch

,

2800N.m one way sprag clutch

,

thickness 60mm sprag clutch assembly

Product Description

CKF-A One Way Backstop Cam Clutch Bearing For Packaging Machine



Type CKF-A is a centrifugal sprag type freewheels with the inner race rotating. Only the inner race is designed for freewheeling. It is a non self-supported type.



Bearings must be provided to ensure concentricity of the inner and outer race.



When used as a backstop, it must be checked that the overrunning speed will not go below the minimum speed given in the next page table.



Primarily designed as a backstop, this type can be also used as an overrunning clutch in dual drives.



Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning 0



Mounting Example



Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning 1



Thickness 60mm 2800N.M One Way Sprag Clutch Assembly overrunning 2



Type Nominal torque
[N.m]		 Min non-contact rotating speed Max non-contact rotating speed Dimension in contour
[mm]		 Weight
[kg]
nmin nmax d
[H7]		 D
[h7]		 E
[H7]		 F G C B A n - d1 bn x tn
CKF-A2090 192 875 6000 20 90 66 78 40 35 35 27 6-6.6 6x2.8 1.5
CKF-A2595 243 825 6000 25 95 70 82 45 35 35 27 6-6.6 8x3.3 1.6
CKF-A30102 342 780 6000 30 102 75 87 50 40 40 30 6-6.6 8x3.3 1.8
CKF-A35110 437 740 6000 35 110 82 96 57 40 40 30 6-6.6 10x3.3 2.1
CKF-A40125 574 720 5000 40 125 92 108 67 40 40 30 8-6.6 12x3.3 2.9
CKF-A45130 640 665 5000 45 130 94 112 69 40 40 29 8-9.0 14x3.8 3.1
CKF-A50150 1120 610 4000 50 150 114 132 90 40 40 29 8-9.0 14x3.8 4.7
CKF-A55160 1380 600 4000 55 160 116 138 91 45 45 33 8-9.0 16x4.3 5.4
CKF-A60175 2190 490 3200 60 175 135 155 95 70 60 48 8-11 18x4.4 8.5
CKF-A70190 2800 480 3200 70 190 140 165 100 70 60 48 12-11 20x4.9 10
CKF-A80210 3600 450 2400 80 210 160 185 120 80 70 48 12-11 22x5.4 14
CKF-A90230 7160 420 2400 90 230 180 206 140 90 80 64 12-13.5 25x5.4 19
CKF-A100280 9790 455 2000 100 280 200 240 160 105 100 64 12-17.5 28x6.4 34
CKF-A130320 14640 415 2000 130 320 235 278 195 105 100 64 12-17.5 32x7.4 44
CKF-A150400 33460 365 2000 150 400 320 360 256 105 100 84 12-17.5 36x8.4 73
