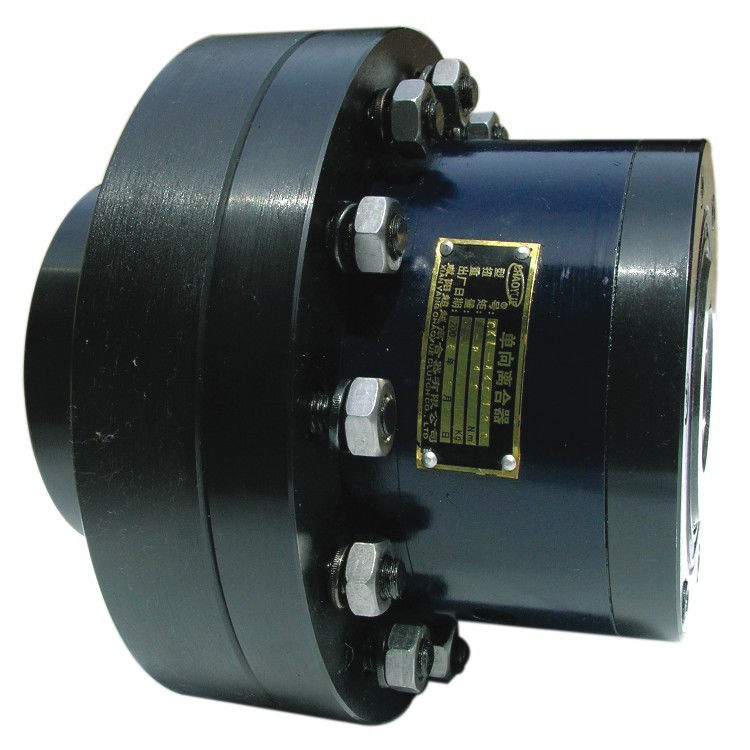

Self Contained Sprag Type Centrifugal One Way Overrunning Clutch

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKL-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 170.00 - 2350.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: CKL-B 25 - 100 Mm One Way Overrunning Clutch Shaft Bearing Inner Diameter: 25 - 100 Mm
Outer Diameter: 130 - 500 Mm Length: 127 - 427 Mm
Weight: 6.4 - 230 Kg Torque: 230 - 12300 N.m
High Light:

centrifugal One Way Overrunning Clutch

,

sprag type One Way Overrunning Clutch

,

centrifugal one way clutch bearing

Product Description



CKL-B 25 - 100 MmOne Way Overrunning Clutch Shaft Bearing



Type CKL-B is a centrifugal sprag type freewheels, self contained, sealed and bearing supported. It is mainly used for high speed and low start-up speed of the occasion. Require oil use.

It has same character and dimension as CKL-A.



The composition is used as an overrunning clutch, and is widely used in packaging, metallurgical, mining and other institutions.




Mounting Example

Self Contained Sprag Type Centrifugal One Way Overrunning Clutch 0


Self Contained Sprag Type Centrifugal One Way Overrunning Clutch 1

Type Nominal torque
[N.m]
Overrunning Limiting Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
nmin nmax d [H7] dk [H7] D D1 L L1 L2 B bn x tn
CKL-B2590 230 800 2500 25 20 - 40 90 130 127 50 60 17.5 4 x 1.8 6.4
CKL-B30100 400 780 2500 30 20 - 50 100 160 151 60 66 20 5 x 2.3 11
CKL-B35110 580 740 2500 35 25 - 65 110 190 177 75 75 19 6 x 2.8 17
CKL-B40125 780 720 2500 40 25 - 65 125 190 183 75 86 17 6 x 2.8 19
CKL-B45130 840 660 2500 45 25 - 65 130 190 184 75 86 17 6 x 2.8 19
CKL-B50150 1400 610 2000 50 30 - 75 150 225 213 90 92 25 14 x 3.8 31
CKL-B55160 1600 600 2000 55 35 - 90 160 270 233 100 104 29.5 16 x 4.3 47
CKL-B60170 2200 490 2000 60 35 - 90 170 270 244 94 114 30 18 x 4.4 49
CKL-B70190 3000 480 2000 70 45 - 110 190 340 318 140 134 38.5 20 x 4.9 90
CKL-B80210 6800 450 1500 80 55 - 125 210 380 340 160 142 35 20 x 4.9 107
CKL-B90230 6500 420 1500 90 65 - 140 230 440 369 155 159 50 25 x 6.4 170
CKL-B100270 12300 400 1500 100 75 - 160 270 500 427 200 182 40.5 28 x 6.4 230
