China One Way Overrunning Clutch manufacturer

4200N.M 220mm Outer Diameter Back Stop Clutch Sprag Clutch Bearing

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CKZ-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 300.00 - 1850.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Product Name: CKZ-F Heavy Machinery Non Contact Backstop Cam Clutch 20.51 - 145.81 Kg Inner Diameter: 25 - 140 Mm
Outer Diameter: 165 - 360 Mm Width: 125 - 215 Mm
Torque: 400 - 23600 N.m Weight: 20.51 - 145.81 Kg
High Light:

4200N.m back stop clutch

,

220mm outer diameterback stop clutch

,

4200N.m sprag clutch bearing

Product Description

CKZ-F Heavy Machinery Non Contact Backstop Cam Clutch 20.51 - 145.81 Kg



Use / Application
A drum melter practice, conveyors, elevators, transportation machinery, food machinery, printing machinery, mill, motor braking, tire rubber equipment, food machinery, packaging machinery, printing machinery ,, molding machines, automatic machine, wire machines, sheet machine, filling machine, plywood manufacture, transport machinery, pharmaceutical machinery, wire stretch, textile machinery, metal processing, machinery manufacturing plywood, milling equipment, a tire building machine, paper machine, the lifting device and other industries.






Mounting Example

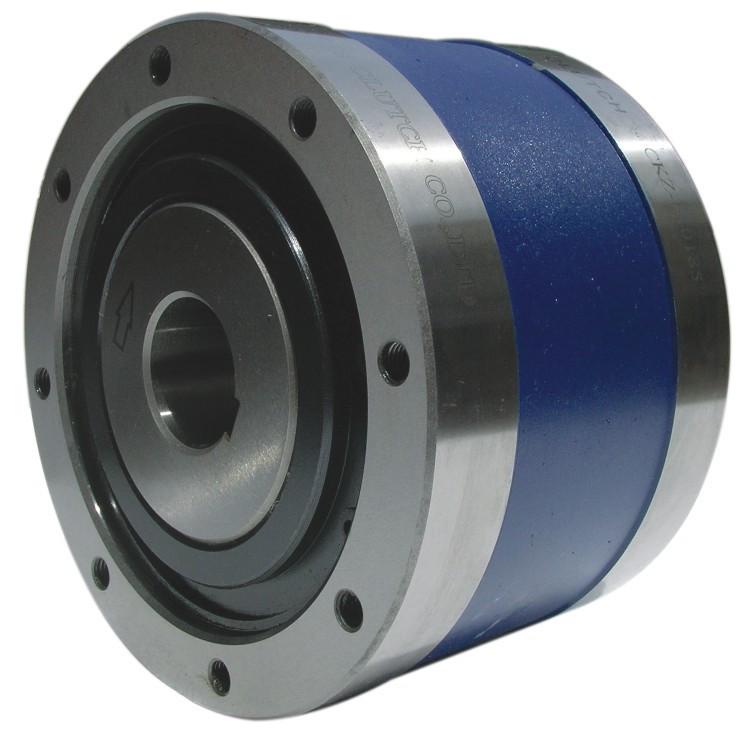

4200N.M 220mm Outer Diameter Back Stop Clutch Sprag Clutch Bearing 0


4200N.M 220mm Outer Diameter Back Stop Clutch Sprag Clutch Bearing 1

Type Nominal torque
[N.m]
Max Non Contact Overrunning Speed
[r / min]
Min Non Contact Overrunning Speed
[r / min]
Dimension in Contour [mm] Weight
[kg]
Outer Race Size Inner Race Size
D
[h8]
F B
[js9]
n - M H d
[E7]
bn x tn
CKZ-F25165 400 1500 480 165 145 125 8 - M8 20 25 8 x 3.3 20.51
CKZ-F30170 500 1500 470 170 150 130 8 - M8 20 30 8 x 3.3 22.46
CKZ-F35175 2705 1500 450 175 155 130 8 - M10 20 35 10 x 3.3 23.6
CKZ-F40185 3320 1500 430 185 162 130 8 - M10 25 40 12 x 3.3 24.16
CKZ-F50190 2500 1500 420 190 168 135 8 - M10 25 50 14 x 3.8 26.95
CKZ-F55195 3560 1500 400 195 172 145 8 - M10 25 55 16 x 4.3 31.31
CKZ-F55205 3360 1500 400 205 185 145 10 - M10 25 55 16 x 4.3 34.81
CKZ-F60208 4220 1500 400 208 185 150 10 - M10 25 60 18 x 4.4 36.71
CKZ-F65220 4200 1500 400 220 195 150 10 - M10 25 65 18 x 4.4 40.88
CKZ-F70230 4850 1500 390 230 205 150 12 - M10 25 70 20 x 4.9 44.42
CKZ-F80245 5710 1500 380 245 218 160 12 - M12 25 80 22 x 5.4 52.93
CKZ-F90260 6300 1500 370 260 230 160 12 - M14 25 90 22 x 5.4 58.74
CKZ-F100275 8360 1500 370 275 245 170 12 - M14 25 100 28 x 6.4 68.83
CKZ-F110295 12060 1500 370 295 260 185 12 - M16 30 110 28 x 6.4 85.46
CKZ-F130330 19920 1500 350 330 295 200 12 - M16 30 130 32 x 6.4 113.44
CKZ-F140360 23600 1500 350 360 320 215 12 - M18 30 140 36 x 8.4 145.81
