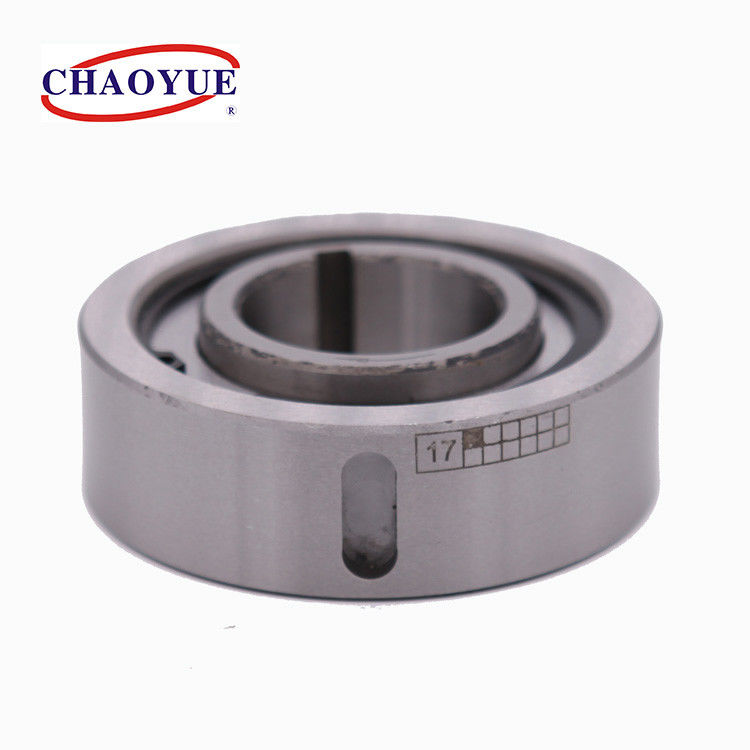

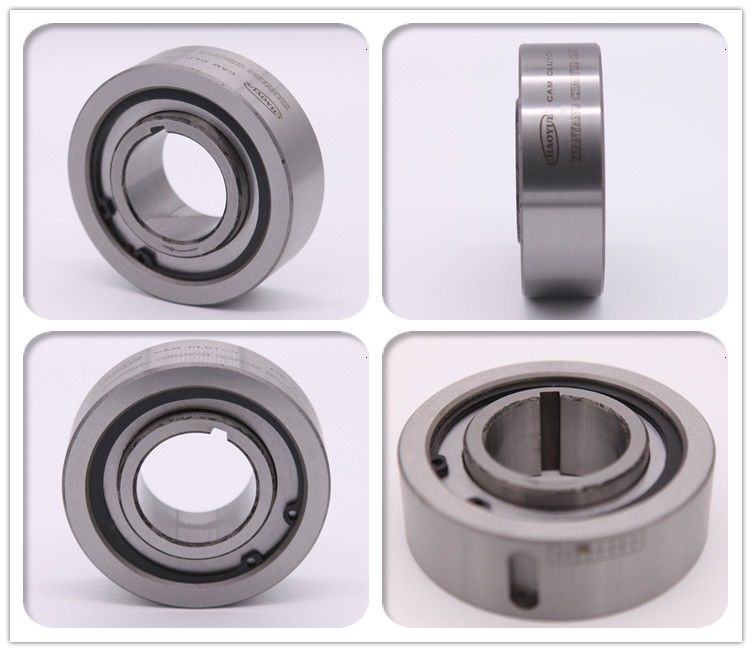

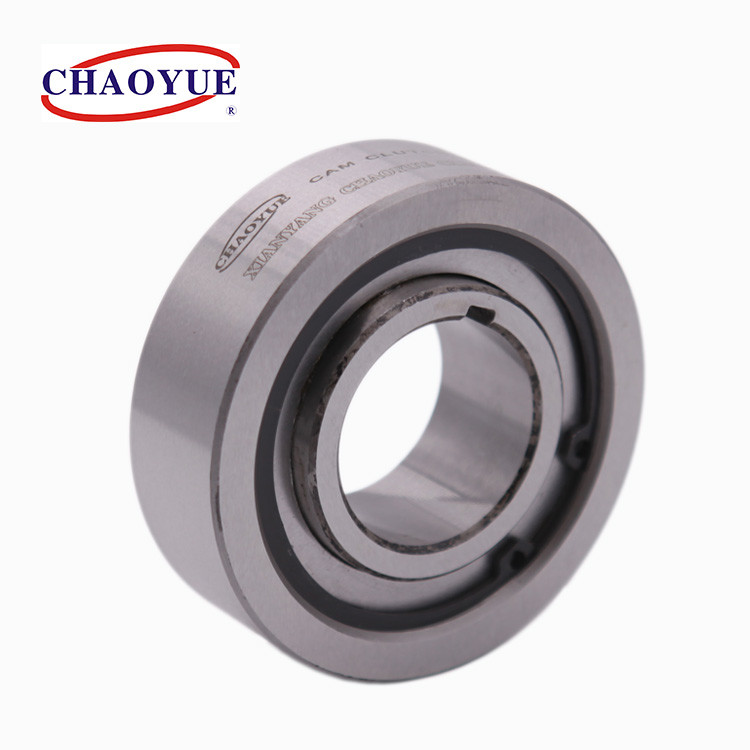

Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A
Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A

Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CK-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 20.00 - 120.00
Packaging Details: Carton box or wooden case, depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Bore Size: 12 - 80 Mm Outer Diameter: 50 - 170 Mm
Thickness: 24 - 42 Mm Weight: 0.24 - 4.29 Kg
Torque: 31.5 - 2450 N.m Application: Printing, Packaging, Food, Chemistry Machineries Etc.
Highlight:

85mm OD one way sprag clutch

,

400N.m one way sprag clutch

,

400N.m one way bearings

Product Description

Type CK-A is a sprag type freewheel non-bearing supported. Outer diameter same as standard ball bearings diameter, bearings are required to support axial and radial loads. Grease lubricated before delivery.



Bearings should be installed with the clutch coaxial side by side, same tolerance. Inner race and outer race connect to the shaft and hub by key.



The series usually use for printing, packaging, corrugated, chemistry machineries.





Mounting Example

Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A 0



Non Bearing Supported 400N.M 85mm OD One Way Sprag Clutch CK-A 1

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

 Dimension in Coutour [mm] Bearing
[GB/T276]		 Weight
Outer Race Size Inner Race Size
Inner Race Outer Race D [h7] B bw x tw d [H7] C bn x tn
CK-A1250 31.5 1750 400 50 22 3 x 1.8 12 24 3 x 1.4 　 0.24
CK-A1542 54 1750 500 42 23 3 x 1.8 15 24 3 x 1.4 6302 0.17
CK-A1747 75 1575 400 47 23 3 x 1.8 17 24 3 x 1.4 6303 0.21
CK-A1855 50 1575 350 55 22 4 x 2.5 18 24 4 x 1.8 　 0.28
CK-A2052 95 1400 400 52 23 3 x 1.8 20 24 3 x 1.4 6304 0.25
CK-A2060 63 1600 350 60 22 6 x 3.5 20 24 6 x 2.8 　 0.33
CK-A2562 145 1260 350 62 23 4 x 2.5 25 24 4 x 1.8 6305 0.35
CK-A2563 100 1260 350 63 24 6 x 3.5 25 26 6 x 2.8 　 0.37
CK-A2563T 140 1260 350 63 30 6 x 3.5 25 32 8 x 3.3 　 0.68
CK-A2870 180 1050 300 70 30 8 x 4.0 28 32 8 x 3.3 　 0.6
CK-A3072 208 1050 300 72 23 5 x 3.0 30 23 5 x 2.3 6306 0.47
CK-A3080T 340 875 200 80 30 8 x 4.0 30 32 8 x 3.3 　 0.75
CK-A3580 340 815 200 80 28 8 x 4.0 35 30 6 x 2.8 6307 0.69
CK-A3585 400 815 200 85 30 8 x 4.0 35 32 8 x 3.3 　 1
CK-A4090 462 700 200 90 28 8 x 4.0 40 30 6 x 2.8 6308 0.87
CK-A35100 780 875 200 100 32 10 x 5.0 35 34 10 x 3.3 　 1.34
CK-A35140 1000 490 180 140 35 4 x Φ8 35 35 10 x 3.5 　 3.28
CK-A40100 780 560 200 100 34 10 x 5.0 40 34 10 x 3.3 　 1.2
CK-A10110 850 700 180 110 32 10 x 5.0 40 34 10 x 3.3 　 1.19
CK-A45100 783 560 200 100 28 8 x 4.0 45 30 6 x 2.8 6309 1.07
CK-A50110 850 525 180 110 28 10 x 5.0 50 30 8 x 3.3 6310 1.59
CK-A50125 1000 490 180 125 36 14 x 5.5 50 35 14 x 3.8 　 2.21
CK-A50130 1050 560 180 130 36 14 x 5.5 50 38 14 x 3.8 　 3.02
CK-A55160 2000 455 150 160 52 16 x 6.0 55 55 16 x 4.3 　 6.96
CK-A58130 1050 490 180 130 36 14 x 5.5 58 38 14 x 3.8 　 2.6
CK-A60130 1050 490 180 130 34 10 x 5.0 60 36 8 x 3.3 6312 2.16
CK-A60180 2000 420 140 180 52 6 - M8 60 52 18 x 4.4 　 7.4
CK-A65140 1224 490 180 140 34 10 x 5.0 65 36 10 x 3.3 6313 2.49
CK-A70150 1850 455 150 150 40 10 x 5.0 70 42 10 x 3.3 6314 3.36
CK-A75160 2140 455 150 160 40 12 x 5.0 75 42 12 x 3.3 6315 3.81
CK-A80170 2450 420 150 170 40 12 x 5.0 80 42 12 x 3.3 6316 4.29
