4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 10.00 - 60.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Bore Size: 24 - 125 Mm Outer Diameter: 50 - 215 Mm
Thickness: 18 - 53 Mm Weight: 0.2 - 8.3 Kg
Torque: 0.17 - 15 KN.m Bolt: M5 - M10
High Light:

4.75kN.m Shaft Clamping Elements

,

90mm bore Shaft Clamping Elements

,

90mm bore keyless taper lock bushings

Product Description

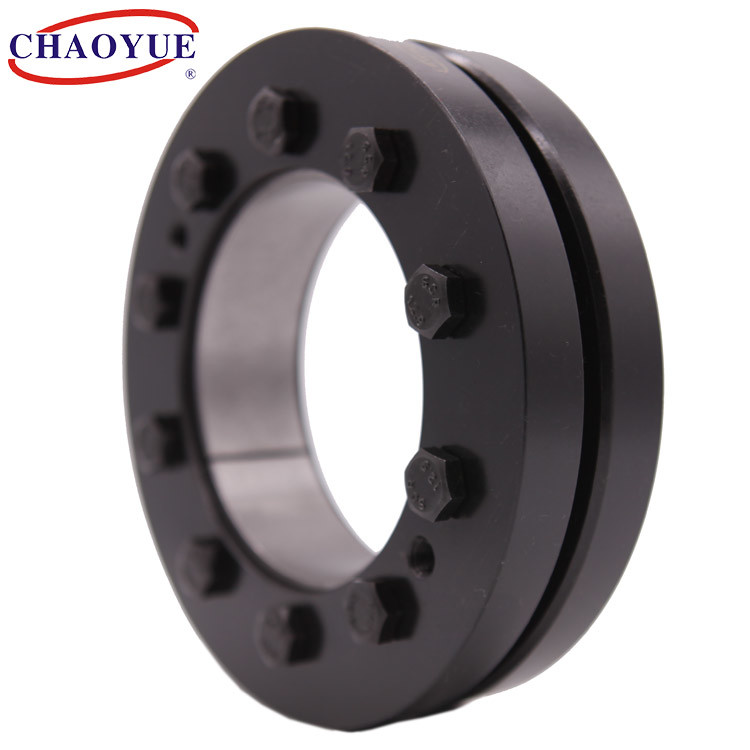

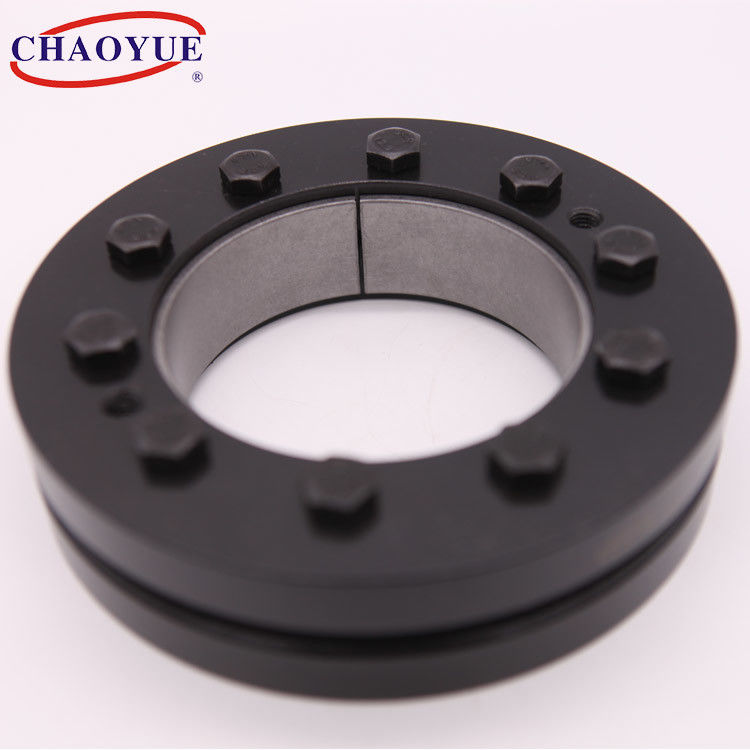

Z7B Shaft locking device bore 24mm to 80mm power lock



Mounting Example

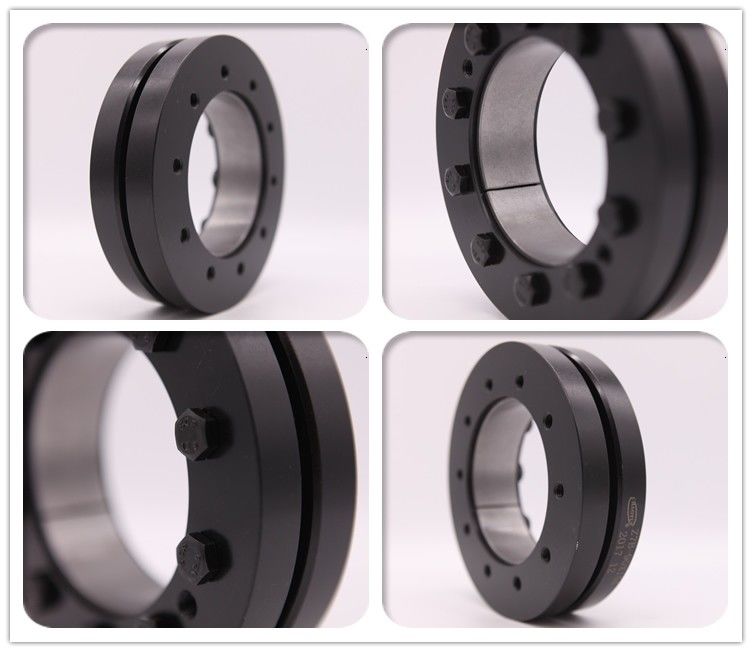

4.75kN.M 90mm Bore Shaft Clamping Elements Keyless Taper Lock Bushings 0

Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]
Weight
[kg]
d D dw L H e d1 n Axial Force
[kN]
Toruqe
[kN.m]
24 50 19 14 18 2 M5 6 17 0.17 5 0.2
24 50 20 14 18 2 M5 6 21 0.21 5 0.2
24 50 21 14 18 2 M5 6 23 0.25 5 0.2
30 60 24 16 20 2 M5 7 25 0.3 5 0.3
30 60 25 16 20 2 M5 7 27 0.34 5 0.3
30 60 26 16 20 2 M5 7 29 0.38 5 0.3
36 72 28 18 22 2 M6 5 31 0.44 12 0.4
36 72 30 18 22 2 M6 5 38 0.57 12 0.4
36 72 31 18 22 2 M6 5 40 0.63 12 0.4
44 80 34 20 24 2 M6 7 41 0.71 12 0.6
44 80 35 20 24 2 M6 7 44 0.78 12 0.6
44 80 36 20 24 2 M6 7 47 0.86 12 0.6
50 90 38 22 26 2 M6 8 49 0.94 12 0.8
50 90 40 22 26 2 M6 8 58 1.16 12 0.8
50 90 42 22 26 2 M6 8 65 1.38 12 0.8
55 100 40 23 29 3 M6 8 55 1.16 12 1.1
55 100 45 23 29 3 M6 8 67 1.52 12 1.1
55 100 48 23 29 3 M6 8 78 1.88 12 1.1
62 110 48 23 29 3 M6 10 73 1.75 12 1.3
62 110 50 23 29 3 M6 10 80 2 12 1.3
62 110 52 23 29 3 M6 10 86 2.25 12 1.3
68 115 50 23 29 3 M6 10 74 1.85 12 1.4
68 115 55 23 29 3 M6 10 91 2.5 12 1.4
68 115 60 23 29 3 M6 10 105 3.15 12 1.4
75 138 55 25 31 3 M8 7 87 2.4 29 1.2
75 138 60 25 31 3 M8 7 106 3.2 29 1.2
75 138 65 25 31 3 M8 7 121 3.95 29 1.2
80 145 60 25 31 3 M8 7 106 3.2 29 1.9
80 145 65 25 31 3 M8 7 120 3.9 29 1.9
80 145 70 25 31 3 M8 7 131 4.6 29 1.9
90 155 65 30 38 4 M8 10 146 4.75 29 3.3
90 155 70 30 38 4 M8 10 171 6 29 3.3
90 155 75 30 38 4 M8 10 193 7.25 29 3.3
100 170 70 34 43 4.5 M8 12 171 6 29 4.7
100 170 75 34 43 4.5 M8 12 200 7.5 29 4.7
100 170 80 34 43 4.5 M8 12 225 9 29 4.7
110 185 75 39 49 5 M10 9 192 7.29 58 5.9
110 185 80 39 49 5 M10 9 225 9 58 5.9
110 185 85 39 49 5 M10 9 254 10.8 58 5.9
125 215 85 42 53 5.5 M10 12 258 11 58 8.3
125 215 90 42 53 5.5 M10 12 288 13 58 8.3
125 215 95 42 53 5.5 M10 12 315 15 58 8.3
