Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock
Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock

Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z19A
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 5.00 - 20.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 14 - 70 Mm Outer Diameter: 25 - 84 Mm
Thickness: 16.5 - 31.5 Mm Torque: 38 - 1240 N.m
Bolt: M20 - M75 Weight: 0.05 - 0.42 Kg
Highlight:

1240 N.m climax keyless bushing

,

M75 bolt climax keyless bushing

,

1240 N.m axle collar clamp

Product Description

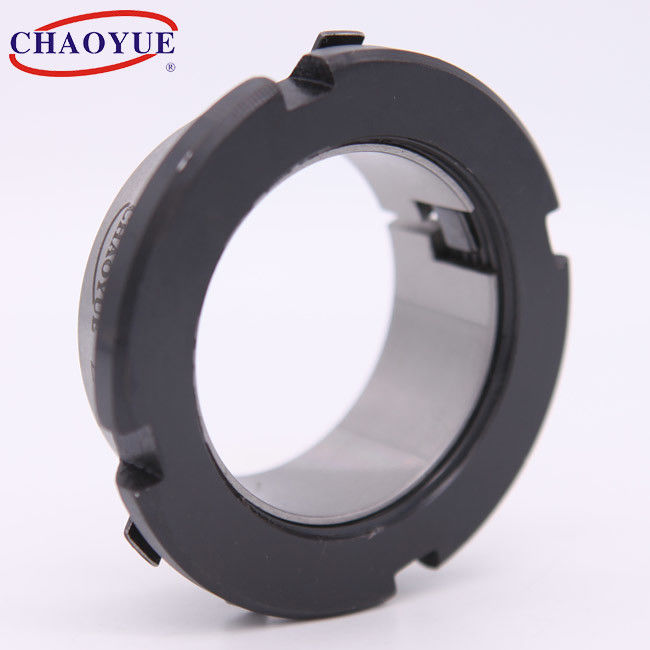

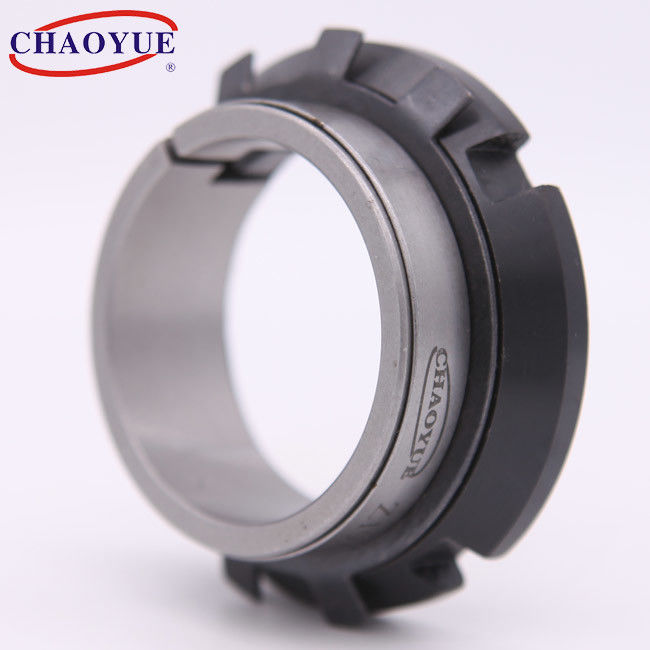

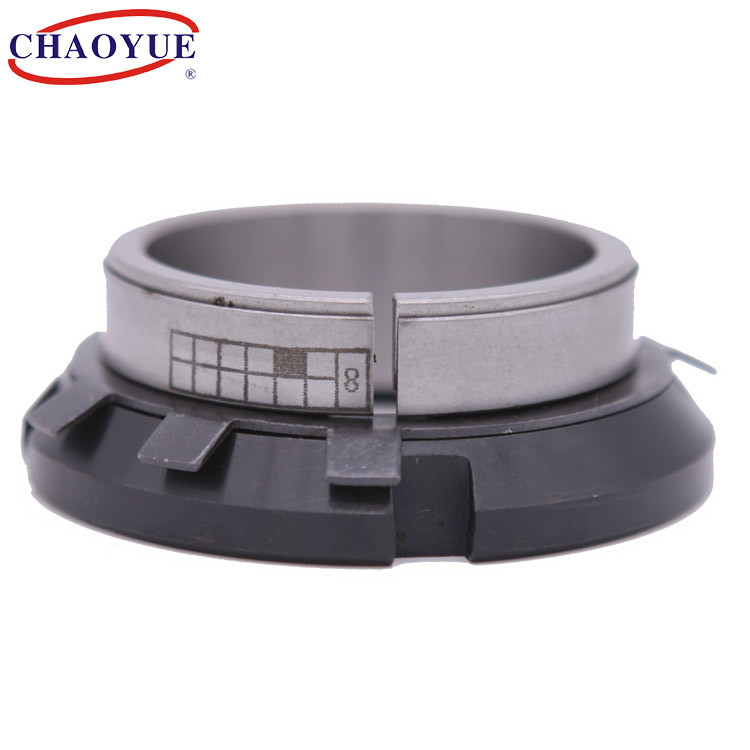

Z19A Keyless Shaft Clamping Element Locking Bushing



Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock 0





Mounting Example



Black 1240 N.M M75 Bolt Climax Keyless Bushing For Shaft Lock 1



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]		 Pressure on Hub
[N / mm2]		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D E H B d1 Axial Force
[kN]		 Torque
[N·m]
14 25 32 16.5 6.5 M20 x 1 5.1 38 200 110 95 0.05
15 25 32 16.5 6.5 M20 x 1 5.5 41 185 110 95 0.04
16 25 32 16.5 6.5 M20 x 1 5.45 43 174 110 95 0.04
17 26 32 16.5 6.5 M20 x 1 5.5 47 164 107 95 0.04
18 26 32 16.5 6.5 M20 x 1 5.4 49 155 107 95 0.04
18 30 38 16.5 6.5 M25 x 1.5 6.6 58 185 112 160 0.06
19 30 38 18 6.5 M25 x 1.5 6.6 62 176 112 160 0.06
20 30 38 18 6.5 M25 x 1.5 6.6 66 167 111 160 0.06
22 32 38 18 6.5 M25 x 1.5 6.6 73 152 105 160 0.06
24 35 45 18 6.5 M30 x 1.5 8.75 105 185 127 220 0.08
25 35 45 18 6.5 M30 x 1.5 8.8 110 178 127 220 0.07
28 36 45 18 6.5 M32 x 1.5 8.55 120 159 124 220 0.06
28 40 52 18 6.5 M35 x 1.5 10.6 149 188 141 340 0.09
30 40 52 19.5 7 M35 x 1.5 10.6 160 164 123 340 0.09
32 42 52 19.5 7 M36 x 1.5 10.6 170 154 117 340 0.09
35 45 58 21.5 8 M40 x 1.5 13.1 230 153 120 480 0.11
36 45 58 21.5 8 M40 x 1.5 13.3 240 149 120 480 0.1
38 48 58 21..5 8 M42 x 1.5 13.1 250 141 112 480 0.12
38 50 58 21.5 8 M42 x 1.5 13.1 250 141 112 480 0.14
40 50 65 24.5 10 M45 x 1.5 15.5 310 124 93 680 0.14
40 52 65 24.5 10 M45 x 1.5 15.5 310 120 93 680 0.17
42 55 65 25.5 10 M48 x 1.5 15.2 320 114 87 680 0.2
45 55 72 25.5 10 M50 x 1.5 17.7 400 122 96 870 0.16
45 57 72 25.5 10 M50 x 1.5 17.7 400 122 96 870 0.2
48 60 75 25.5 10 M55 x 2 20.8 500 135 105 970 0.21
50 60 75 25.5 10 M55 x 2 20.8 520 130 105 970 0.18
50 62 75 25.5 10 M55 x 2 20.8 520 130 105 970 0.22
55 65 80 27.5 12 M60 x 2 22 610 103 84 1100 0.21
55 68 80 27.5 12 M60 x 2 22 610 103 84 1100 0.28
56 68 80 27.5 12 M60 x 2 22 620 101 82 1100 0.26
60 70 85 30 12 M65 x 2 26.6 800 113 93 1300 0.24
60 73 85 30.5 12 M65 x 2 26.6 800 113 93 1300 0.33
63 79 92 30.5 14 M70 x 2 31.1 980 107 86 1600 0.43
65 79 92 30.5 14 M70 x 2 31 1010 104 86 1600 0.38
70 84 98 31.5 14 M75 x 2 35.4 1240 110 92 2000 0.42
