Mechanical Power Transmission 68mm Thickness Keyless Taper Lock Bushings

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z17A
Payment & Shipping Terms:
Minimum Order Quantity: 5 pc
Price: USD 15.00 - 2300.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 30 - 60 Mm Outer Diameter: 55 -710 Mm
Thickness: 46 - 226 Mm Torque: 0.9 - 1266 KN.m
Bolt: M6 - M24 Weight: 0.5 - 179.5 Kg
High Light:

Mechanical Power Transmission Keyless Taper Lock Bushings

,

68mm thickness keyless taper lock bushings

,

68mm thickness shaft lock

Product Description

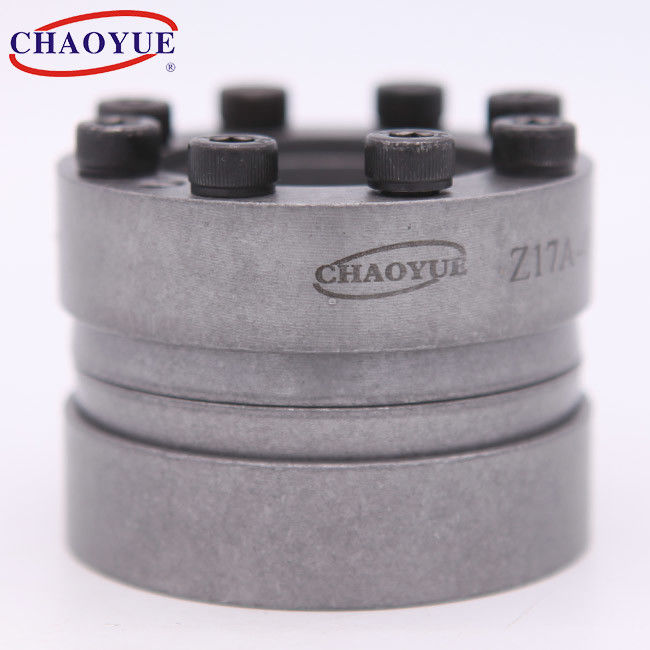

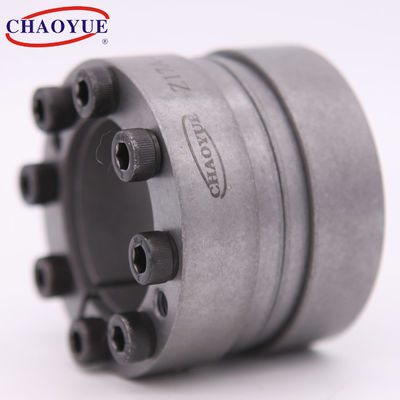

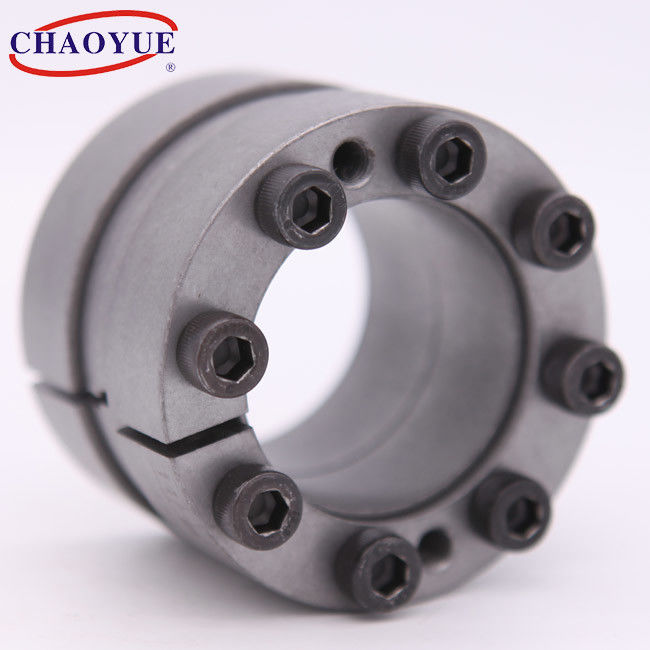

Z17A Mechanical Power Lock Transmission Clamping Assembly



Mechanical Power Transmission 68mm Thickness Keyless Taper Lock Bushings 0






Mounting Example

Mechanical Power Transmission 68mm Thickness Keyless Taper Lock Bushings 1



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
[N / mm2]
Pressure on Hub
[N / mm2]
Torque of Tighten Bolt
[N.m]
Weight
[kg]
d D L L1 L2 L3 d1 n Torque
[kN·m]
Axial Force
[kN]
30 55 52 46 17 40 M6 6 0.9 60 132 85 17 0.5
35 60 52 46 17 40 M6 7 1.25 71 135 93 17 0.6
40 65 52 46 17 40 M6 8 1.5 75 124 90 17 0.7
45 75 64 56 20 48 M8 6 2.5 112 136 98 41 1.1
50 80 64 56 20 48 M8 7 3 120 132 100 41 1.2
55 85 64 56 20 48 M8 8 3.8 138 138 108 41 1.3
60 69 64 56 20 48 M8 8 4.3 143 127 102 41 1.4
65 95 64 56 20 48 M8 9 5.3 162 132 108 41 1.5
70 110 78 68 24 58 M10 8 7.6 219 143 110 83 2.6
75 115 78 68 24 58 M10 8 8.2 219 134 105 83 2.8
80 120 78 68 24 58 M10 8 8.7 219 125 101 83 2.9
85 125 78 68 24 58 M10 9 10.4 240 133 109 83 3.1
90 130 78 68 24 58 M10 10 12.3 274 139 116 83 3.2
95 135 78 68 24 58 M10 10 13 274 132 112 83 3.3
100 145 88 76 28 66 M12 8 15 301 121 98 145 4.5
110 155 88 76 28 66 M12 9 18.6 338 123 103 145 4.9
120 165 88 76 28 66 M12 10 22.5 396 126 108 145 5.3
130 180 98 86 33 76 M12 12 29.36 451 121 101 145 7.3
140 190 98 86 33 76 M12 12 31.5 451 112 95 145 7.8
150 200 98 86 33 76 M12 14 39.4 526 122 106 145 8.2
160 210 98 86 33 76 M12 15 45 563 123 108 145 8.7
170 225 112 98 38 86 M14 12 52.5 619 112 96 230 11.6
180 235 112 98 38 86 M14 14 64.9 722 124 107 230 12.2
190 250 126 114 46 102 M14 16 78.3 825 113 95 230 16.7
200 260 126 114 46 102 M14 18 92.7 928 121 103 230 17.4
220 285 138 122 50 110 M16 16 126 1146 126 107 355 22.3
240 305 138 122 50 110 M16 16 137.5 1146 115 100 355 24.1
260 325 138 122 50 110 M16 18 167.6 1289 120 105 355 25.8
280 355 164 146 60 130 M18 18 217 1553 113 97 185 38.2
300 375 164 146 60 130 M18 20 258.5 1724 117 102 485 40.6
320 405 190 170 72 154 M20 20 357.8 2236 120 102 690 58.6
340 425 190 170 72 154 M20 20 380 2236 113 97 690 61.8
360 455 220 198 84 178 M22 20 501 2784 115 97 930 85
380 475 220 198 84 178 M22 21 555 2923 115 97 930 87.2
400 495 220 198 84 178 M22 21 584 2923 109 93 930 93.4
420 515 220 198 84 178 M22 24 657 3132 111 96 930 97.5
440 545 250 226 96 202 M24 24 795 3617 108 92 1200 128.9
460 565 250 226 96 202 M24 24 831 3617 103 88 1200 134.1
480 585 250 226 96 202 M24 24 868 3617 99 85 1200 139.3
500 605 250 226 96 202 M24 28 985 3940 104 91 1200 144.5
520 630 250 226 96 202 M24 28 1024 3940 100 88 1200 157.6
540 650 250 226 96 202 M24 28 1063 3940 96 84 1200 163.1
560 670 250 226 96 202 M24 30 1181 4219 100 88 1200 168.6
580 670 250 226 96 202 M24 30 1224 4219 96 84 1200 174
600 710 250 226 96 202 M24 30 1266 4219 92 83 1200 179.5
