Home ProductsShaft Clamping Elements100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard

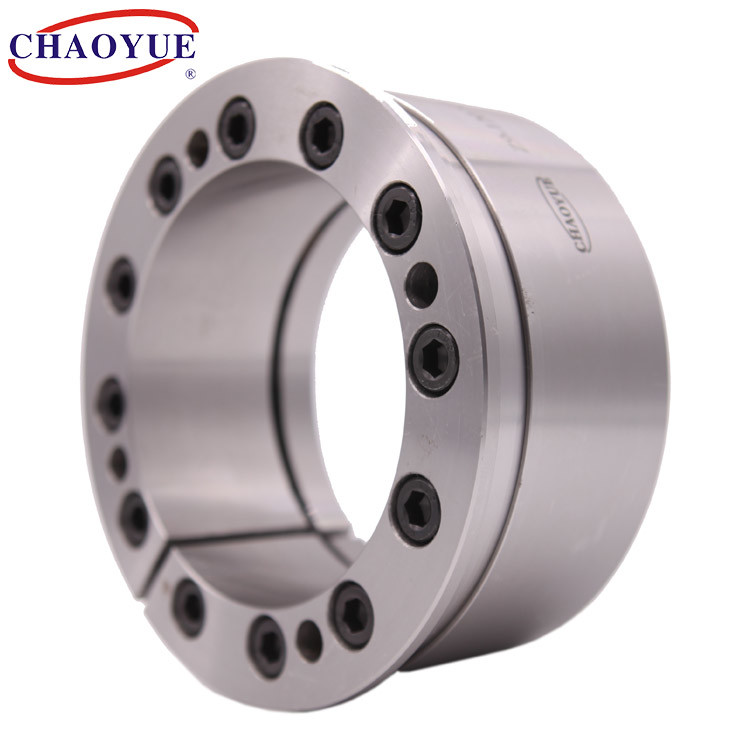

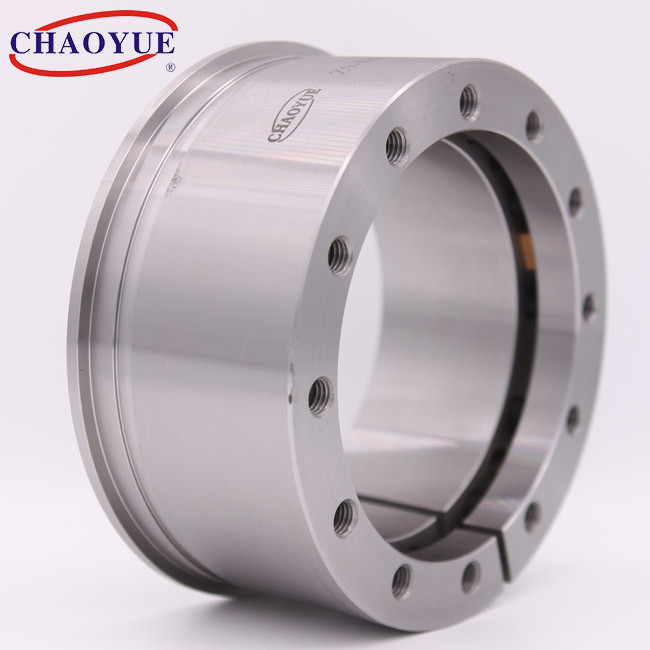

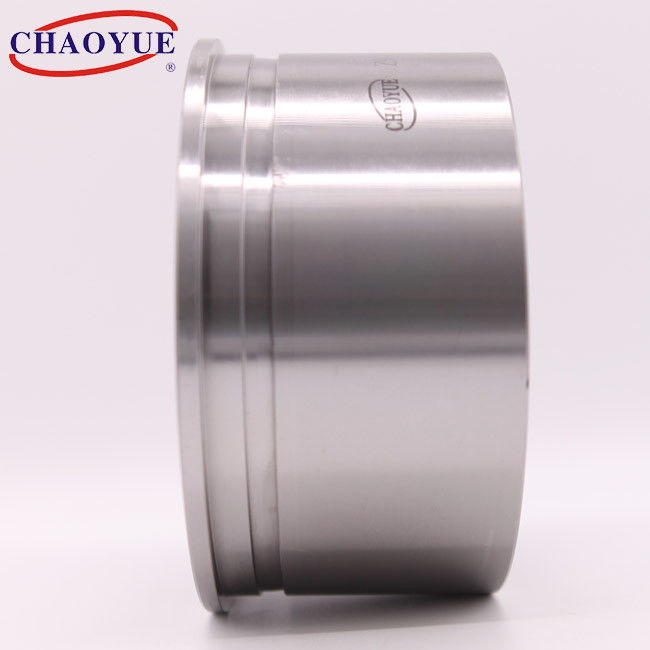

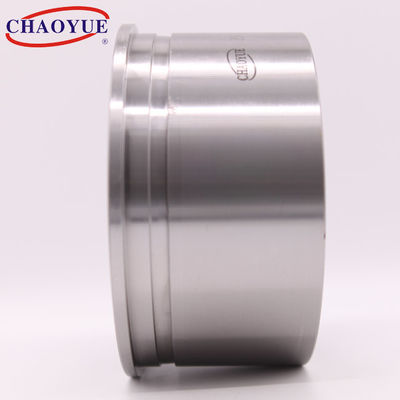

100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard
100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard 100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard 100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard

100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z9
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 35.00 - 950.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 100 - 420 Mm Outer Diameter: 145 - 515 Mm
Thickness: 75 - 159 Mm Torque: 9.6 - 410 KN.m
Bolt: M12 - M22 Weight: 4.7 - 82 Kg
Highlight:

100mm inner diameter Shaft Clamping Elements

,

m12 bolt Shaft Clamping Elements

,

100mm inner diameter clamping shaft coupling

Product Description

Z9 Standard Keyless shaft shrink disc locking device



100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard 0



Mounting Example



100mm Inner Diameter M12 Bolt Shaft Clamping Elements Z9 Standard 1



Fundamental Dimension [mm] Bolt Rated Load Pressure on Shaft
N/mm2		 Pressure on Hub
N/mm2		 Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 e B d1 n Axial Force
[kN]		 Toruqe
[kN.m]
100 145 75 54 5 65 M12 8 192 9.6 102 70 145 4.7
110 155 75 54 5 65 M12 8 197 10.5 93 66 145 5.1
120 165 75 54 5 65 M12 9 216 13 96 70 145 5.5
130 180 84 63 6 72 M12 12 287 17.8 100 78 145 7.5
140 190 84 63 6 72 M12 12 287 20.2 94 69 145 7.9
150 200 84 63 6 72 M12 12 287 21.6 88 66 145 8.4
160 210 84 63 6 72 M12 15 360 28.8 101 77 145 8.9
170 225 84 63 6 72 M12 16 383 32.6 101 76 145 10.5
180 235 84 63 6 72 M12 18 431 38.8 108 82 145 11
190 250 96 69 6 81 M14 15 493 46.8 106 80 230 14.3
200 260 94 69 6 81 M14 16 526 52.8 100 77 230 15
220 285 94 69 6 81 M16 14 640 70 119 92 355 17.8
240 305 112 86 7 98 M16 16 731 88 96 75 355 23.2
260 325 112 86 7 98 M16 18 822 107 103 82 355 24.8
280 355 120 94 8 106 M16 20 910 128 96 75 355 33
300 375 120 94 8 106 M16 22 1000 151 99 79 355 36
320 405 142 109 8 125 M20 18 1280 206 101 80 690 52
340 425 142 109 8 125 M20 20 1420 242 106 85 690 54
360 455 159 120 8 140 M22 20 1770 319 113 89 930 72
380 475 159 120 8 140 M22 20 1770 337 109 87 930 75
400 485 159 120 8 140 M22 20 1770 355 101 83 930 78
420 515 159 120 8 140 M22 22 1980 410 107 87 930 82
