Home ProductsShaft Clamping ElementsSize 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp
Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp
Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp

Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 760.00 - 5600.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 2 - 5 weeks
Payment Terms: T/T
Supply Ability: 100 pcs per month
Contact Now

Detail Information
Inner Diameter: 300 - 620 Mm Outer Diameter: 485 - 1020 Mm
Thickness: 140 - 286 Mm Torque: 262 - 3100 KN.m
Bolt: M20 - M30 Weight: 118 - 1080 Kg
Highlight:

Size 300mm Shaft Clamping Elements

,

262kN.m Shaft Clamping Elements

,

262kN.m shaft locking clamp

Product Description

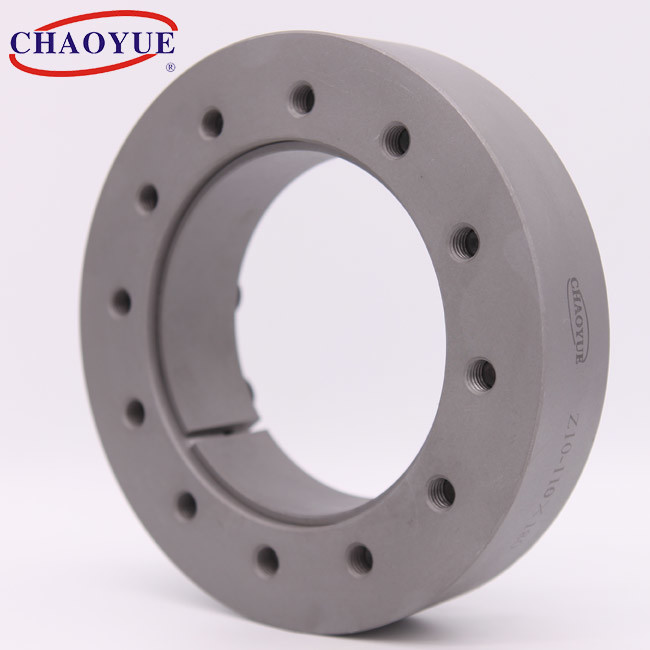

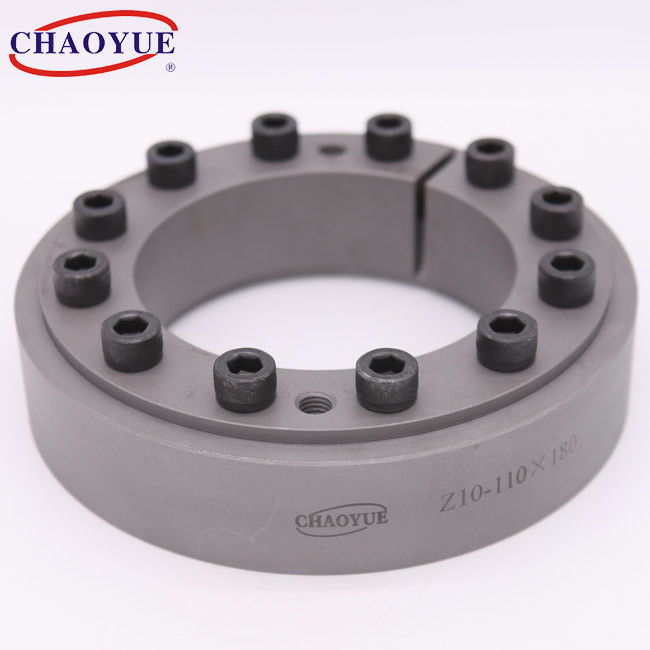

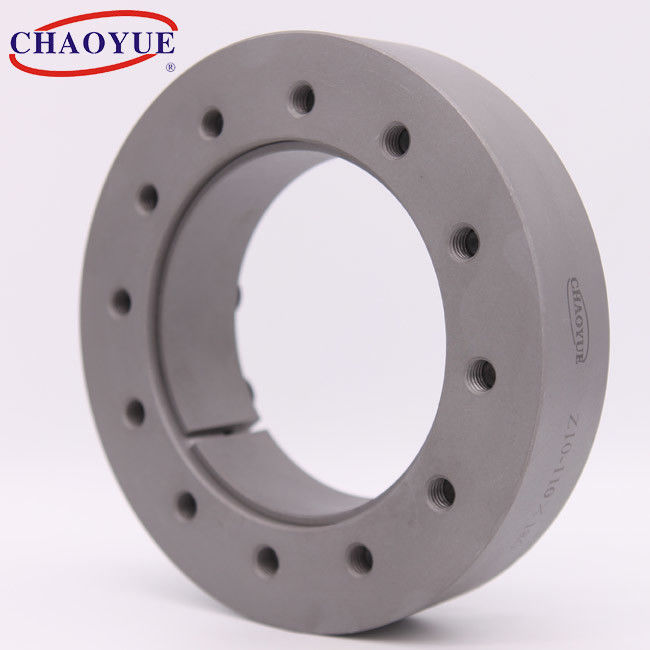

Z10 Bore Size 300mm To 620mm Power Transmission Power Locks



Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp 0





Mounting Example



Size 300mm 262kN.M Shaft Clamping Elements , Shaft Locking Clamp 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 Axial Force
[kN]		 Toruqe
[kN.m]
300 485 230 122 140 10 M20 2280 262 470 118
300 485 240 122 140 10 M20 2450 294 470 118
300 485 245 122 140 10 M20 2530 310 470 118
320 520 240 122 140 10 M24 2510 301 820 131
320 520 250 122 140 10 M24 2682 335 820 131
320 520 260 122 140 10 M24 2850 370 820 131
340 570 250 134 155 12 M24 3120 389 820 186
340 570 260 134 155 12 M24 3300 426 820 186
340 570 270 134 155 12 M24 3430 463 820 186
360 590 280 140 159 12 M24 3800 532 820 204
360 590 290 140 159 12 M24 3970 575 820 204
360 590 300 140 159 12 M24 3990 599 820 204
390 650 300 144 163 14 M24 4260 640 820 250
390 650 310 144 163 14 M24 4400 690 820 250
390 650 320 144 163 14 M24 4640 742 820 250
420 670 330 164 184 14 M24 4770 787 820 300
420 670 340 164 184 14 M24 5000 846 820 300
420 670 350 164 184 14 M24 5200 910 820 300
440 740 340 172 192 15 M24 5500 935 820 400
440 740 350 172 192 15 M24 5720 1000 820 400
440 740 360 172 192 15 M24 6000 1060 820 400
460 770 360 172 192 15 M24 6250 1090 820 420
460 770 370 172 192 15 M24 6200 1150 820 420
460 770 380 172 192 15 M24 6500 1235 820 420
480 800 380 188 213 15 M24 6560 1280 820 500
480 800 390 188 213 15 M24 6750 1350 820 500
480 800 400 188 213 15 M24 6940 1420 820 500
500 850 400 188 213 15 M27 7500 1480 1210 570
500 850 410 188 213 15 M27 7720 1600 1210 570
500 850 420 188 213 15 M27 7920 1720 1210 570
530 910 430 213 238 17 M27 9470 1880 1210 740
530 910 440 213 238 17 M27 9000 2000 1210 740
530 910 450 213 238 17 M27 9250 2120 1210 740
560 940 450 213 238 17 M27 8950 2020 1210 770
560 940 460 213 238 17 M27 9350 2150 1210 770
560 940 470 213 238 17 M27 9700 2280 1210 770
590 980 470 228 260 18 M27 10600 2500 1210 900
590 980 480 228 260 18 M27 11000 2650 1210 900
590 980 490 228 260 18 M27 11450 2800 1210 900
620 1020 500 254 286 18 M30 11000 2740 1640 1080
620 1020 510 254 286 18 M30 11300 2900 1640 1080
620 1020 520 254 286 18 M30 11900 3100 1640 1080
