Home ProductsShaft Clamping ElementsZ10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp
Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp
Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp

Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z10
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCs
Price: USD 5.00 - 30.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 12 - 90 Mm Outer Diameter: 32 - 155 Mm
Thickness: 11 - 38 Mm Torque: 0.038 - 7.2 KN.m
Bolt: M5 - M8 Weight: 0.06 - 3.3 Kg
Highlight:

Thickness 15mm Shaft Clamping Elements

,

m5 bolt Shaft Clamping Elements

,

Thickness 15mm shaft collar clamp

Product Description

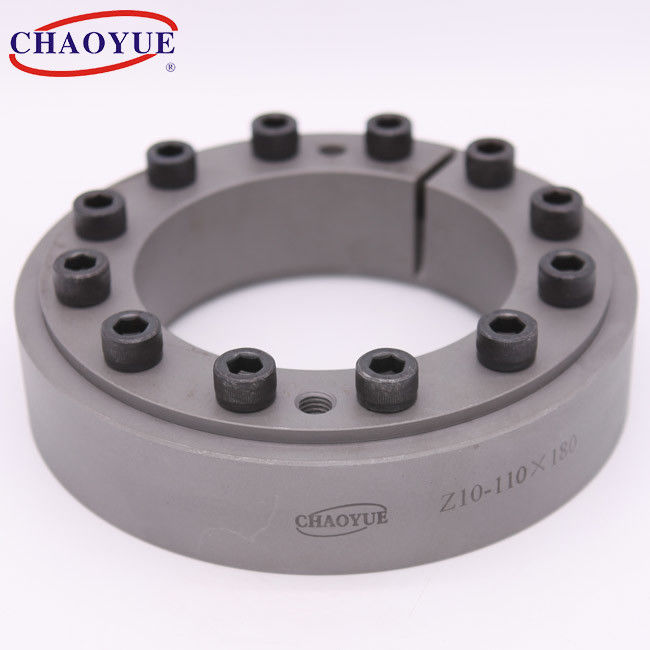

Z10 Bore Size 12mm To 90mm Standard Keyless Shaft Locking Assembly



Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp 0

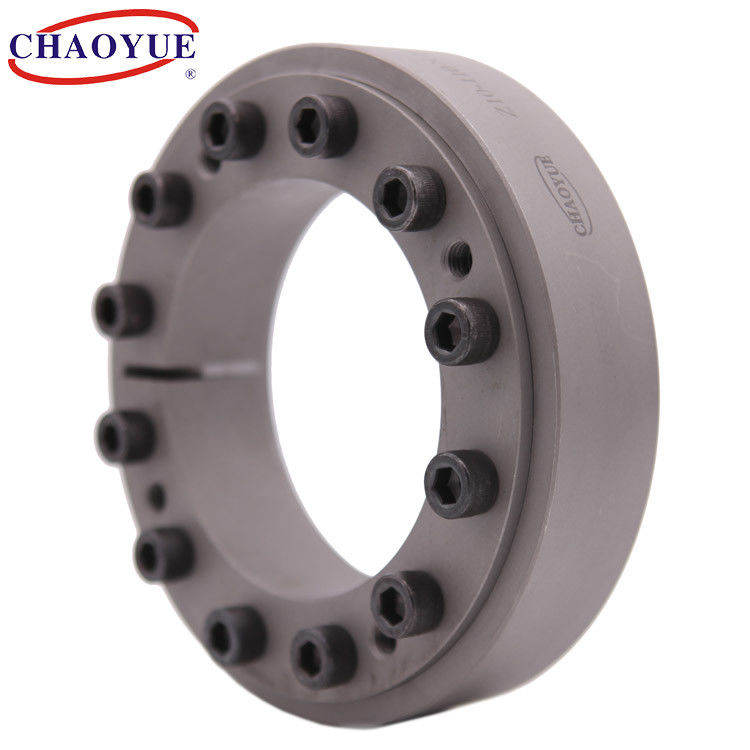

Mounting Example



Z10 Thickness 15mm M5 Bolt Shaft Clamping Elements Shaft Collar Clamp 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 Axial Force
[kN]		 Toruqe
[kN.m]
12 32 10 9 11 1 M5 8 0.038 5 0.06
14 37 12 9 11 1 M5 9 0.052 5 0.08
16 41 14 12 15 1.5 M5 13 0.09 5 0.12
18 44 15 12 15 1.5 M5 10 0.08 5 0.12
18 44 16 12 15 1.5 M5 14 0.112 5 0.12
20 47 17 12 15 1.5 M5 16 0.14 5 0.15
20 47 18 12 15 1.5 M5 20 0.184 5 0.15
24 50 19 14 18 2 M5 17 0.16 5 0.2
24 50 20 14 18 2 M5 20 0.2 5 0.2
24 50 22 14 18 2 M5 25 0.28 5 0.3
30 60 24 16 20 2 M5 23 0.28 5 0.3
30 60 25 16 20 2 M5 25 0.32 5 0.3
30 60 26 16 20 2 M5 27 0.36 5 0.3
36 72 28 18 22 2 M6 37 0.55 12 0.4
36 72 30 18 22 2 M6 43 0.68 12 0.4
36 72 31 18 22 2 M6 46 0.74 12 0.4
44 80 34 20 24 2 M6 41 0.7 12 0.6
44 80 35 20 24 2 M6 44 0.77 12 0.6
44 80 36 20 24 2 M6 47 0.85 12 0.6
50 90 38 22 26 2.5 M6 55 1.1 12 0.8
50 90 40 22 26 2.5 M6 64 1.32 12 0.8
50 90 42 22 26 2.5 M6 72 1.54 12 0.8
55 100 42 23 29 3 M6 54 1.13 12 1.1
55 100 45 23 29 3 M6 66 1.5 12 1.1
55 100 48 23 29 3 M6 77 1.85 12 1.1
62 110 48 23 29 3 M6 69 1.6 12 1.3
62 110 50 23 29 3 M6 77 1.92 12 1.3
62 110 52 23 29 3 M6 84 2.17 12 1.3
68 115 50 23 29 3 M6 73 1.8 12 1.4
68 115 55 23 29 3 M6 90 2.44 12 1.4
68 115 60 23 29 3 M6 103 3.1 12 1.4
75 138 55 25 31 4 M8 97 2.7 29 1.7
75 138 60 25 31 4 M8 117 3.52 29 1.7
75 138 65 25 31 4 M8 133 4.3 29 1.7
80 145 60 25 31 4 M8 108 3.25 29 1.9
80 145 65 25 31 4 M8 121 3.97 29 1.9
80 145 70 25 31 4 M8 133 4.7 29 1.9
90 155 65 30 38 4 M8 145 4.7 29 3.3
90 155 70 30 38 4 M8 170 5.98 29 3.3
90 155 75 30 38 4 M8 190 7.2 29 3.3
