Home ProductsShaft Clamping Elements155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve

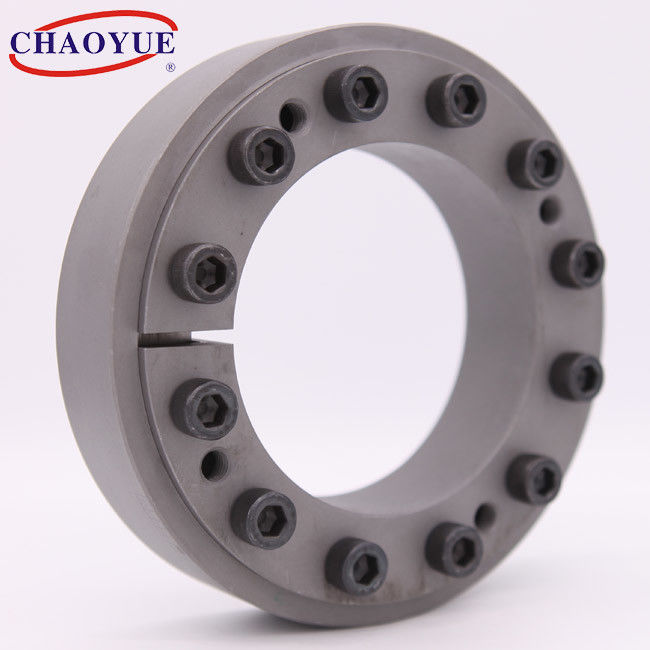

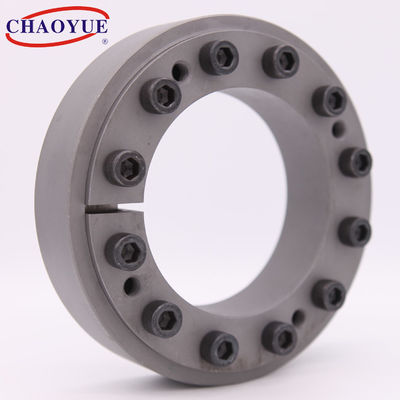

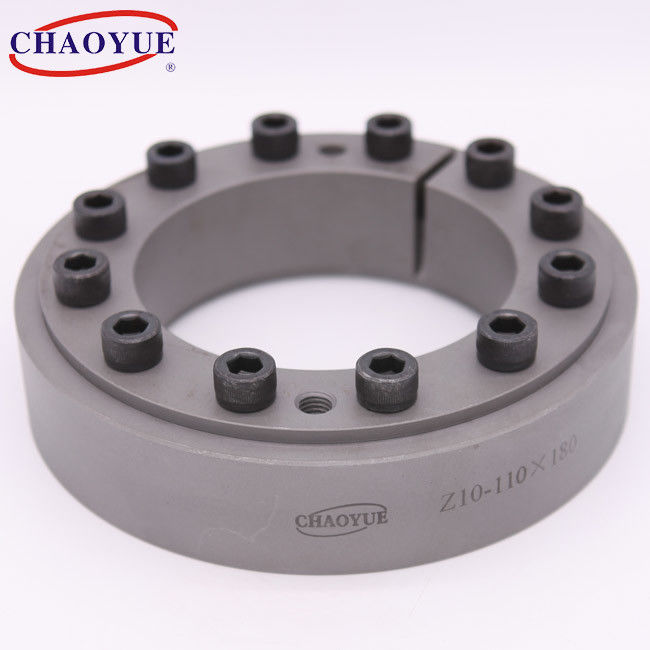

155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve
155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve 155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve

155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z10
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 50.00 - 650.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 100 - 280 Mm Outer Diameter: 170 - 460 Mm
Thickness: 43 - 132 Mm Torque: 5.91 - 269 KN.m
Bolt: M8 - M20 Weight: 4.7 - 102 Kg
Highlight:

155mm diameter keyless shaft coupling

,

50mm length keyless shaft coupling

,

155mm diameter expansion joint sleeve

Product Description

Z10 Bore Size 100mm To 280mm Expansion Device Sleeve



155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve 0





Mounting Example



155mm Diameter 50mm Length Keyless Shaft Coupling Expansion Joint Sleeve 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 Axial Force
[kN]		 Toruqe
[kN.m]
100 170 70 34 43 4 M8 170 5.91 29 4.7
100 170 75 34 43 4 M8 200 7.42 29 4.7
100 170 80 34 43 4 M8 220 8.9 29 4.7
110 185 80 39 49 5 M10 226 9.05 58 5.9
110 185 85 39 49 5 M10 255 10.38 58 5.9
110 185 90 39 49 5 M10 280 12.6 58 5.9
125 215 90 42 53 5.5 M10 280 12.85 58 8.3
125 215 95 42 53 5.5 M10 315 14.98 58 8.3
125 215 100 42 53 5.5 M10 340 17 58 8.3
140 230 100 46 58 6 M12 370 18.5 100 10
140 230 105 46 58 6 M12 400 21.1 100 10
140 230 110 46 58 6 M12 431 23.7 100 10
155 263 110 50 62 6 M12 440 24 100 15
155 263 115 50 62 6 M12 473 27 100 15
155 263 120 50 62 6 M12 508 30.2 100 15
165 290 120 56 68 7 M16 525 34.5 240 22
165 290 125 56 68 7 M16 620 38.6 240 22
165 290 130 56 68 7 M16 660 42.8 240 22
175 300 130 56 68 8 M16 650 42 240 22
175 300 135 56 68 8 M16 680 46.2 240 22
175 300 140 56 68 8 M16 720 50.6 240 22
185 330 140 71 85 8 M16 870 61 240 37
185 330 145 71 85 8 M16 910 66.2 240 37
185 330 150 71 85 8 M16 960 71.7 240 37
200 350 150 71 85 8 M16 1020 77 240 41
200 350 155 71 85 8 M16 1070 82.7 240 41
200 350 160 71 85 8 M16 1100 88.1 240 41
220 370 160 88 103 9 M16 1210 97 240 54
220 370 165 88 103 9 M16 1270 105 240 54
220 370 170 88 103 9 M16 1335 113.5 240 54
240 405 170 92 107 10 M20 1390 118 470 67
240 405 180 92 107 10 M20 1515 136 470 67
240 405 190 92 107 10 M20 1630 154.8 470 67
260 430 190 103 119 10 M20 1700 162 470 82
260 430 200 103 119 10 M20 1820 182 470 82
260 430 210 103 119 10 M20 1930 202.8 470 82
280 460 210 114 132 10 M20 1030 213 470 102
280 460 220 114 132 10 M20 2150 240 470 102
280 460 230 114 132 10 M20 2330 269 470 102
