CHAOYUE One Way Backstop Sprag Type Clutch For Bucket Elevator

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: CK-N
Payment & Shipping Terms:
Minimum Order Quantity: 5 PCs
Price: USD 35.00 - 160.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month

Detail Information

Inner Diameter: 25 - 90 Mm Outer Diameter: 62 - 180 Mm
Thickness: 25 - 50 Mm Overrunning Speed: 500 - 200 Rmp
Torque: 137 - 3900 N.m Weight: 1.8 - 9.5 Kg
High Light:

Backstop Sprag Type Clutch

,

Sprag Type Clutch For Bucket Elevator

,

Backstop clutch one way bearing

Product Description

CK-N BSEU Sprag Overrunning Freewheels Backstop For Bucket Elevator



Type CK-N is sprag type one way clutch integrate without supporting bearing and oil seal, and is suitable to application at low running speed.



While assembly, secured to fixed part of the machine and passing through the slot in the toruqe arm. Provide the rotating stop. Radial clearance on this bolt shoud be equal to 1% of the slot with. The torque arm and the bearing must not be prestressed.



Primarily used as a backstop or indexing clutch in packing and printing. This type provides a high torque capacity with a minimum space requireement.




Mounting Example

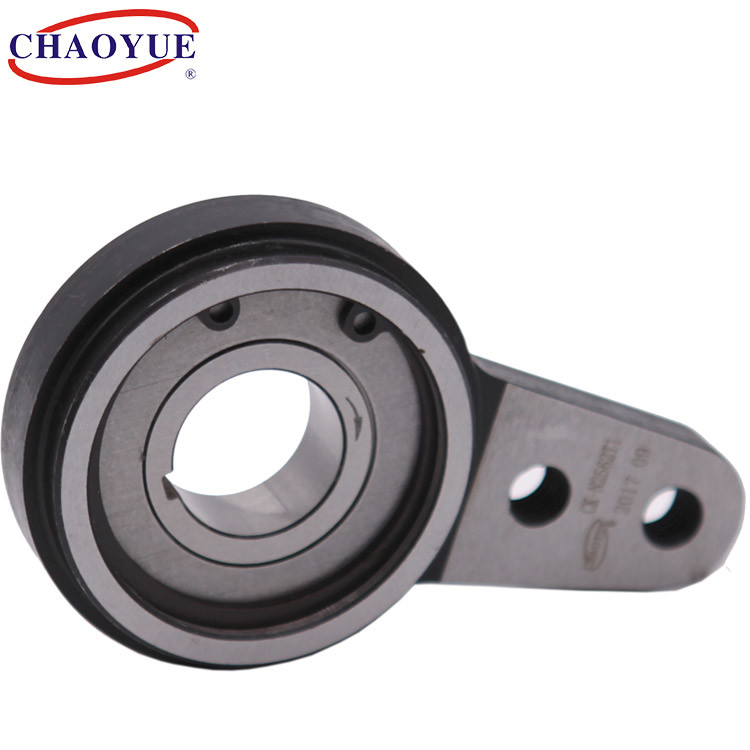

CHAOYUE  One Way Backstop Sprag Type Clutch For Bucket Elevator 0

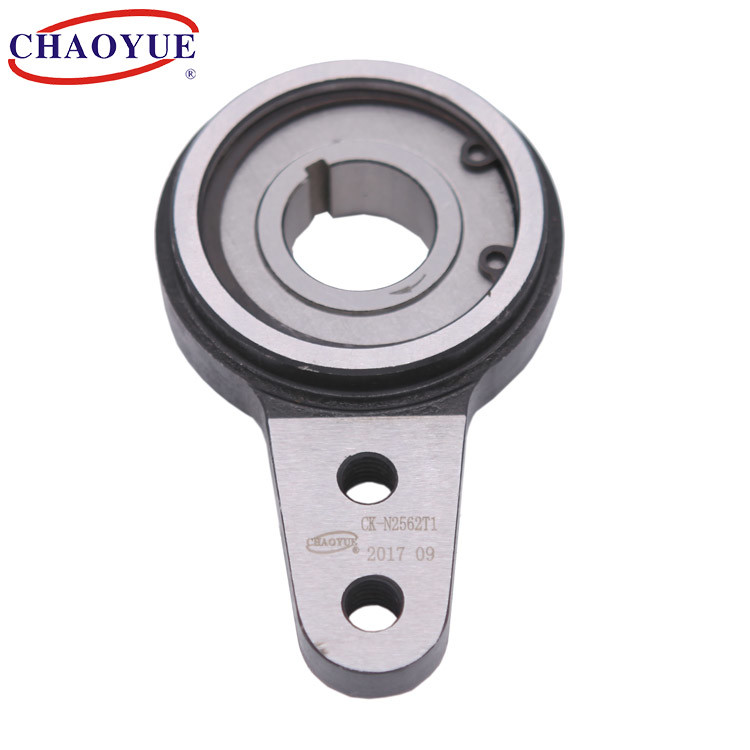

CHAOYUE  One Way Backstop Sprag Type Clutch For Bucket Elevator 1

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

Dimension in Coutour [mm] Weight
[kg]
d
[h7]
D D1 C L L1 L2 L3 H H1 H2
CK-N2562 137 500 25 62 68 16 25 12 34 10 80 73 - 1.8
CK-N25100 435 400 25 100 106 48 32 15 40 18 113 102.5 35 2.5
CK-N30100 435 400 30 100 106 48 32 15 40 18 113 102.5 35 2.4
CK-N35100 435 400 35 100 106 48 32 15 40 18 113 102.5 35 2.3
CK-N40125 1035 300 40 125 132 52 36 15 60 18 125 115 35 4.0
CK-N45125 1035 300 45 125 132 52 36 15 60 18 125 115 35 3.9
CK-N50125 1035 300 50 125 132 52 36 15 60 18 125 115 35 3.8
CK-N55125 1035 300 55 125 132 52 36 15 60 18 125 115 35 3.7
CK-N60150 1290 250 60 150 161 54 40 15 70 18 140 130 35 6.2
CK-N70150 1290 250 70 150 161 54 40 15 70 18 140 130 35 6.1
CK-N80180 3900 200 80 180 190 70 50 20 70 25 165 150 30 9.6
CK-N90180 3900 200 90 180 190 70 50 20 70 25 165 150 30 9.5
