62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery

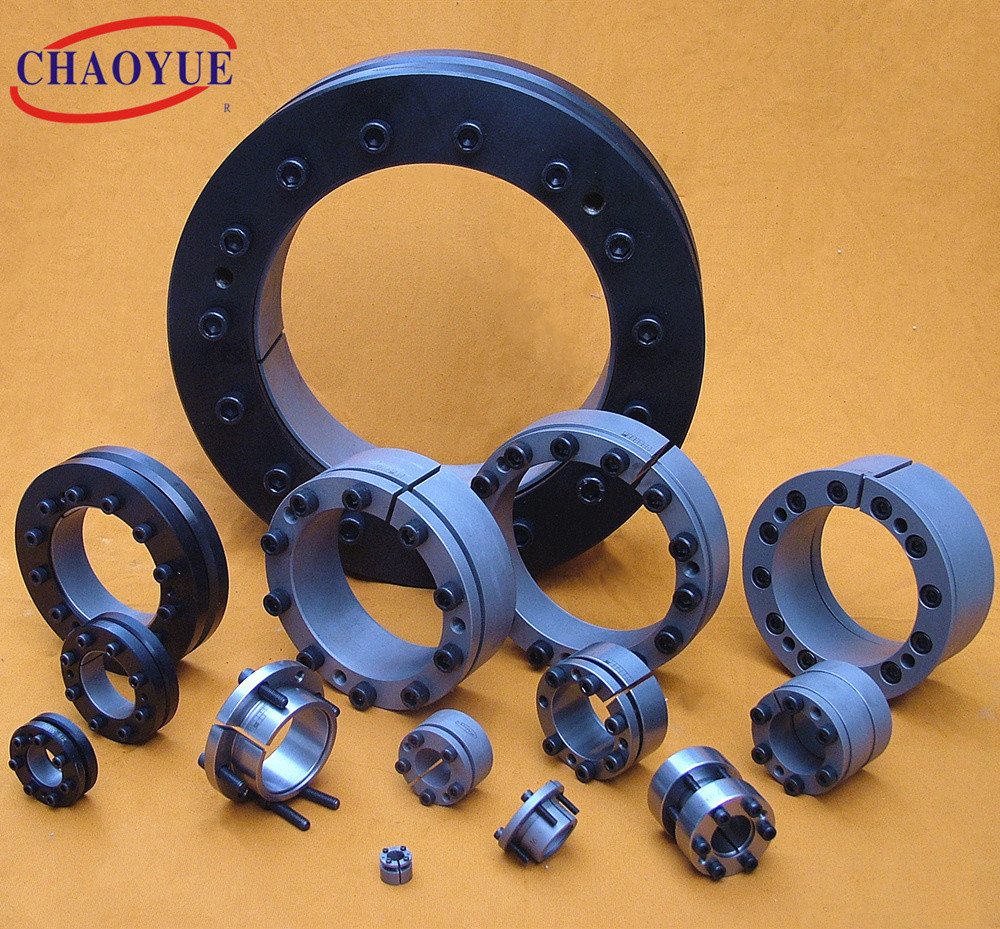

62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery 62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery

62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 35.00 - 1600.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Torque: 11.5 - 1225 KN.m Weight: 6 - 320 KG
Highlight:

62mm height keyless hub shaft locking devices

,

32.5kN.m keyless hub shaft locking devices

,

62mm height sleeve type expansion joint

Product Description

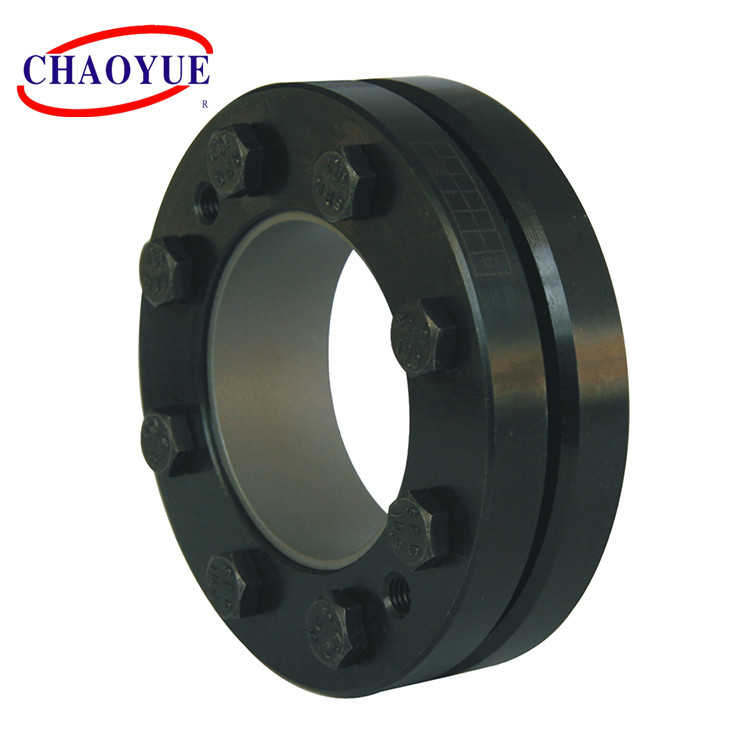

Z7A Machinery Keyless Shaft Power Locking Device Assembly





Mounting Example

62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery 0



62mm Height 32.5kN.M Keyless Hub Shaft Locking Devices For Machinery 1

Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 n Axial Force
[kN]		 Toruqe
[kN.m]
125 185 95 39 52 6 M10 8 242 11.5 58 6
125 185 100 39 52 6 M10 8 260 13 58 6
125 185 105 39 52 6 M10 8 276 14.5 58 6
140 220 110 39 52 6 M10 10 391 16 58 8
140 220 120 39 52 6 M10 10 330 20 58 8
140 220 125 39 52 6 M10 10 352 22 58 8
155 245 130 39 52 6 M10 12 385 25 58 10
155 245 135 39 52 6 M10 12 427 28.8 58 10
155 245 140 39 52 6 M10 12 464 32.5 58 10
165 260 135 46 62 8 M12 10 474 32 100 14
165 260 140 46 62 8 M12 10 507 32.5 100 14
165 260 145 46 62 8 M12 10 538 39 100 14
175 275 145 46 62 8 M12 10 538 39 100 16
175 275 150 46 62 8 M12 10 573 43 100 16
175 275 155 46 62 8 M12 10 606 47 100 16
185 295 155 46 62 8 M12 12 632 49 100 20
185 295 160 46 62 8 M12 12 662 53 100 20
185 295 165 46 62 8 M12 12 691 57 100 20
195 315 165 56 72 8 M12 15 800 66 100 27
195 315 170 56 72 8 M12 15 835 71 100 27
195 315 175 56 72 8 M12 15 869 76 100 27
220 345 180 66 84 9 M16 9 978 88 240 35
220 345 190 66 84 9 M16 9 1063 101 240 35
220 345 200 66 84 9 M16 9 1140 114 240 35
240 370 200 66 84 9 M16 12 1200 120 240 44
240 370 210 66 84 9 M16 12 1276 134 240 44
240 370 215 66 84 9 M16 12 1312 141 240 44
260 395 220 72 92 9 M16 12 1309 144 240 48
260 395 230 72 92 9 M16 12 1384 159 240 48
260 395 235 72 92 9 M16 12 1421 167 240 48
280 425 230 84 104 10 M16 15 1478 170 240 60
280 425 240 84 104 10 M16 15 1583 190 240 60
280 425 250 84 104 10 M16 15 1680 210 240 60
300 460 250 84 104 10 M16 16 1704 213 240 75
300 460 260 84 104 10 M16 16 1800 234 240 75
300 460 270 84 104 10 M16 16 1889 255 240 75
320 495 270 84 106 11 M16 18 1955 264 240 84
320 495 280 84 106 11 M16 18 2036 285 240 84
320 495 290 84 106 11 M16 18 2076 301 240 84
340 535 290 84 106 11 M16 20 2193 318 240 100
340 535 300 84 106 11 M16 20 2300 345 240 100
340 535 305 84 106 11 M16 20 2354 359 240 100
360 555 300 100 122 11 M20 15 2547 382 470 125
360 555 310 100 122 11 M20 15 2645 410 470 125
360 555 320 100 122 11 M20 15 2738 438 470 125
390 595 330 112 136 12 M20 18 3091 510 470 156
390 595 340 112 136 12 M20 18 3194 543 470 156
390 595 350 112 136 12 M20 18 3291 576 470 156
420 630 350 120 144 12 M20 20 3371 590 470 185
420 630 360 120 144 12 M20 20 3500 630 470 185
420 630 370 120 144 12 M20 20 3620 670 470 185
460 685 390 132 158 13 M20 24 3949 770 470 235
460 685 400 132 158 13 M20 24 4300 860 470 230
460 685 410 132 158 13 M20 24 4634 950 470 235
500 750 420 152 178 13 M20 30 4881 1025 470 320
500 750 430 152 178 13 M20 30 5233 1125 470 320
500 750 440 152 178 13 M20 30 5568 1225 470 320
