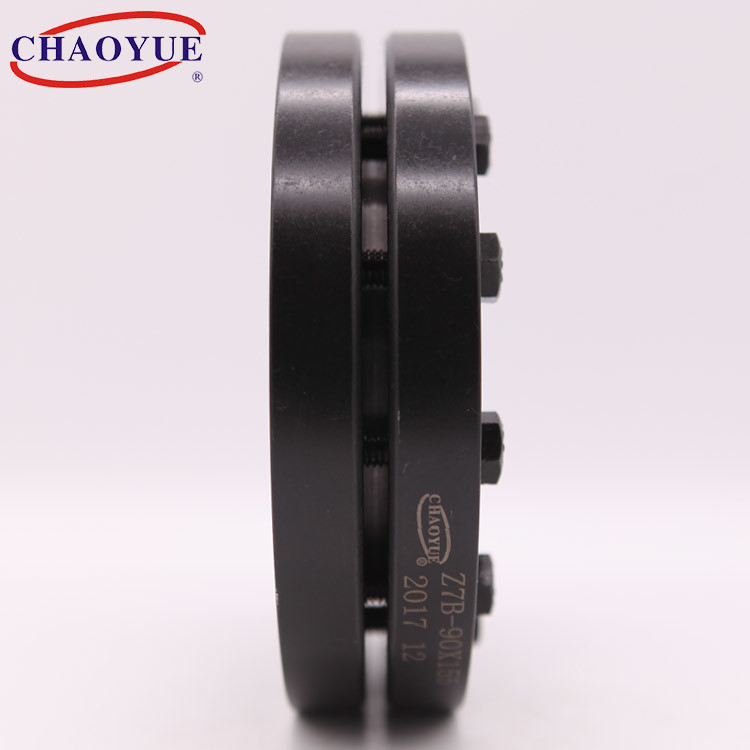

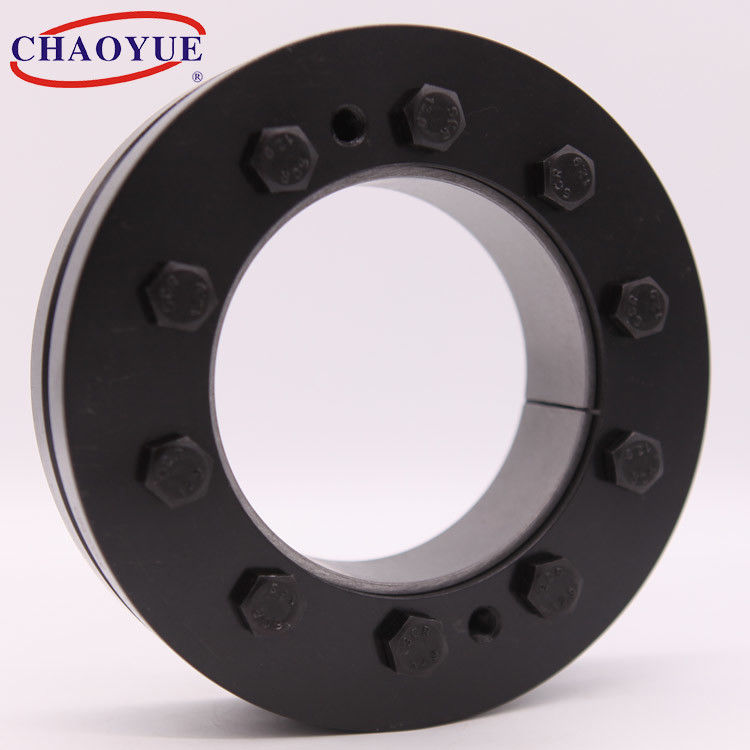

572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment
572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment 572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment

572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 65.00 - 1020.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 140 - 360 Mm Outer Diameter: 230 - 590 Mm
Thickness: 58 - 159 Mm Torque: 15.1 - 572 KN.m
Bolt: M12 - M20 Weight: 10 - 204 Kg
Highlight:

572kN.m Torque shaft locking clamp

,

360mm ID shaft locking clamp

,

572kN.m Torque expansion joint sleeve

Product Description

Z7B Clamping elements 140 mm to 360 mm shaft locking assembly



572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment 0



Mounting Example

572kN.M Torque 360mm ID Shaft Locking Clamp For Mechanical Equipment 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 n Axial Force
[kN]		 Toruqe
[kN.m]
140 230 95 46 58 7 M12 10 317 15.1 100 10
140 230 100 46 58 7 M12 10 352 17.6 100 10
140 230 105 46 58 7 M12 10 382 20.1 100 10
155 263 105 50 62 7 M12 12 419 22 100 15
155 263 110 50 62 7 M12 12 454 25 100 15
155 263 115 50 62 7 M12 12 487 28 100 15
165 290 115 56 68 7 M16 8 539 31 240 22
165 290 120 56 68 7 M16 8 583 35 240 22
165 290 125 56 68 7 M16 8 624 39 240 22
175 300 125 56 68 7 M16 8 640 40 240 22
175 300 130 56 68 7 M16 8 677 44 240 22
175 300 135 56 68 7 M16 8 711 48 240 22
185 330 135 71 85 8 M16 10 815 55 240 37
185 330 140 71 85 8 M16 10 857 60 240 37
185 330 145 71 85 8 M16 10 896 65 240 37
195 350 140 71 85 8 M16 12 928 65 240 41
195 350 150 71 85 8 M16 12 1013 76 240 41
195 350 155 71 85 8 M16 12 1052 81.5 240 41
200 350 150 71 85 8 M16 12 1040 78 240 41
200 350 155 71 85 8 M16 12 1084 84 240 41
200 350 160 71 85 8 M16 12 1125 90 240 41
220 370 160 88 103 10 M16 15 1250 100 240 54
220 370 165 88 103 10 M16 15 1309 108 240 54
220 370 170 88 103 10 M16 15 1365 116 240 54
240 405 170 92 107 10 M20 12 1412 120 470 67
240 405 180 92 107 10 M20 12 1533 138 470 67
240 405 190 92 107 10 M20 12 1642 156 470 67
260 430 190 103 119 10 M20 12 1726 164 470 82
260 430 200 103 119 10 M20 12 1840 184 470 82
260 430 210 103 119 10 M20 12 1943 204 470 82
280 460 210 114 132 12 M20 15 2062 217 470 102
280 460 220 114 132 12 M20 15 2227 245 470 102
280 460 230 114 132 12 M20 15 2374 273 470 102
300 485 230 122 140 12 M20 16 2278 262 470 118
300 485 240 122 140 12 M20 16 2442 293 470 118
300 485 245 122 140 12 M20 16 2514 308 470 118
320 520 240 122 140 12 M20 18 2550 306 470 131
320 520 250 122 140 12 M20 18 2720 340 470 131
320 520 250 122 140 12 M20 18 2877 394 470 131
340 570 250 134 155 12 M20 24 3152 394 470 186
340 570 260 134 155 12 M20 24 3308 430 470 186
340 570 270 134 155 12 M20 24 3452 466 470 186
350 590 270 140 159 12 M20 24 3393 458 470 204
350 590 280 140 159 12 M20 24 3572 500 470 204
350 590 285 140 159 12 M20 24 3656 521 470 204
360 590 280 140 159 12 M20 24 3622 507 470 204
360 590 290 140 159 12 M20 24 3793 550 470 204
360 590 295 140 159 12 M20 24 3878 572 470 204
