Home ProductsShaft Clamping Elementsbolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load
bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load
bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load

bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 1165.00 - 8900.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 2 - 5 weeks
Payment Terms: T/T
Supply Ability: 100 pcs per month
Contact Now

Detail Information
Inner Diameter: 380 - 900 Mm Outer Diameter: 645 - 1480 Mm
Thickness: 163 - 370 Mm Torque: 590 - 21840 KN.m
Bolt: M24 - M33 Weight: 239 - 2930
Highlight:

bolt M27 Shaft Clamping Elements

,

Inner Size 900mm Shaft Clamping Elements

,

bolt M27 collar shaft clamp

Product Description

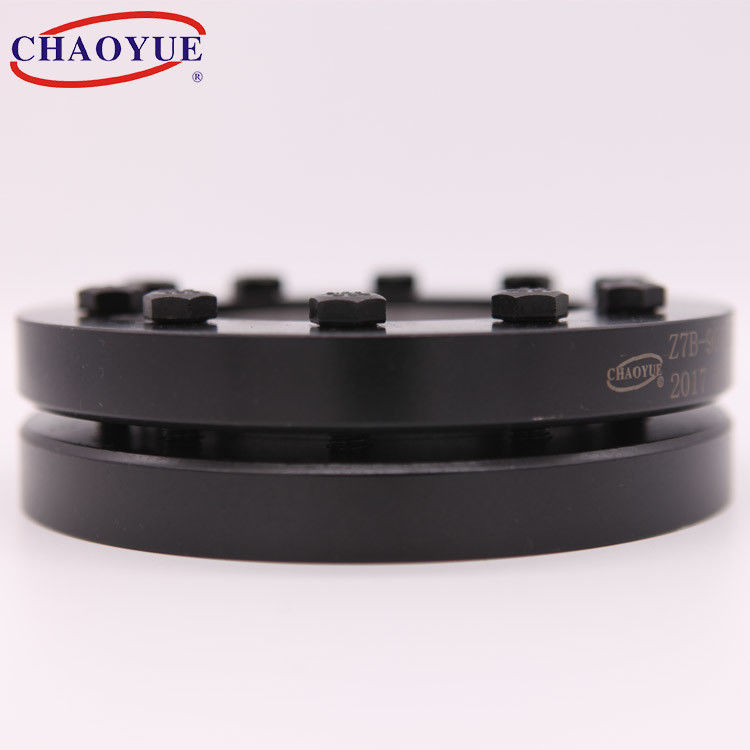

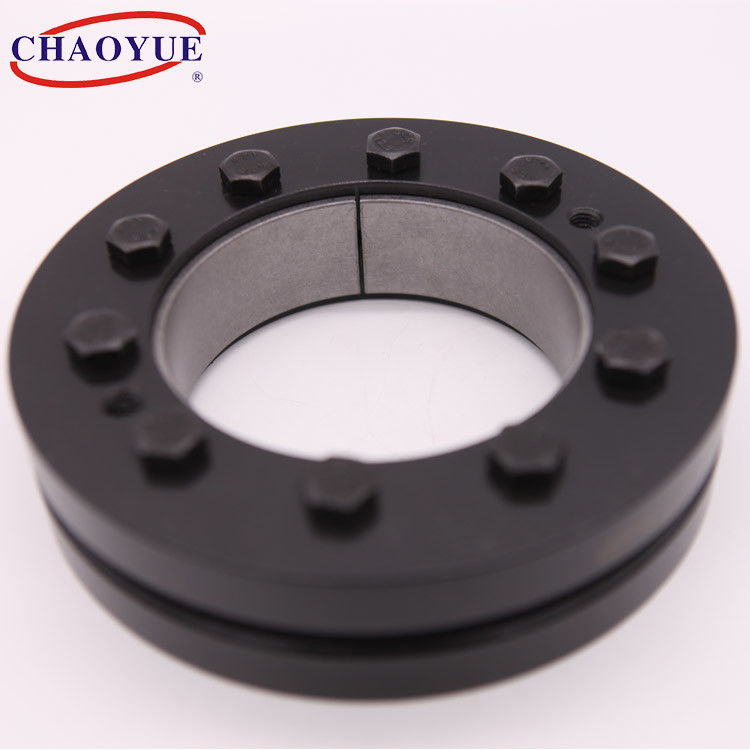

Z7B Shaft Hub Inner Size 380mm To 900mm Locking Device



bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load 0



Mounting Example

bolt M27 Inner Size 900mm Shaft Clamping Elements Heavy Load 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 n Axial Force
[kN]		 Toruqe
[kN.m]
380 645 290 144 163 12 M24 18 4069 590 820 239
380 645 300 144 163 12 M24 18 4267 640 820 239
380 645 310 144 163 12 M24 18 4452 690 820 239
390 660 300 144 163 12 M24 20 4400 660 820 260
390 660 310 144 163 12 M24 20 4580 710 820 260
390 660 320 144 163 12 M24 20 4750 760 820 260
420 690 330 164 184 12 M24 20 4727 780 820 316
420 690 340 164 184 12 M24 20 4940 840 820 316
420 690 350 164 184 12 M24 20 5143 900 820 316
440 750 340 172 192 12 M24 24 5235 890 820 408
440 750 350 172 192 12 M24 24 5486 960 820 408
440 750 360 172 192 12 M24 24 5722 1030 820 408
460 770 360 172 192 12 M24 24 5556 1000 820 420
460 770 370 172 192 12 M24 24 5784 1070 820 420
460 770 380 172 192 12 M24 24 6000 1140 820 420
480 800 380 188 213 15 M24 28 6316 1200 820 505
480 800 390 188 213 15 M24 28 6513 1270 820 505
480 800 400 188 213 15 M24 28 6700 1340 820 505
500 850 400 188 213 15 M24 24 7200 1440 1100 575
500 850 410 188 213 15 M24 24 7415 1520 1100 575
500 850 420 188 213 15 M24 24 7619 1600 1100 575
530 910 430 213 238 15 M27 30 8465 1820 1100 746
530 910 440 213 238 15 M27 30 8818 1940 1100 746
530 910 450 213 238 15 M27 30 9156 2060 1100 746
560 940 450 213 238 15 M27 30 8889 2000 1100 775
560 940 460 213 238 15 M27 30 9261 2130 1100 775
560 940 470 213 238 15 M27 30 9617 2260 1100 775
590 980 470 228 260 18 M27 36 9574 2250 1100 900
590 980 480 228 260 18 M27 36 10000 2400 1100 900
590 980 490 228 260 18 M27 36 10410 2550 1100 900
620 1020 500 254 286 18 M30 30 10800 2700 1640 1080
620 1020 510 254 286 18 M30 30 11220 2860 1640 1080
620 1020 520 254 286 18 M30 30 11620 3020 1640 1080
660 1070 530 260 292 18 M30 30 11700 3100 1640 1190
660 1070 540 260 292 18 M30 30 12150 3280 1640 1190
660 1070 550 260 292 18 M30 30 12580 3460 1640 1190
700 1180 560 260 292 18 M30 36 12320 3450 1640 1515
700 1180 575 260 292 18 M30 36 12870 3700 1640 1515
700 1180 590 260 292 18 M30 36 13390 3950 1640 1515
750 1250 600 278 310 18 M30 40 14670 4400 1640 1785
750 1250 615 278 310 18 M30 40 15280 4700 1640 1785
750 1250 630 278 310 18 M30 40 15870 5000 1640 1785
800 1370 645 296 334 20 M30 45 16740 5400 1640 2390
800 1370 660 296 334 20 M30 45 17420 5750 1640 2390
800 1370 670 296 334 20 M30 45 18070 6100 1640 2390
900 1480 720 332 370 20 M33 40 20000 7200 2200 2930
900 1480 740 332 370 20 M33 40 20950 7750 2200 2930
900 1480 760 332 370 20 M33 40 21840 8300 2200 2930
