Home ProductsShaft Clamping ElementsBlack 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices
Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices
Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices

Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: USD 70.00 - 3060.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 2 - 5 weeks
Payment Terms: T/T
Supply Ability: 500 pcs per month
Contact Now

Detail Information
Inner Diameter: 140 - 500 Mm Outer Diameter: 230 - 850 Mm
Thickness: 74 - 274 Mm Torque: 20.7 - 2080 KN.m
Bolt: M12 - M27 Weight: 13 - 750 Kg
Highlight:

370mm outder diameter tapered shaft lock

,

130kN.m tapered shaft lock

,

130kN.m shaft locking assemblies

Product Description

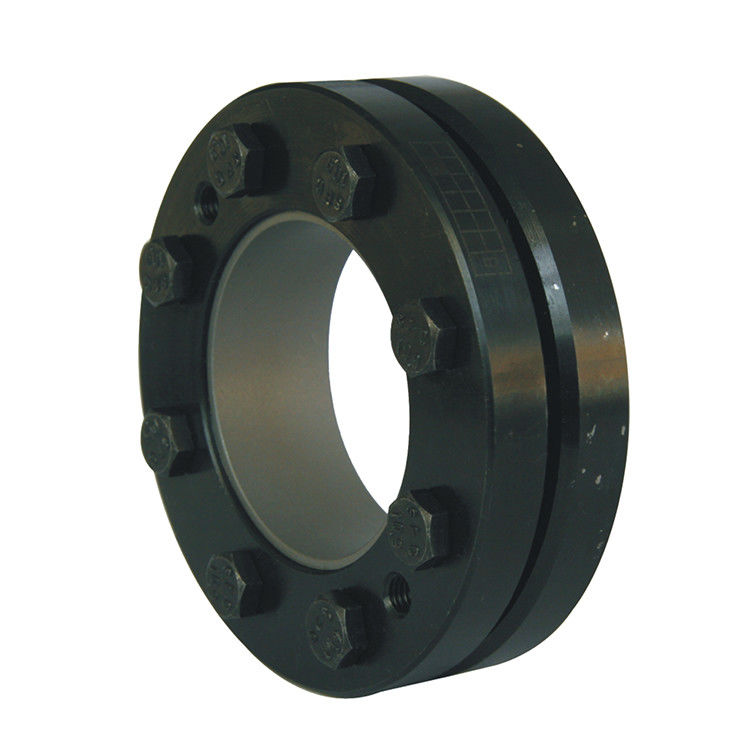

Z7C Shaft Power Lock Device Clamping Element Assembly



Mounting Example

Black 130kN.M 370mm Outder Diameter Tapered Shaft Lock Devices 0





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D dw L H e d1 n Axial Force
[kN]		 Toruqe
[kN.m]
140 230 95 60 74 7 M12 12 436 20.7 100 13
140 230 100 60 74 7 M12 12 480 24 100 13
140 230 105 60 74 7 M12 12 518 27.2 100 13
155 263 105 66 80 7 M12 15 545 28.6 100 20
155 263 110 66 80 7 M12 15 591 32.5 100 20
155 263 115 66 80 7 M12 15 633 36.4 100 20
165 290 115 72 88 8 M16 10 701 40.3 240 26
165 290 120 72 88 8 M16 10 758 45.5 240 26
165 290 125 72 88 8 M16 10 811 50.7 240 26
175 300 125 72 88 8 M16 10 832 52 240 29
175 300 130 72 88 8 M16 10 880 57.2 240 29
175 300 135 72 88 8 M16 10 924 62.4 240 29
185 330 135 92 112 10 M16 15 1037 70 240 47
185 330 140 92 112 10 M16 15 1100 77 240 47
185 330 145 92 112 10 M16 15 1159 84 240 47
200 350 145 92 112 10 M16 15 1291 93 240 50
200 350 150 92 112 10 M16 15 1353 101.5 240 50
200 350 155 92 112 10 M16 15 1409 109.2 240 50
220 370 160 114 134 10 M16 20 1625 130 240 65
220 370 165 114 134 10 M16 20 1703 140.5 240 65
220 370 170 114 134 10 M16 20 1776 151 240 65
240 405 170 120 144 12 M20 15 1835 156 470 87
240 405 180 120 144 12 M20 15 1994 179.5 470 87
240 405 190 120 144 12 M20 15 2137 203 470 87
260 430 190 136 160 12 M20 16 2242 213 470 100
260 430 200 136 160 12 M20 16 2390 239 470 100
260 430 210 136 160 12 M20 16 2542 265 470 100
280 460 210 148 172 12 M20 20 2686 282 470 132
280 460 220 148 172 12 M20 20 2900 319 470 132
280 460 230 148 172 12 M20 20 3087 355 470 132
300 485 230 152 176 12 M20 20 2965 341 470 140
300 485 240 152 176 12 M20 20 3175 381 470 140
300 485 245 152 176 12 M20 20 3273 401 470 140
320 520 240 160 184 12 M20 24 3317 398 470 165
320 520 250 160 184 12 M20 24 3536 442 470 165
320 520 260 160 184 12 M20 24 3738 486 470 165
340 570 250 176 200 12 M24 20 4080 510 820 240
340 570 260 176 200 12 M24 20 4307 560 820 240
340 570 270 176 200 12 M24 20 4519 610 820 240
360 590 280 180 204 12 M24 20 4707 659 820 250
360 590 290 180 204 12 M24 20 4931 715 820 250
360 590 295 180 204 12 M24 20 5044 744 820 250
390 660 300 188 212 12 M24 24 5733 860 820 350
390 660 310 188 212 12 M24 24 5903 915 820 350
390 660 320 188 212 12 M24 24 6063 970 820 350
420 690 330 214 238 12 M24 28 6182 1020 820 410
420 690 340 214 238 12 M24 28 6470 1100 820 410
420 690 350 214 238 12 M24 28 6743 1180 820 410
460 770 360 224 252 14 M27 24 7222 1300 1210 540
460 770 370 224 252 14 M27 24 7514 1390 1210 540
460 770 380 224 252 14 M27 24 7789 1480 1210 540
500 850 400 246 274 14 M27 30 9400 1880 1210 750
500 850 410 246 274 14 M27 30 9659 1980 1210 750
500 850 420 246 274 14 M27 30 9905 2080 1210 750
