Home ProductsShaft Clamping ElementsLength 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load
Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load
Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load

Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load

Product Details:
Place of Origin: Shaanxi, China
Brand Name: CHAOYUE
Model Number: Z7D
Payment & Shipping Terms:
Minimum Order Quantity: 5 pc
Price: USD 10.00 - 40.00 / pc
Packaging Details: Carton box or wooden case depends on the size of products
Delivery Time: 1 - 3 weeks
Payment Terms: T/T
Supply Ability: 1000 pcs per month
Contact Now

Detail Information
Inner Diameter: 15 - 90 Mm Outer Diameter: 45 - 135 Mm
Thickness: 50 - 100 Mm Torque: 140 - 5930 N.m
Bolt: M6 - M10 Weight: 0.4 - 7.4 Kg
Highlight:

length 66mm Shaft Clamping Elements

,

Outer diameter 55mm Shaft Clamping Elements

,

Outer diameter 55mm threaded clamp collar

Product Description

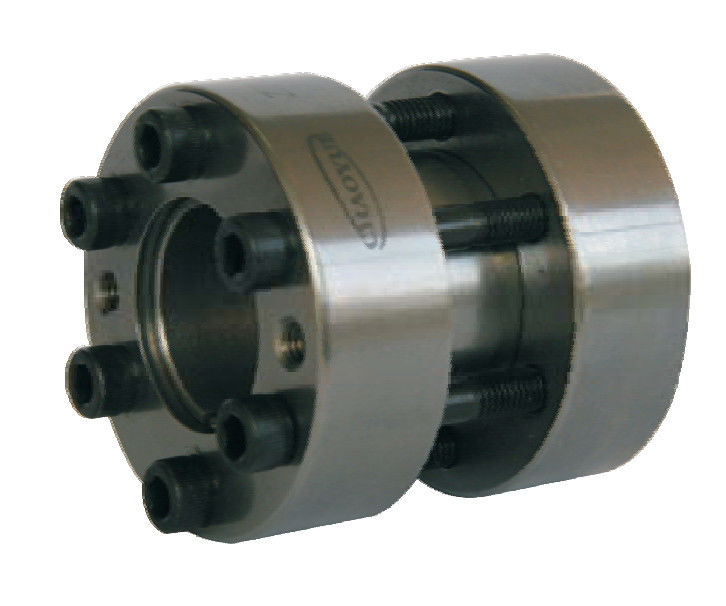

Z7D Keyless Shaft Clamping Elements Locking Assembly

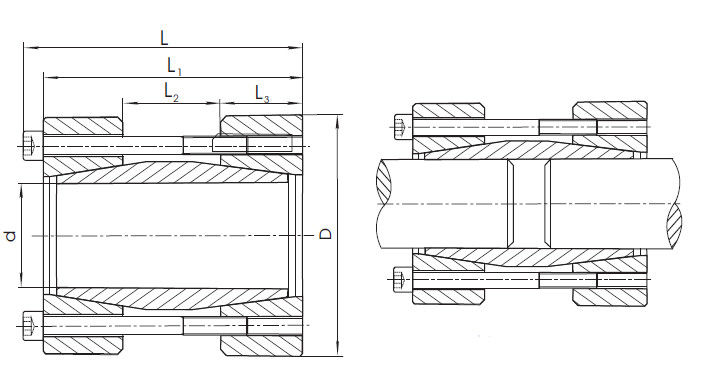

Mounting Example



Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load 0

Length 66mm Outer Diameter 55mm Shaft Clamping Elements Light Load 1





Fundamental Dimension [mm] Bolt Rated Load Torque of Tighten Bolt
[N.m]		 Weight
[kg]
d D L L1 L2 L3 d1 n Axial Force
[kN]		 Toruqe
[N.m]
15 45 56 50 16 17 M6 4 19 140 17 0.4
16 45 56 50 16 17 M6 4 20 160 17 0.38
17 45 56 50 16 17 M6 4 21 180 17 0.37
18 50 56 50 16 17 M6 4 20 180 17 0.5
19 50 56 50 16 17 M6 4 21 200 17 0.49
20 50 56 50 16 17 M6 4 22 220 17 0.47
22 55 66 60 20 20 M6 6 29 320 17 0.45
24 55 66 60 20 20 M6 6 32 390 17 0.4
25 55 66 60 20 20 M6 6 33 420 17 0.38
28 60 66 60 20 20 M6 6 31 440 17 0.91
30 300 130 72 88 8 M16 10 880 57.2 240 29
32 300 135 72 88 8 M16 10 924 62.4 240 29
35 330 135 92 112 10 M16 15 1037 70 240 47
38 330 140 92 112 10 M16 15 1100 77 240 47
40 330 145 92 112 10 M16 15 1159 84 240 47
42 350 145 92 112 10 M16 15 1291 93 240 50
45 350 150 92 112 10 M16 15 1353 101.5 240 50
48 350 155 92 112 10 M16 15 1409 109.2 240 50
50 370 160 114 134 10 M16 20 1625 130 240 65
55 370 165 114 134 10 M16 20 1703 140.5 240 65
60 370 170 114 134 10 M16 20 1776 151 240 65
65 405 170 120 144 12 M20 15 1835 156 470 87
68 405 180 120 144 12 M20 15 1994 179.5 470 87
70 405 190 120 144 12 M20 15 2137 203 470 87
75 430 190 136 160 12 M20 16 2242 213 470 100
80 430 200 136 160 12 M20 16 2390 239 470 100
85 430 210 136 160 12 M20 16 2542 265 470 100
90 460 210 148 172 12 M20 20 2686 282 470 132
